En-15
(1) Turn on the power of the outdoor unit and enter standby mode.
When system is normal
POWER/MODE lamp lights up. (ERROR lamp is off.)
POWER/MODE lamp:
ON
ERROR lamp: OFF
SELECT button
ENTER button
MODE/EXIT button
POWER
LED105 LED104
ERROR
MODE
LED101
(GREEN)
MODE
/EXIT
SELECT ENTER
SW107
SW108 SW109
LED102
(RED)
7 segment display:
turn off
• When system is abnormal
Check the settings as there is an error in the settings for outdoor unit address
(DIP switch SET 3-1, 2) or number of connected slave units (DIP switch SET 3-3, 4).
POWER/MODE lamp:
ON
7 segment display:
“-” display
ERROR lamp:
Blinking
POWER
LED105 LED104
ERROR
MODE
LED101
(GREEN)
MODE
/EXIT
SELECT ENTER
SW107 SW108 SW109
LED102
(RED)

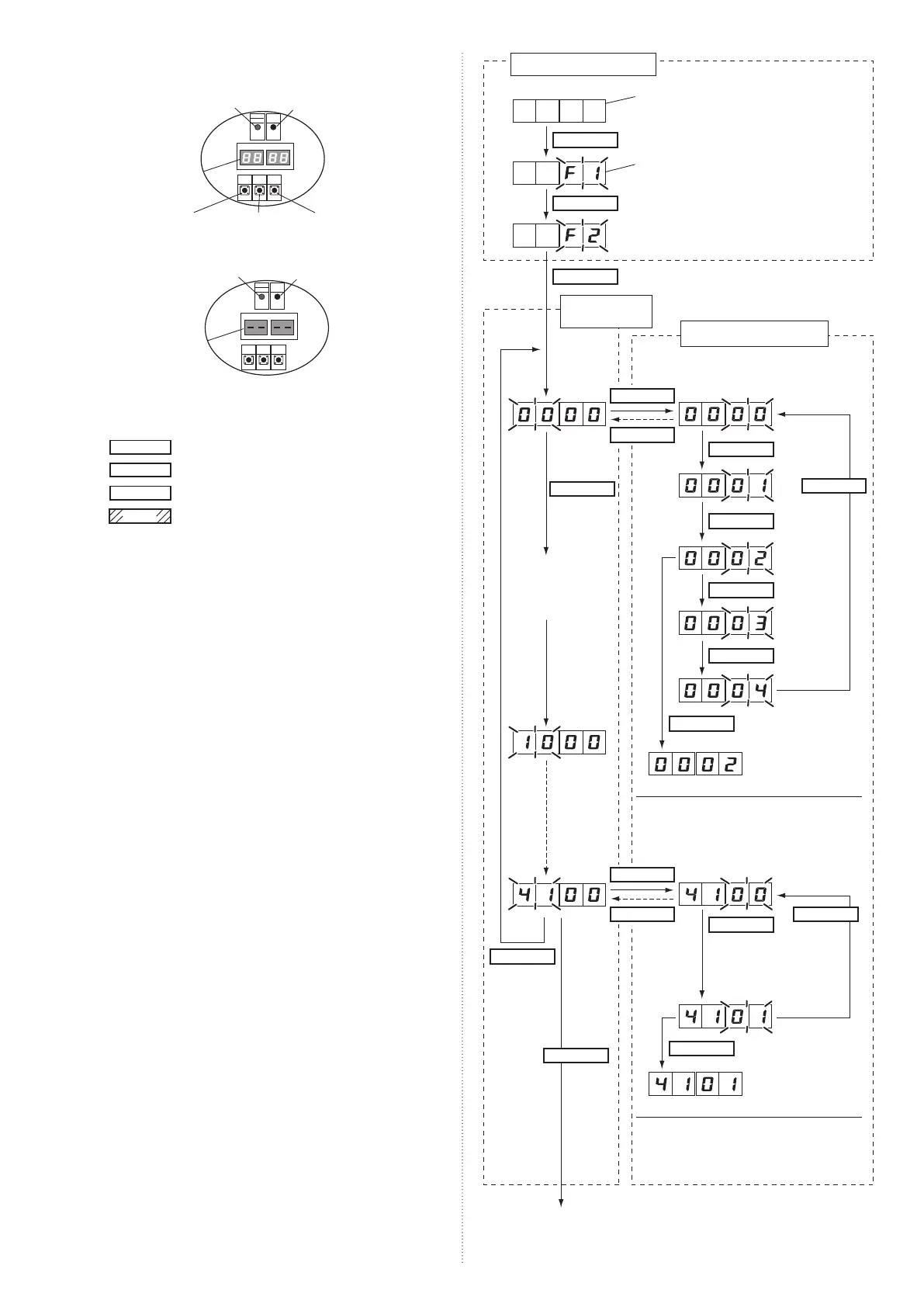

(2) Setting method
MODE/EXIT
SELECT
ENTER
ENTER
: Press the “MODE/EXIT” button.
: Press the “SELECT” button.
: Press the “ENTER” button.
: Press the “ENTER” button for more than 3 seconds.
Use the “MODE/EXIT”, “SELECT”, and “ENTER” buttons to con gure settings
according to the procedures below.
(If no setting is made, the factory default setting will be displayed.)
1: Function setting
7 segment LED display
(LED 105, LED 104)
(Flashing)
First 2 digits
Last 2 digits
(When [F3] to [F9] are displayed, continue to press
the “SELECT” button until [F2] is displayed.)
2: Setting the
rst 2 digits
3: Setting the last 2 digits
Continue to press the “SELECT” button
until the desired number appears at the
last 2 digits.
Every press of the
“SELECT” button will
change the setting
number for the rst 2
digits.
(Continue to press the
“SELECT” button until the
desired number appears at
the last 2 digits.)
Setting is complete when the lamp lights up
Press “ENTER” button to return to “2. Setting
the first 2 digits” (If there is no operation for 5
seconds after the setting, the display will return
to “2: Setting the first 2 digits”.)
Setting is complete when the lamp lights up
Press “ENTER” button to return to “2. Setting the
rst 2 digits” (If there is no operation for 5 seconds
after the setting, the display will return to
“2: Setting the rst 2 digits”.)
EXIT: Press the “MODE/EXIT” button to cancel the setting mode.
MODE/EXIT
SELECT
ENTER
ENTER
MODE/EXIT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
ENTER
MODE/EXIT
MODE/EXIT
ENTER
ENTER
ENTER
ENTER
MODE/EXIT
SELECT
9380545095_IM.indb 159380545095_IM.indb 15 11/17/2015 4:14:29 PM11/17/2015 4:14:29 PM
