Fujitsu AOU36RLX - Page 70

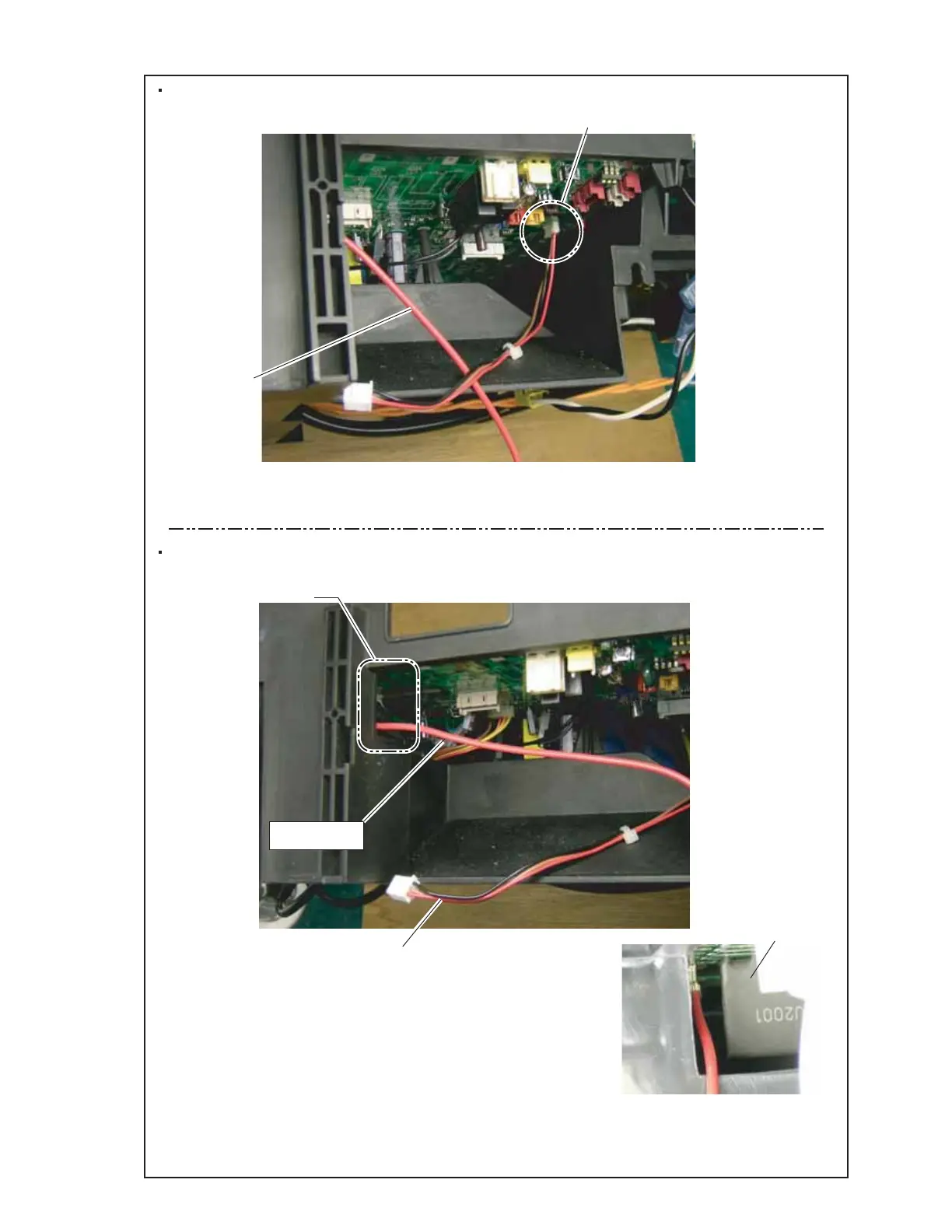

As shown in Fig.6, pull out the wires.
As shown in Fig.7, pull out the wires.
03-11
Fig. 6
Fig. 7
W200 (Red)
CN1
CN1 wire with connector
W200 (Red)
A
DETAIL - A
HYIC1
Don't come in contact with HYIC1.
