WARNING
Disconnect switch for over current protection given in the table below is to be installed
between the indoor unit and the outdoor unit.
Disconnect switch
15A
CAUTION
Be sure to refer the preceding diagram and do the correct fi eld wiring.
Wrong wiring causes malfunction of the unit.
Check local electrical codes and also any specifi c wiring instructions or limitation.

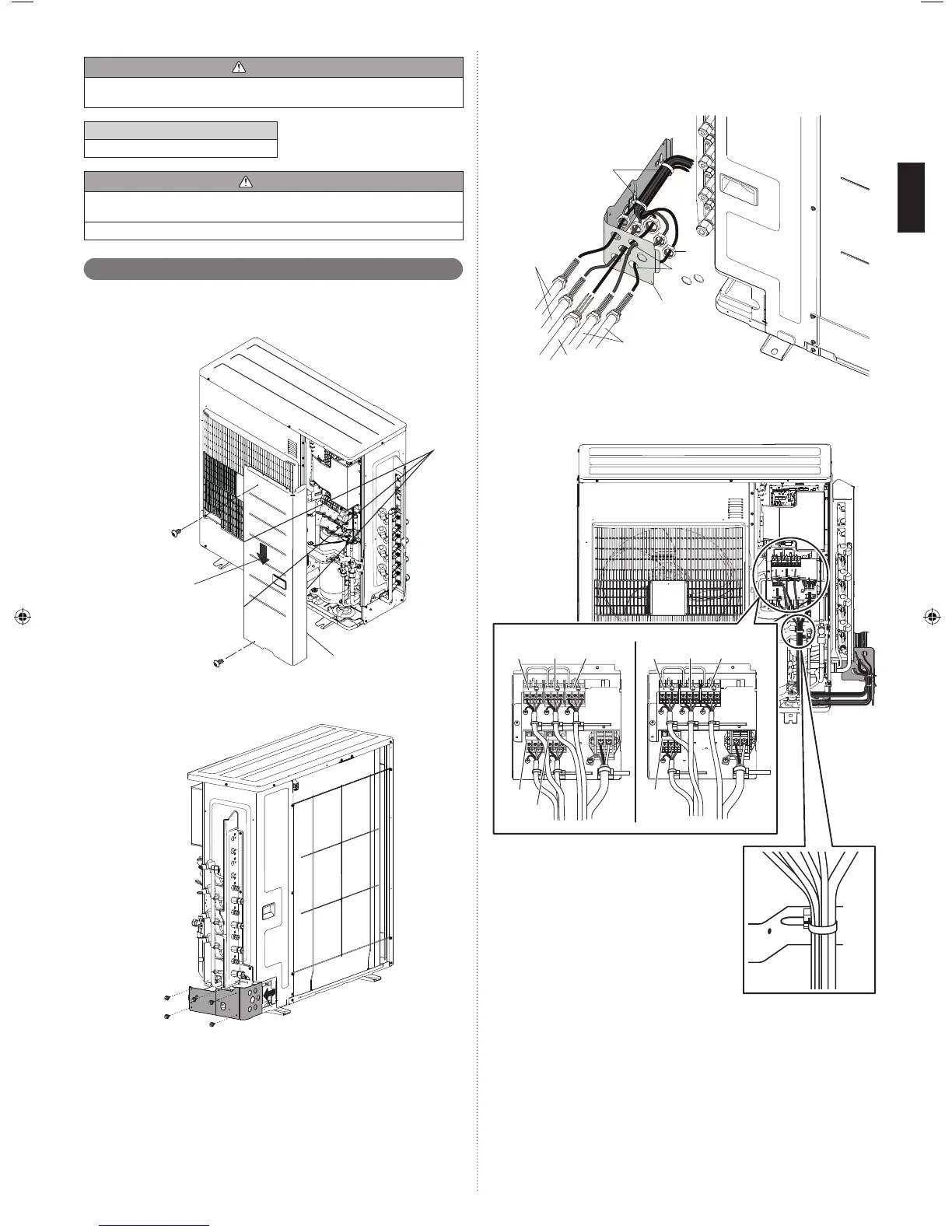

6. 3. Wiring method
(1) Service cover removal
• Remove the two mounting screws.
• Remove the service cover by pushing downwards.
Hook
(3 places)
Service cover
Direction of the service
panel removal
(2) Conduit plate removal
• Remove the fi ve mounting screws.
• Remove the conduit plate.
(3) Fasten the power supply cable and the connection cable to the conduit holder using
the lock nut.
(Open the knock out holes with the tool so as not to transform conduit plate if
necessary.)
Look nut
Conduit plate
Power supply cable
Knockout hole
Connection cable
Connection cable
Cable tie with clip [Large]
(Accessories)
(4) Connect the power supply cable and the connection cable to terminal.
(5) Fasten the power supply cable and connection cable with cable clamp.
45/36 type
45 type
UNIT A
UNIT D
UNIT E
UNIT D
UNIT A
36 type
UNIT B UNIT BUNIT C UNIT C
