En-7
(5) During heating operation, drain water fl ows from the outdoor unit.
Therefore, install the outdoor unit in a place where the drain water fl ow will not be
obstructed. (Reverse cycle model only)
(6) Do not install the unit where strong wind blows or where it is very dusty.
(7) Do not install the unit where people pass.
(8) Install the outdoor unit in a place where it will be free from being dirty or getting wet by
rain as much as possible.
(9) Install the unit where connection to the indoor unit is easy.

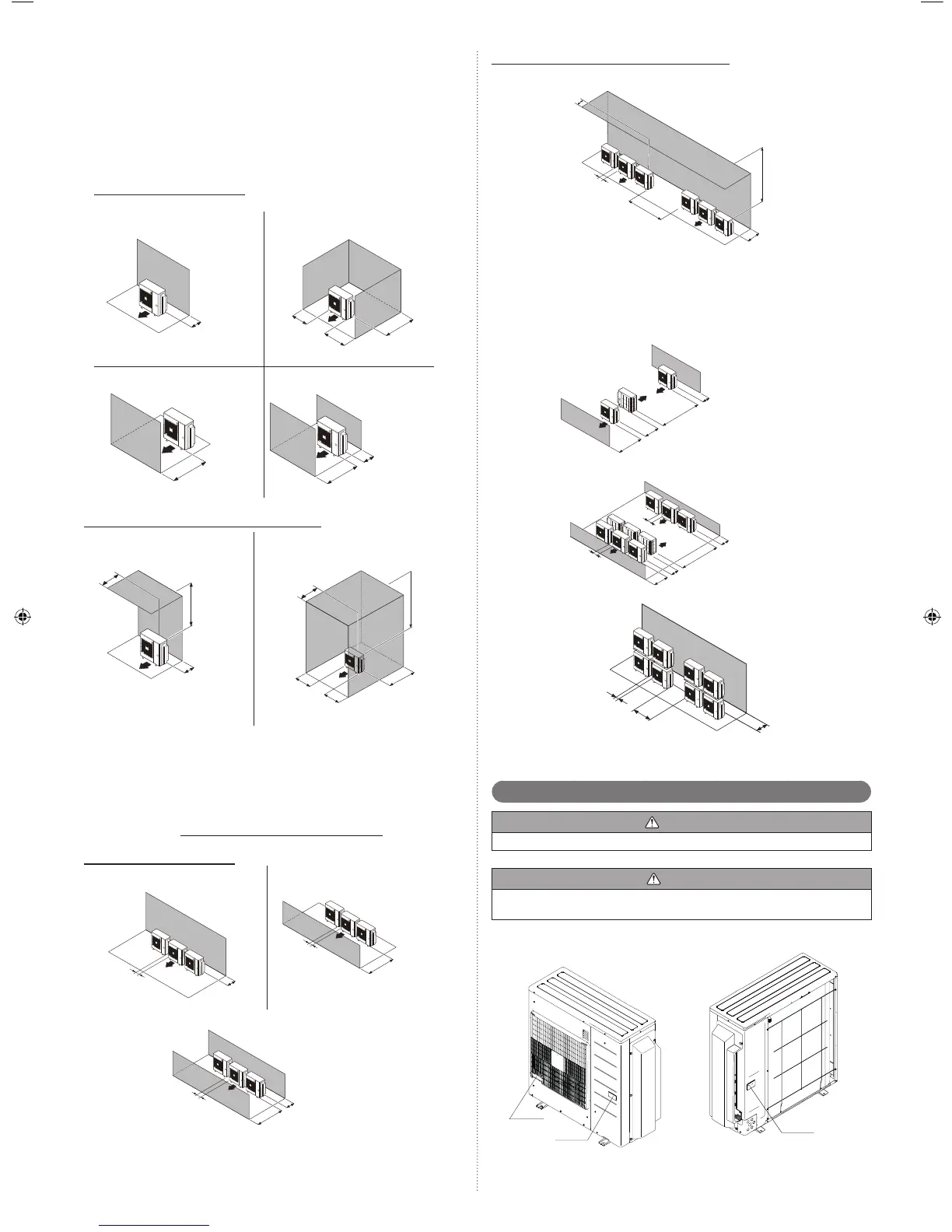

4. 2. 1. Single outdoor unit installation
When the upper space is open:
[Unit: in. (mm)]
(1) When there are obstacles at the
rear only.
5-7/8 (150)
or more
(2) When there are obstacles at the
rear and sides.
7-7/8 (200)
or more
9-13/16 (250)
or more
11-13/16 (300)
or more
(3) When there are obstacles at the
front only.
39-3/8 (1000)
or more
(4) When there are obstacles at the
front and rear.
39-3/8 (1000) or more
5-7/8 (150) or more
When there is an obstruction in the upper space:
[Unit: in. (mm)]
(1) When there are obstacles at the
rear and above.
Max. 19-11/16 (500)
11-13/16 (300)
or more
39-3/8 (1000)
or more
(2) When there are obstacles at the rear, sides,
and above.
39-3/8 (1000)
or more
19-11/16 (500)
or more
7-7/8 (200)
or more
9-13/16 (250)
or more
Max. 19-11/16
(500)
4. 2. 2. Multiple outdoor unit installation
• Provide at least 25 mm of space between the outdoor units if multiple units are
installed.
• When routing the piping from the side of an outdoor unit, provide space for the piping.
• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the
following example when there is an obstruction in the upper space:
When the upper space is open:
[Unit: in. (mm)]
(1) When there are obstacles at the
rear only.
11-13/16 (300)
or more
9-13/16 (250)
or more
(2) When there are obstacles at the front
only.
9-13/16 (250)
or more
59-1/16 (1500)
or more
(3) When there are obstacles at the front and rear.
19-11/16 (500) or more
59-1/16 (1500) or more
9-13/16 (250)
or more
When there is an obstruction in the upper space:
[Unit: in. (mm)]
• When there are obstacles at the rear and above.
59-1/16 (1500)
or more
19-11/16 (500)
or more
Max. 11-13/16
(300)
59-1/16 (1500)
or more
9-13/16 (250)
or more
4. 2. 3. Outdoor units installation in multi row
[Unit: in. (mm)]
* The following settings are not recommended in case of cooling in a low outside
temperature.
(1) Single parallel unit arrangement
19-11/16 (500) or more
23-5/8 (600) or more
59-1/16 (1500) or more
118-1/8 (3000) or more
(2) Multiple parallel unit arrangement
19-11/16 (500) or more
23-5/8 (600) or more
59-1/16 (1500) or more
137-13/16 (3500) or more
9-13/16 (250) or more
9-13/16 (250) or more
9-13/16 (250)
or more
59-1/16 (1500)
or more
19-11/16 (500)
or more
4. 3. Placing the unit
WARNING
Do not touch the fi ns. Otherwise, personal injury could result.
CAUTION
When carrying the unit, hold the handles on the right and left sides and be careful. If
the outdoor unit is carried from the bottom, hands or fi ngers may be pinched.
• Be sure to hold the handles on the sides of the unit. Otherwise, holding the suction
grille on the sides of the unit may cause deformation.
Handle
Handle
Handle
9380545101-02_IM.indb 79380545101-02_IM.indb 7 2/26/2016 10:16:04 AM2/26/2016 10:16:04 AM
