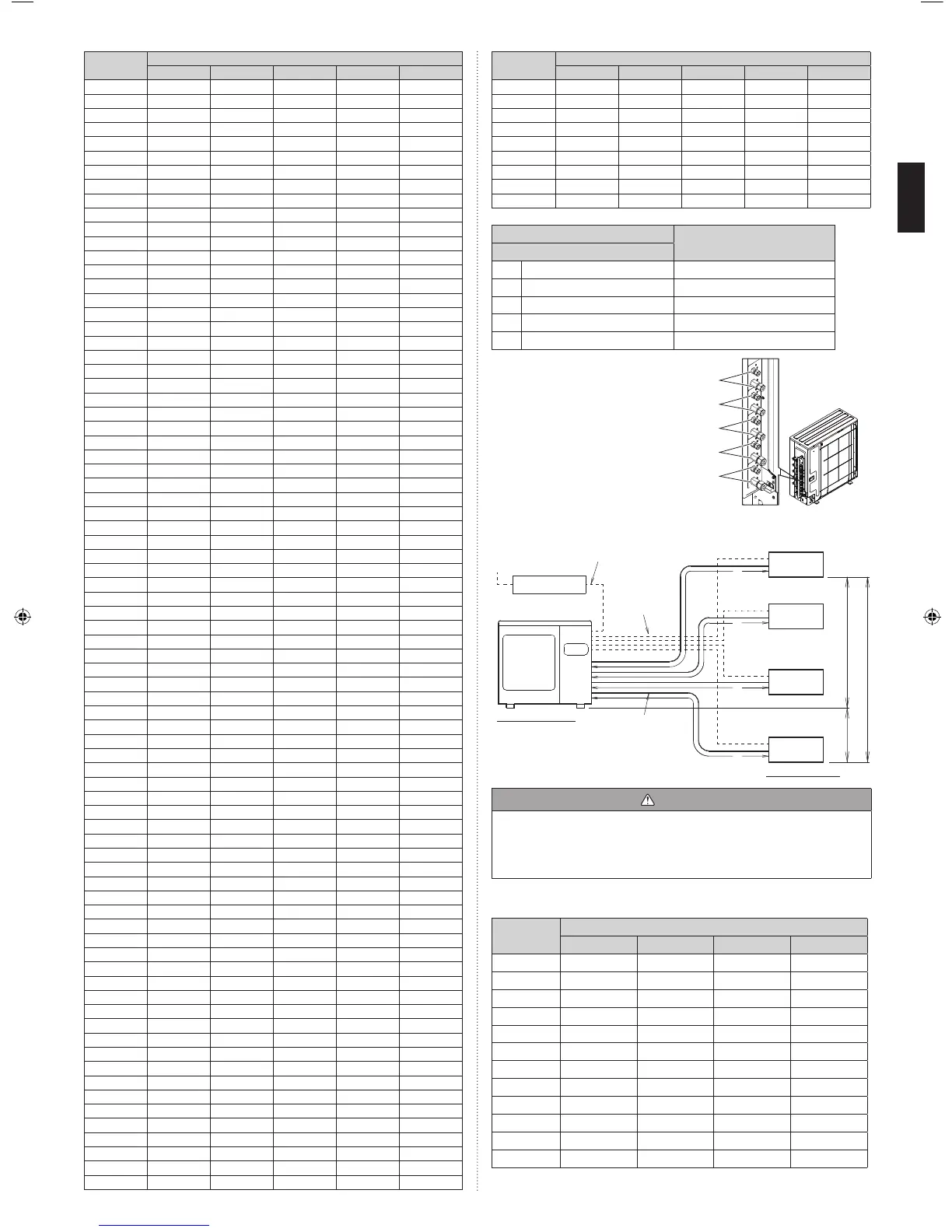

Fujitsu AOU36RLXFZH Installation Manual

En-4
Indoor unit
ABCDE
46 18,000 18,000 9,000 9,000 ―
47 18,000 18,000 9,000 7,000 ―
48 18,000 18,000 7,000 7,000 ―
49 18,000 15,000 12,000 9,000 ―
50 18,000 15,000 12,000 7,000 ―
51 18,000 15,000 9,000 9,000 ―
52 18,000 15,000 9,000 7,000 ―
53 18,000 15,000 7,000 7,000 ―
54 18,000 12,000 12,000 12,000 ―
55 18,000 12,000 12,000 9,000 ―
56 18,000 12,000 12,000 7,000 ―
57 18,000 12,000 9,000 9,000 ―
58 18,000 12,000 9,000 7,000 ―
59 18,000 12,000 7,000 7,000 ―
60 18,000 9,000 9,000 9,000 ―
61 18,000 9,000 9,000 7,000 ―
62 18,000 9,000 7,000 7,000 ―
63 18,000 7,000 7,000 7,000 ―
64 15,000 15,000 15,000 9,000 ―
65 15,000 15,000 15,000 7,000 ―
66 15,000 15,000 12,000 12,000 ―
67 15,000 15,000 12,000 9,000 ―
68 15,000 15,000 12,000 7,000 ―
69 15,000 15,000 9,000 9,000 ―
70 15,000 15,000 9,000 7,000 ―
71 15,000 15,000 7,000 7,000 ―
72 15,000 12,000 12,000 12,000 ―
73 15,000 12,000 12,000 9,000 ―
74 15,000 12,000 12,000 7,000 ―
75 15,000 12,000 9,000 9,000 ―
76 15,000 12,000 9,000 7,000 ―
77 15,000 12,000 7,000 7,000 ―
78 15,000 9,000 9,000 9,000 ―
79 15,000 9,000 9,000 7,000 ―
80 15,000 9,000 7,000 7,000 ―
81 15,000 7,000 7,000 7,000 ―
82 12,000 12,000 12,000 12,000 ―
83 12,000 12,000 12,000 9,000 ―
84 12,000 12,000 12,000 7,000 ―
85 12,000 12,000 9,000 9,000 ―
86 12,000 12,000 9,000 7,000 ―
87 12,000 12,000 7,000 7,000 ―
88 12,000 9,000 9,000 9,000 ―
89 12,000 9,000 9,000 7,000 ―
90 12,000 9,000 7,000 7,000 ―
91 9,000 9,000 9,000 9,000 ―
92 9,000 9,000 9,000 7,000 ―
93 24,000 9,000 7,000 7,000 7,000
94 24,000 7,000 7,000 7,000 7,000
95 18,000 15,000 7,000 7,000 7,000
96 18,000 12,000 9,000 7,000 7,000
97 18,000 12,000 7,000 7,000 7,000
98 18,000 9,000 9,000 9,000 9,000
99 18,000 9,000 9,000 9,000 7,000
100 18,000 9,000 9,000 7,000 7,000
101 18,000 9,000 7,000 7,000 7,000
102 18,000 7,000 7,000 7,000 7,000
103 15,000 15,000 9,000 7,000 7,000
104 15,000 15,000 7,000 7,000 7,000
105 15,000 12,000 12,000 7,000 7,000
106 15,000 12,000 9,000 9,000 9,000
107 15,000 12,000 9,000 9,000 7,000
108 15,000 12,000 9,000 7,000 7,000
109 15,000 12,000 7,000 7,000 7,000
110 15,000 9,000 9,000 9,000 9,000
111 15,000 9,000 9,000 9,000 7,000
112 15,000 9,000 9,000 7,000 7,000
113 15,000 9,000 7,000 7,000 7,000
114 15,000 7,000 7,000 7,000 7,000
115 12,000 12,000 12,000 9,000 9,000
116 12,000 12,000 12,000 9,000 7,000
117 12,000 12,000 12,000 7,000 7,000
118 12,000 12,000 9,000 9,000 9,000
119 12,000 12,000 9,000 9,000 7,000
120 12,000 12,000 9,000 7,000 7,000
121 12,000 12,000 7,000 7,000 7,000
122 12,000 9,000 9,000 9,000 9,000
123 12,000 9,000 9,000 9,000 7,000
Indoor unit
ABCDE
124 12,000 9,000 9,000 7,000 7,000
125 12,000 9,000 7,000 7,000 7,000
126 12,000 7,000 7,000 7,000 7,000
127 9,000 9,000 9,000 9,000 9,000
128 9,000 9,000 9,000 9,000 7,000
129 9,000 9,000 9,000 7,000 7,000
130 9,000 9,000 7,000 7,000 7,000
131 9,000 7,000 7,000 7,000 7,000
132 7,000 7,000 7,000 7,000 7,000
Outdoor port
Capacity indoor unit
Standard port size [in. (mm)]
E 1/4 (6.35) / 3/8 (9.52) 7 - 9
D 1/4 (6.35) / 3/8 (9.52) 7 - 12
C 1/4 (6.35) / 3/8 (9.52) 7 - 18
B 1/4 (6.35) / 1/2 (12.70) 7 - 24
A 1/4 (6.35) / 1/2 (12.70) 7 - 24
Port E: Ø1/4 in., Ø3/8 in. (Ø6.35 mm, Ø9.52 mm)
Port D: Ø1/4 in., Ø3/8 in. (Ø6.35 mm, Ø9.52 mm)
Port C: Ø1/4 in., Ø3/8 in. (Ø6.35 mm, Ø9.52 mm)
Port B: Ø1/4 in., Ø1/2 in. (Ø6.35 mm, Ø12.70 mm)
Port A: Ø1/4 in., Ø1/2 in. (Ø6.35 mm, Ø12.70 mm)
2. 4. 2. Connectable indoor unit capacity type (Outdoor unit: 36 type)
A
B
C
D
H1
H1
H2
Power source
208/230 V ~ 60 Hz
Power supply cable
Connection cable
Refrigerant pipe
OUTDOOR UNIT
INDOOR UNITS
UNIT D
7-12
UNIT C
7-12
UNIT B
7-18
UNIT A
7-24
CAUTION
The total capacity of the indoor units connected must be between 27,000 and 39,000
BTU.
Connection patterns are restricted. Normal operation is not guaranteed if connected
pattern in the combination not listed below. The product may be damaged. Surely con-
nect in accordance with the combination in the following connection pattern.
• To install an indoor unit, refer to the installation manual included with the indoor unit.
Indoor unit connection pattern
Indoor unit
ABCD
1 18,000 18,000 – –
2 9,000 9,000 9,000 –
3 12,000 9,000 7,000 –
4 12,000 9,000 9,000 –
5 12,000 12,000 7,000 –
6 12,000 12,000 9,000 –
7 12,000 12,000 12,000 –
8 15,000 7,000 7,000 –
9 15,000 9,000 7,000 –
10 15,000 9,000 9,000 –
11 15,000 12,000 7,000 –
12 15,000 12,000 9,000 –
9380545101-02_IM.indb 49380545101-02_IM.indb 4 2/26/2016 10:16:03 AM2/26/2016 10:16:03 AM
