Multiple outdoor unit installation
NOTES:
• Provide at least of space between the outdoor units if multiple units are installed.
• When routing the piping from the side of an outdoor unit, provide space for the piping.
• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the following ex-
ample when an obstruction is present also in the upward area.

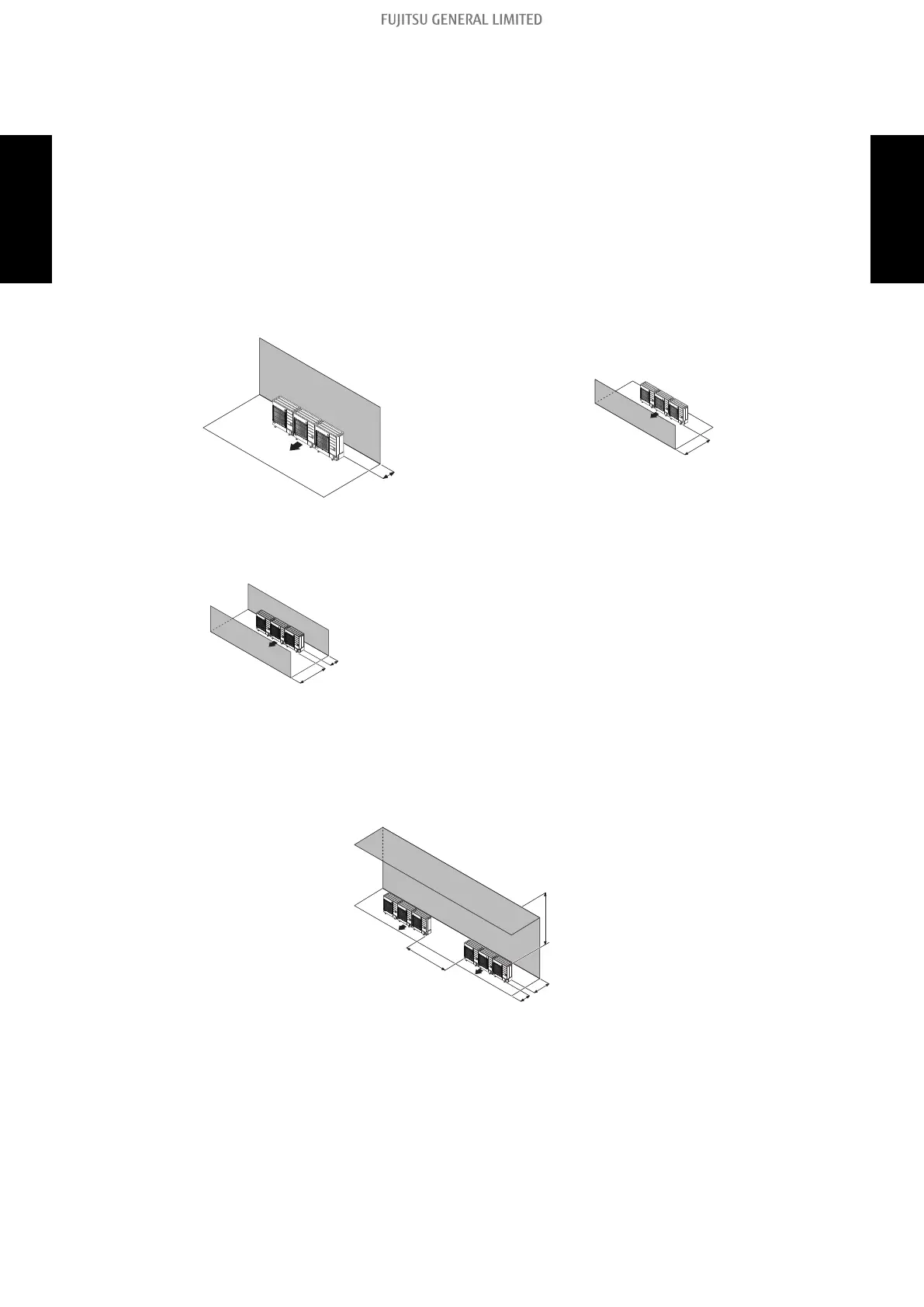

• When the upper space is open:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the front only.
When there are obstacles at the front and
rear.
20 (500) or more
60 (1500) or more
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear and above.
60 (1500) or more
20 (500) or more
Max. 11 (300)
60 (1500)
or more
- 75 -
3-2. Models: AOUG36LMAS1 and AOUG48LMAS1 3. Installation space
OUTDOOR UNIT
AOU24-30RGLX,
AOUG36-48LMAS1
OUTDOOR UNIT
AOU24-30RGLX,
AOUG36-48LMAS1
