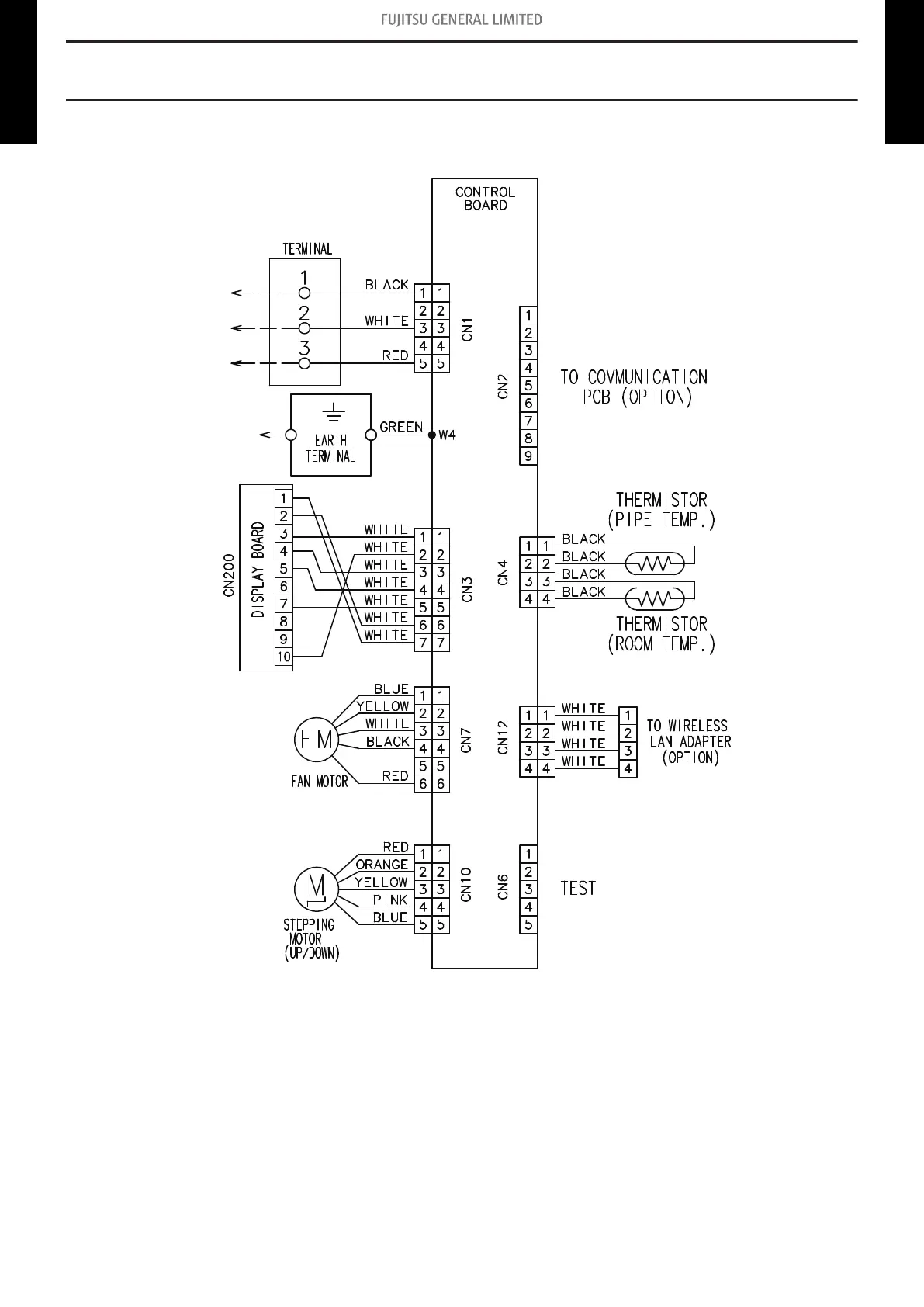

3. Wiring diagrams
3-1. Models: ASYG07KMCC, ASYG09KMCC, ASYG12KMCC,
and ASYG14KMCC
- 6 -
3-1. Models: ASYG07KMCC, ASYG09KMCC, ASYG12KMCC, and ASYG14KMCC 3. Wiring diagrams
WALL MOUNTED
ASYG07-14KMCC
WALL MOUNTED
ASYG07-14KMCC
