27
29
29
28
30
31
34
21
37
24
32
25
22
26
38
35
23
33
36

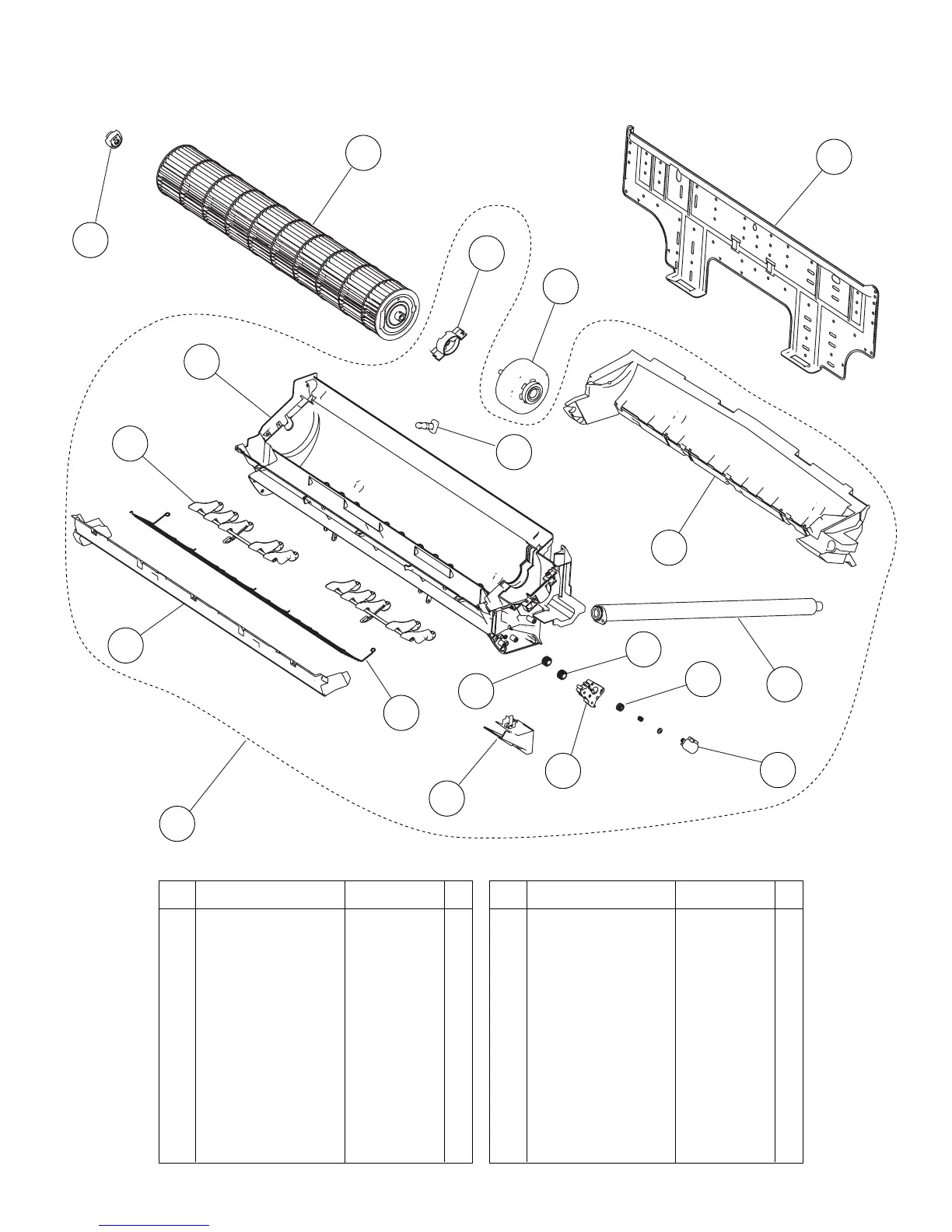

INDOOR UNIT
Casing assy
14
34 Fan Guard 9317182003
35 Fan Motor 9603100001
36 Crossflow Fan Assy 9316830004
37 Shaft Holder C 9306628017
38 Bracket Panel 9316590007
30 Gear A 9309994003
31 Motor Step 9900139193
32 Drain Hose Assy 9316904002
33 Drain Cap 9316177017
Ref. Description Part number
24 Cable Guide 9316567009
25 Casing Cover B 9316569003
26 Casing Cover F 9316570009
27 R and L Louver B 9316961005
21 Casing Assy 9316892095
22 Casing 9316563001
23 Motor Cover 9316568006
28 Louver Gear Holder 9316575004
29 Louver Gear 9316574007
Ref. Description Part number
2011.01.24
