INDOOR UNIT
ASYG07LMCE
ASYG09LMCE

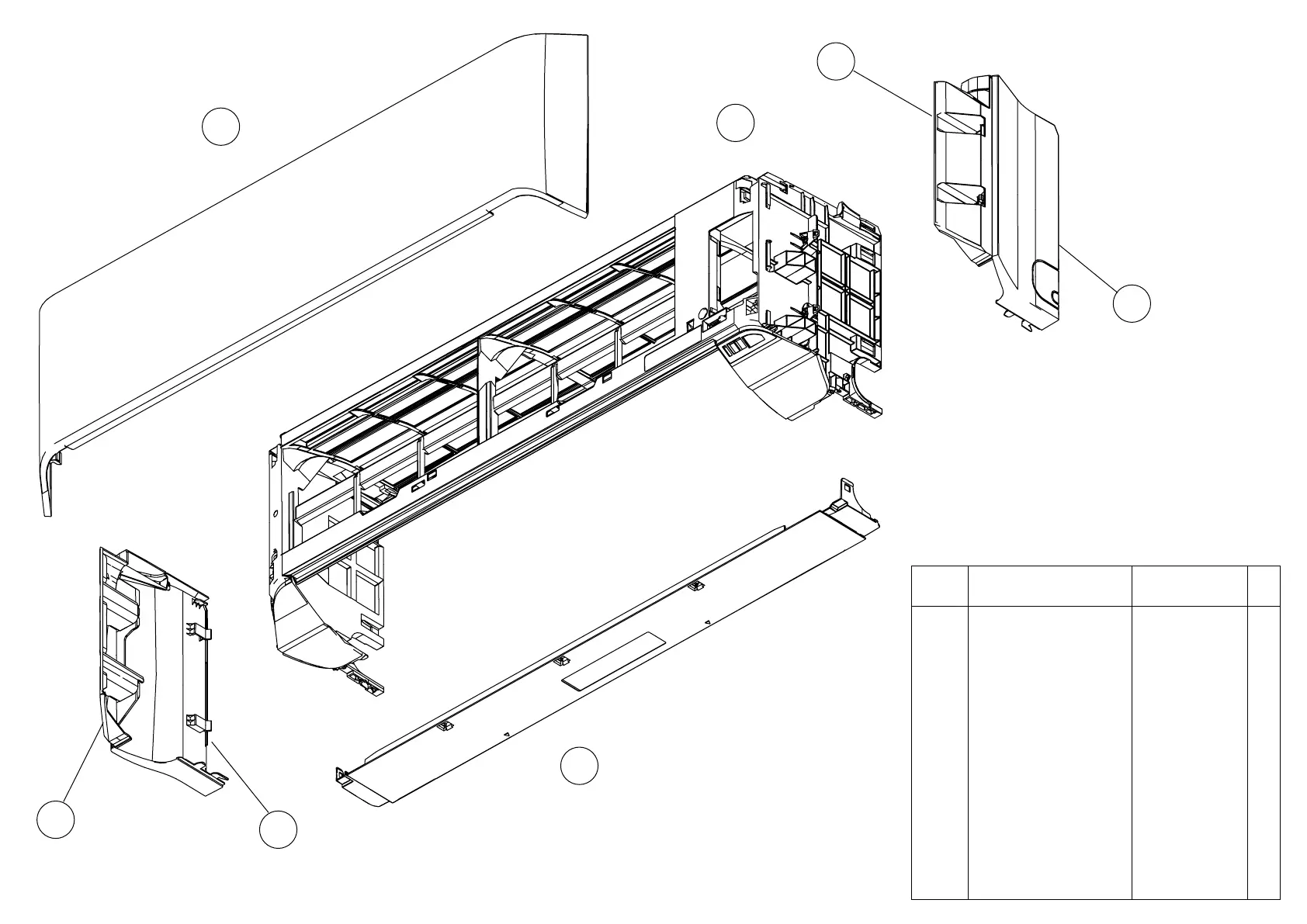

Front panel sub assy
2016.11.07 11
23
25
22
24
Front Panel C 9333497020
21 Intake Grille Assy 9333526010
Under Cover 9333503011
Front Panel Cover R 9333502014
Ref. Description Part number
Front Panel R 9333500003
27 Front Panel L 9333499000
26 Front Panel Cover L 9333501017
25
21
26
27
24
23
22
