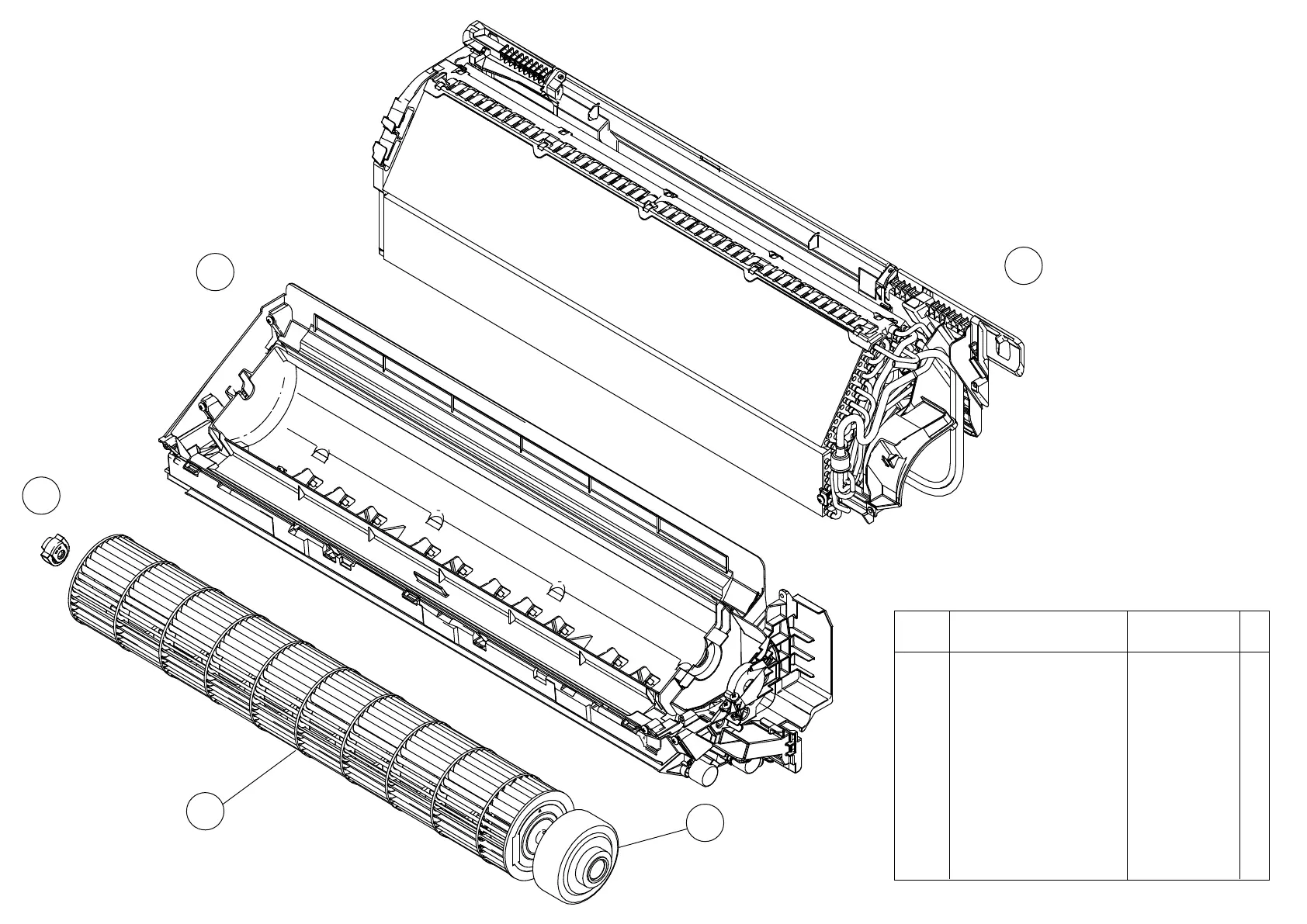

INDOOR UNIT
ASYG07LMCE
ASYG09LMCE
Evaporator
Fan
Fan Motor 9603269005
Crossflow Fan Assy 9316830004
Bearing C Assy 9306628017
45
42
Evaporator Total Assy 933298909041
Casing Assy 9333009001
43
44
Ref. Description Part number
132016.11.07
45
44
43
41
42
