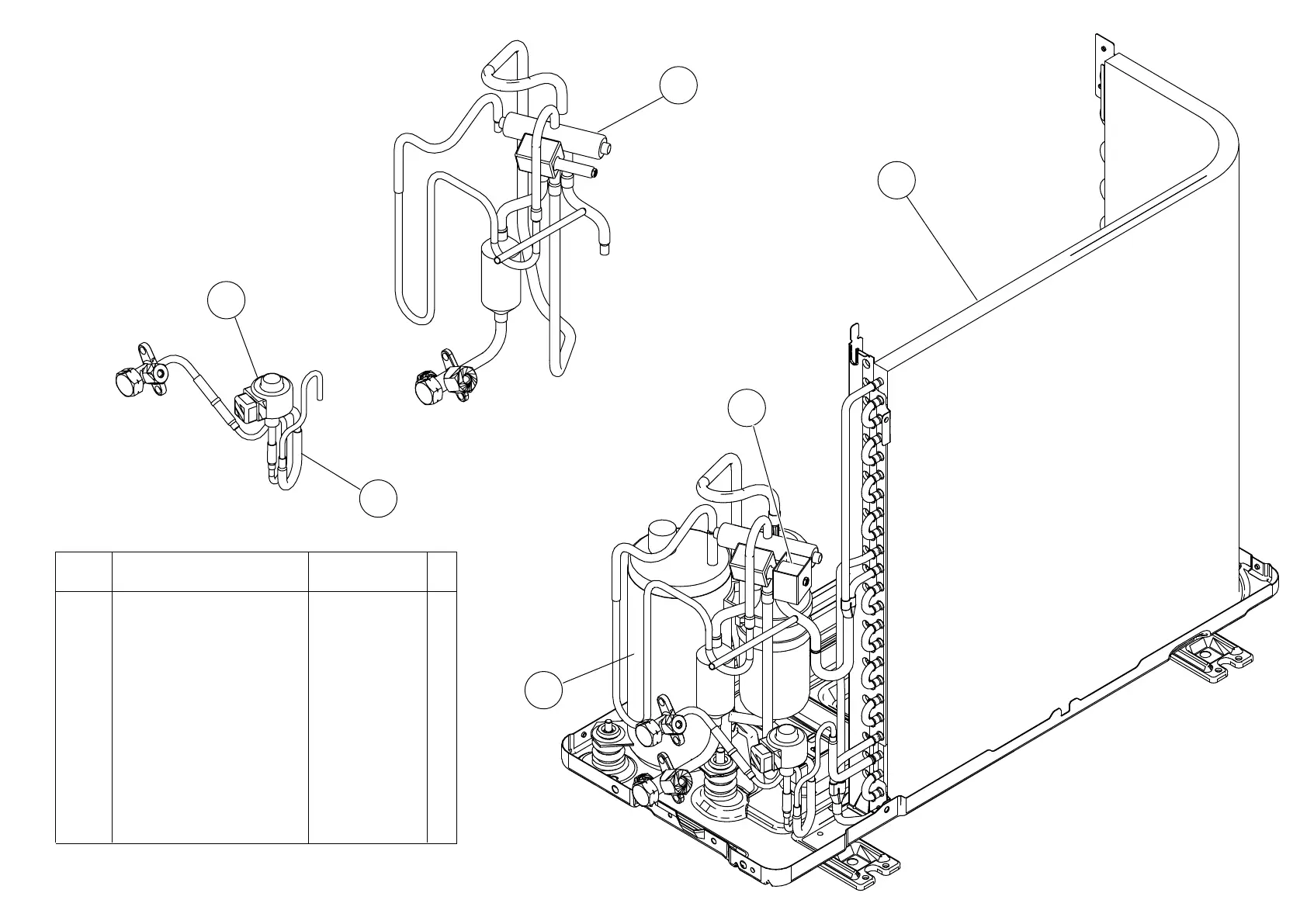

2016.11.09 18
32 Compressor Assy 9317083034
33 Solenoid 9970079030
31 Condenser Total Assy 9332924008
35 Expansion Valve Coil 9970137013
34 4-way Valve Assy 9333012001
36
Pulse Motor Valve Sub Assy
9333023007
Ref. Description Part number
OUTDOOR UNIT
AOYG07LMCE
AOYG09LMCE
33
32
31
36
34
35
