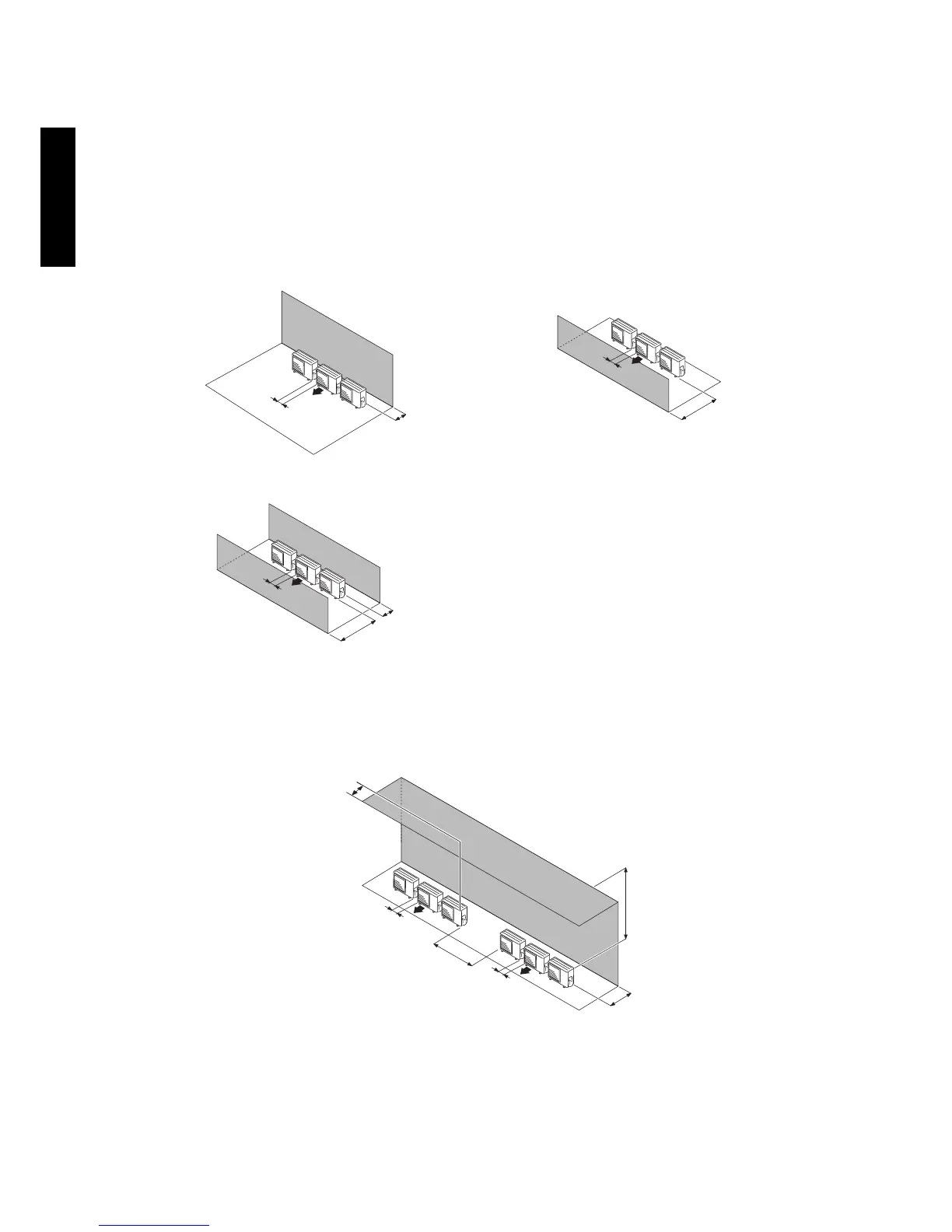

 Multiple outdoor unit installation
• Provide at least 250 mm of space between the outdoor units if multiple units are installed.
• When routing the piping from the side of an outdoor unit, provide space for piping.
• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the following
example “When an obstruction in the upper space:”.
• When the upper space is open:
Unit: mm
Obstacles at rear only Obstacles at front only
200 or more
250 or more
1,000 or more
250 or more
Obstacles at front and rear
200 or more
1,000 or more
250 or more
• When an obstruction in the upper space:
Unit: mm
Obstacles at rear and above.
1,500 or more
200 or more
250 or more
250 or more
Max. 300
1,500 or more
DESIGN & TECHNICAL MANUAL
- 44 -
OUTDOOR UNIT AOYG07-14KMTA

Fujitsu AOYG12KMTA Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Air conditioner functions	Cooling, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	-
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	290 mm
Outdoor unit width	663 mm
Outdoor unit height	541 mm
Outdoor unit weight	25000 g
Outdoor units quantity	1
Outdoor unit noise level	58 dB
Cooling airflow (outdoor unit)	770 m³/h
Outdoor unit sound power level	50 dB
