Fujitsu AOYG12KMTA Design & Technical Manual

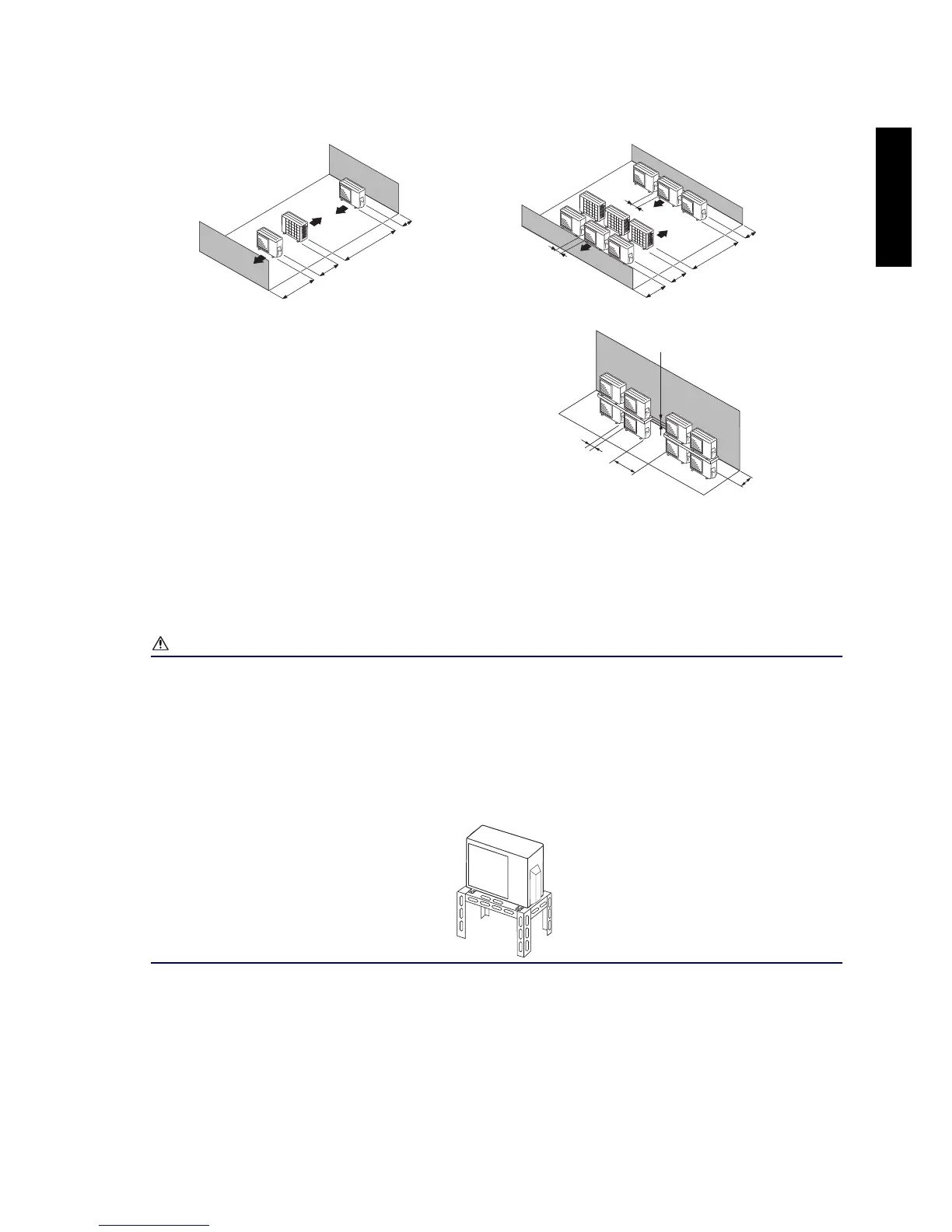

 Outdoor units installation in multi-row
Unit: mm
Single parallel unit arrangement Multiple parallel unit arrangement
100 or more
200 or more
500 or more
1,000 or more
200 or more
400 or more
1,000 or more
250 or more
2,000 or more
250 or more
1,000 or more
200 or more
250 or more
200 or more
NOTES:
• If the space is larger than stated above, the condition will be the same as when there is no
obstacle.
• When installing the outdoor unit, be sure to open the front and left side to obtain better opera-
tion efficiency.
CAUTION
• Do not install the outdoor unit in two-stage where the drain water could freeze. Otherwise the
drainage from the upper unit may form ice and cause a malfunction of the lower unit.
• When the outdoor temperature is 0 °C or less, do not use the accessory drain pipe and drain
cap. If the drain pipe and drain cap are used, the drain water in the pipe may freeze in ex-
tremely cold climate. (For reverse cycle model only.)
• In area with heavy snowfall, if the inlet and outlet of the outdoor unit is blocked with snow, it
might become difficult to get warm, and it is likely to cause product malfunction. Construct a
canopy and a pedestal, or place the unit on a high stand that is locally installed.
- 45 -
OUTDOOR UNIT AOYG07-14KMTA

Fujitsu AOYG12KMTA Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Air conditioner functions	Cooling, Heating
Refrigerating medium weight	700 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	-
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	290 mm
Outdoor unit width	663 mm
Outdoor unit height	541 mm
Outdoor unit weight	25000 g
Outdoor units quantity	1
Outdoor unit noise level	58 dB
Cooling airflow (outdoor unit)	770 m³/h
Outdoor unit sound power level	50 dB
