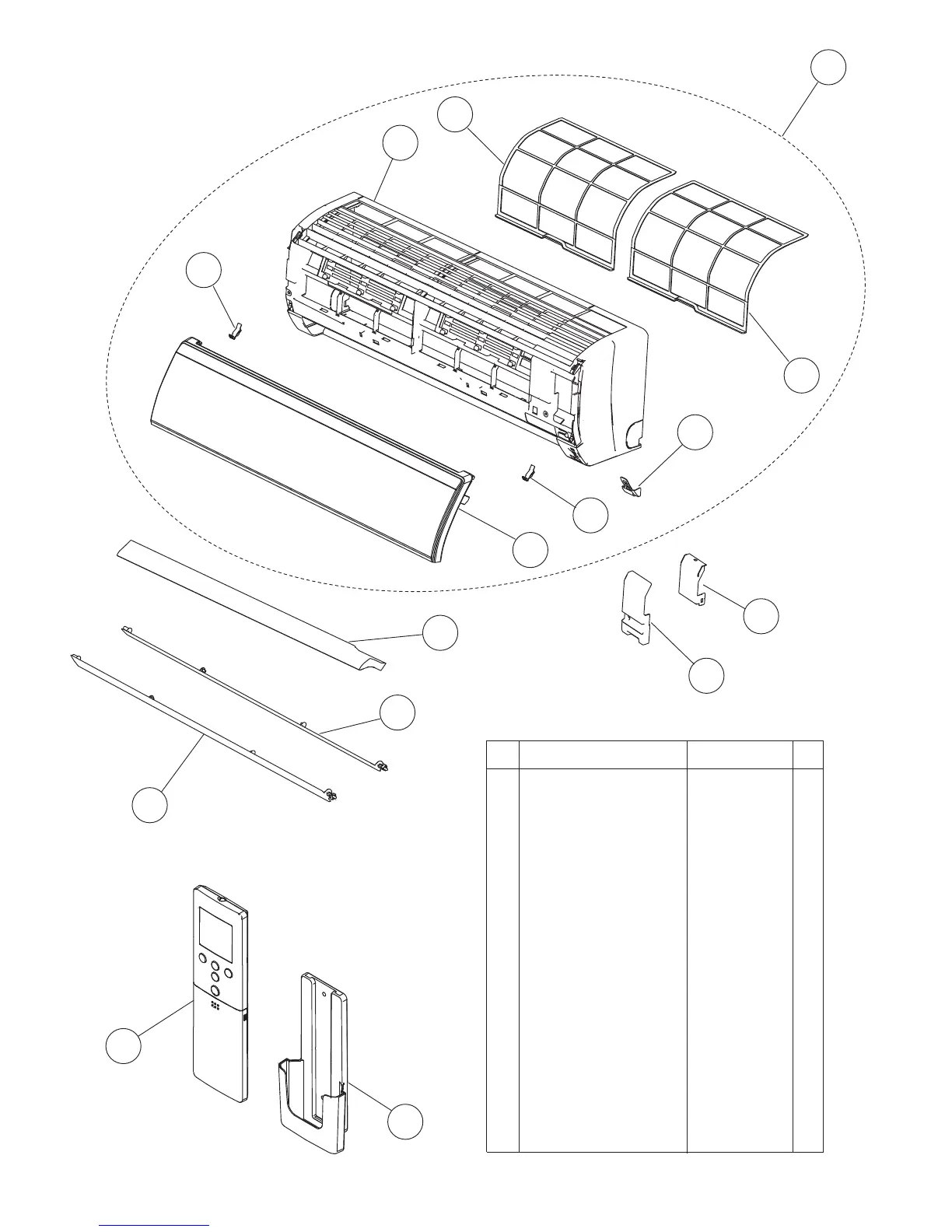

PARTS
2
1
3
6
9
7
8
12
11
10
13
4
4
5
5
INDOOR UNIT
Front panel
2011.03.03 13
5 Air Filter 9316562004
2 Front Panel 9316558045
6 Receiver Window 9316588011
4
9
Grille Clamper 9316906006
3 Intake Grille Assy 9332462005
Panel Cover 9316561014
1 Front Panel Total Assy 9316897342
7 Wire Cover 9316559004
8 Wire Shield 9316584006
-- Air Clean Filter Assy 9317250009
12 Remote Control 9319208008
13 Remote Control Holder 9318912005
Ref. Description Part number
11 Louver U 9316572003
10 Louver Z 9316573000
