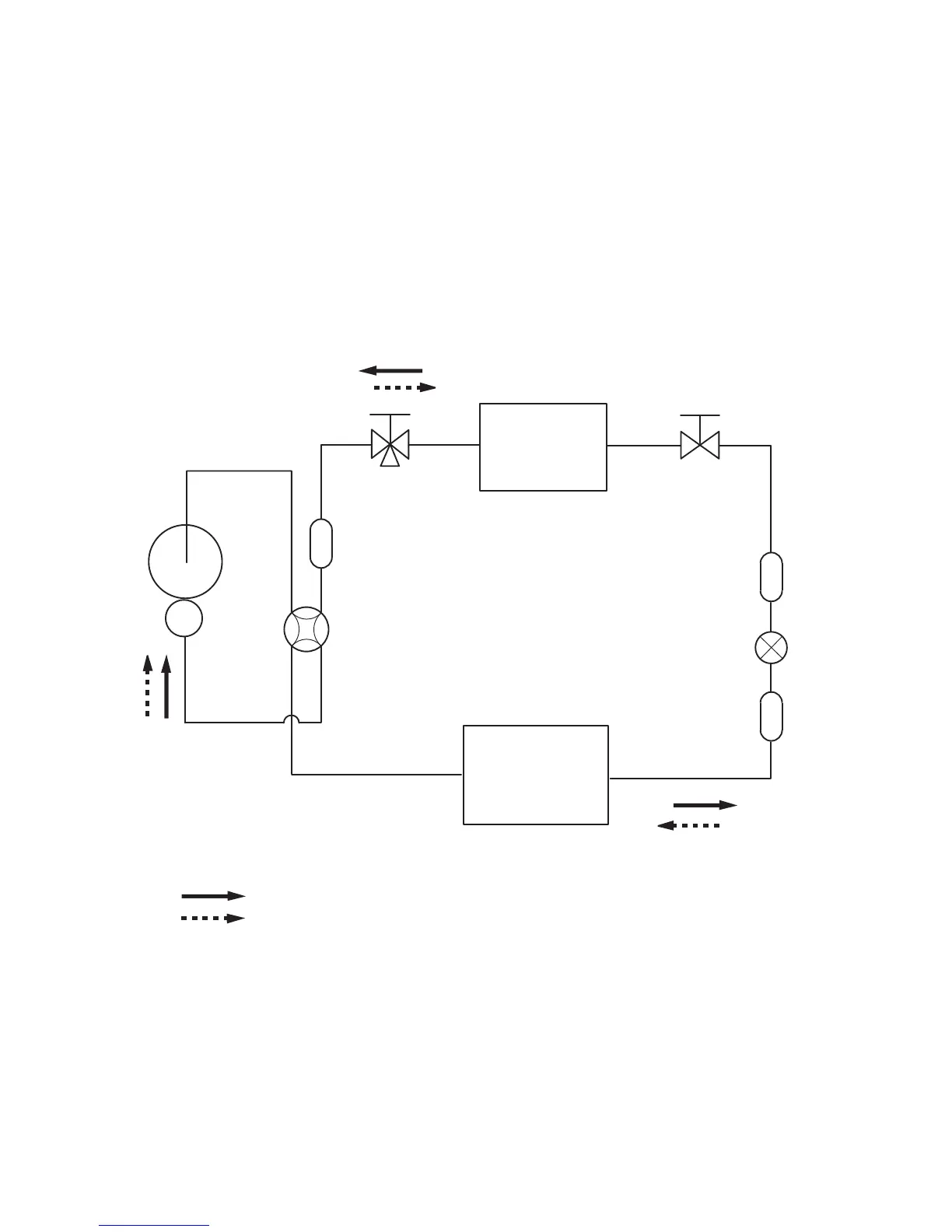

REFRIGERANT
SYSTEM DIAGRAM
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
4-Way valve
Expansion valve
Refrigerant direction
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2010.03.01
3
3
5
Table of Contents
Contents
1
Room Air Conditioner
1
Wall Mounted Type
1
Indoor Unit
1
Outdoor Unit
1
Specifications
2
Electrical Data
2
Fan Motor
2
Noise Level
2
Dimensions
3
Indoor Unit
3
Outdoor Unit
3
Refrigerant System Diagram
4
Refrigerant Direction
4
Refrigerant Pipe Diameter
4
Circuit Diagram
5
Indoor PCB Circuit Diagram
6
Indicator Pcb Assembly
8
Indoor Unit Remote Control
12
Error Detection
12
Indoor Unit Display
12
Error Code
12
Parts
14
Front Panel
14
Casing Assy
15
Control Box
16
Evaporator
17
Accessories
21
Option
21
