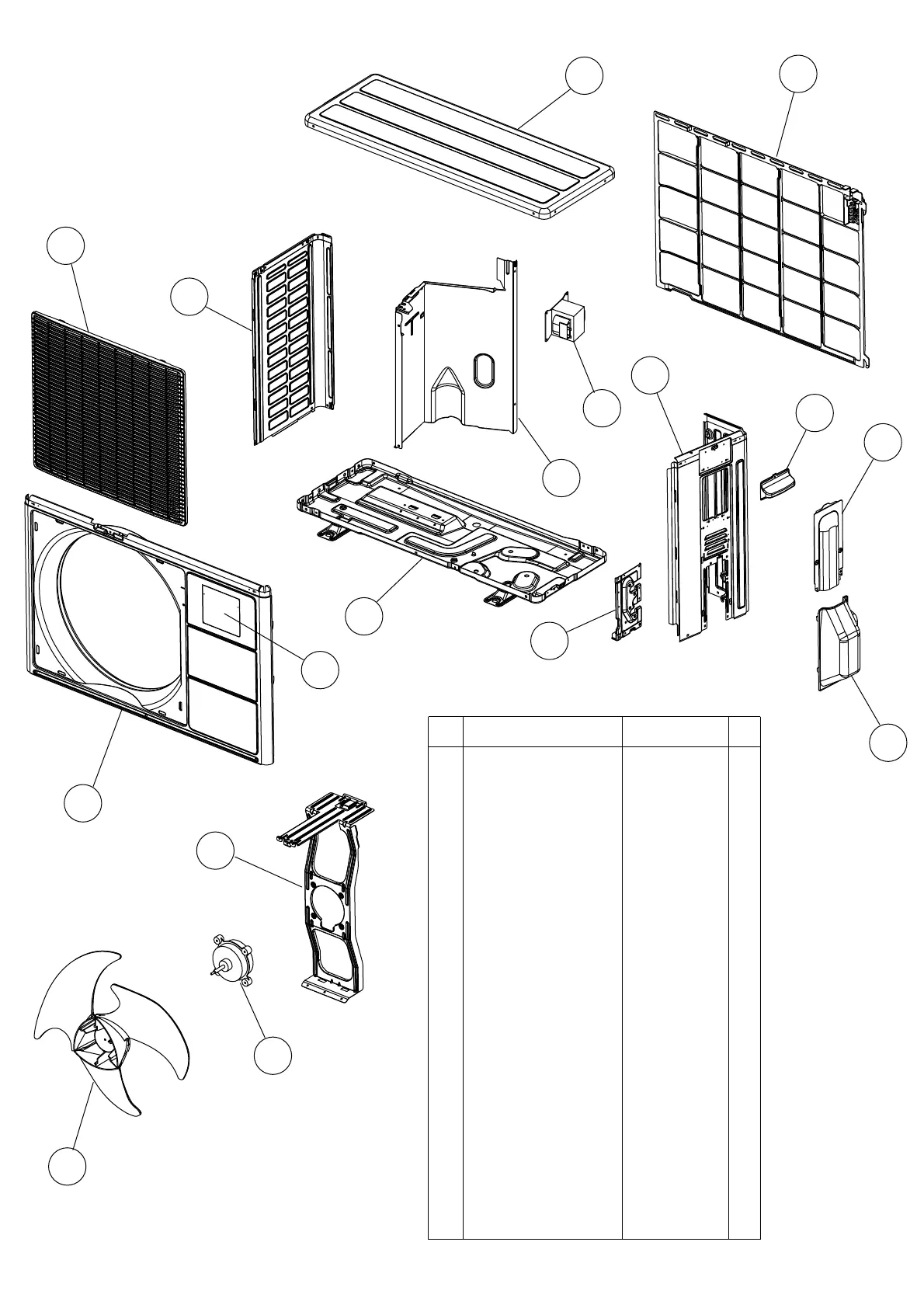

PARTS
OUTDOOR UNIT
2011.01.26 17
4 Top Panel Assy 9317761055
1 Front Panel Assy 9317760010
5 Protective Net 9313941055
3
6
Cabinet Left Assy 9318247008
2 Emblem 9319151007
Switch Cover A Assy 9317795005
8 Grip 9317588003
7 Switch Cover B 9317582001
10 Valve Bracket 9331649001
9 Cabinet Right Assy 9317759021
12 Reactor Assy 9900611019
11 Separator Assy 9318340013
13 Motor Bracket 9332289039
15 Propeller Fan 9313808013
16 Base Assy 9316885028
-- Drain Assy 9303029022
14 Fan Motor 9602864003
Ref. Description Part number
