Fujitsu AOYG18KBTA2 - 7. Capacity compensation rate for pipe length and height difference; 7-1. Model: AOYG14 KBTA2

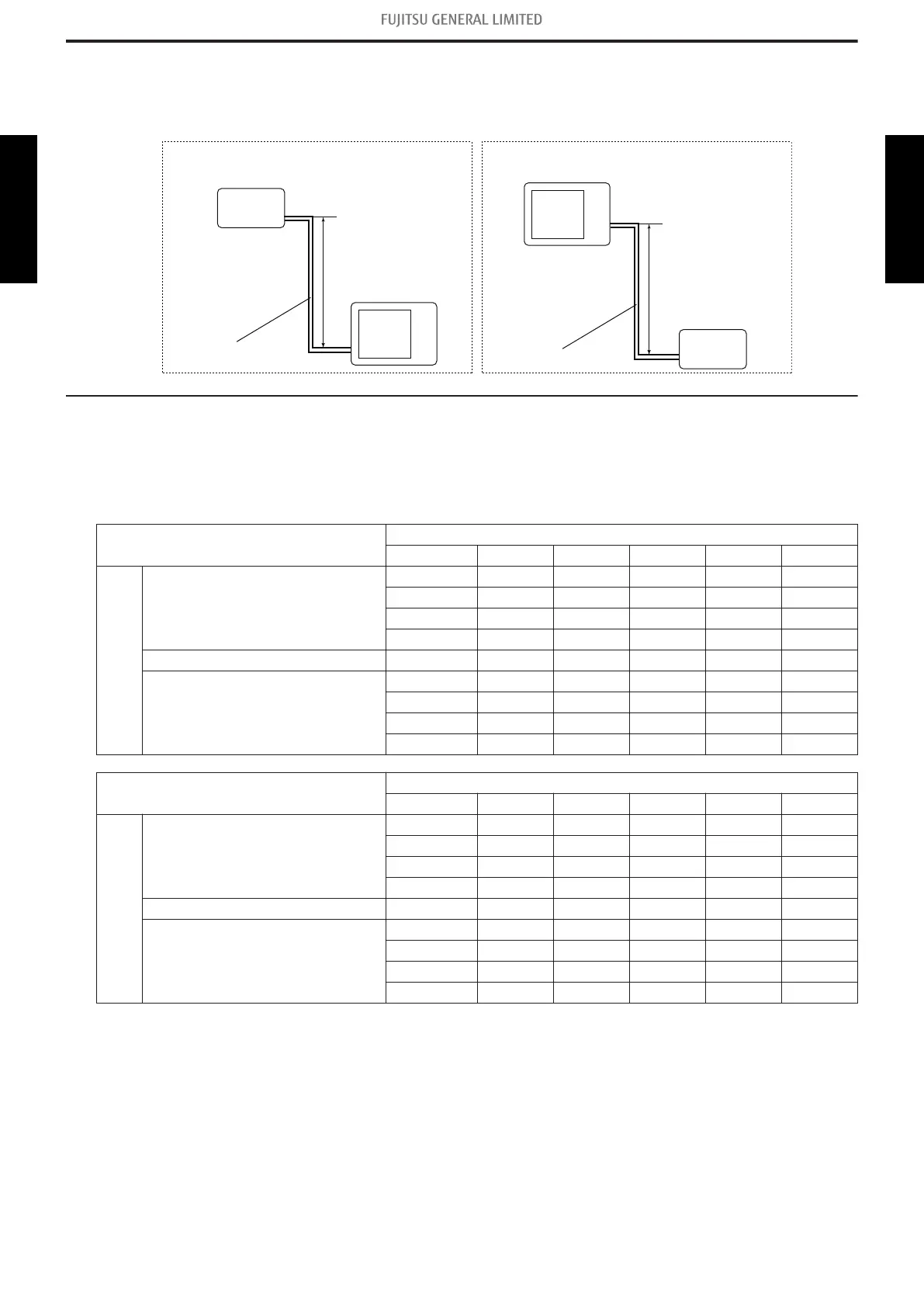

7. Capacity compensation rate for pipe length and height
difference
Height difference H
Indoor unit is higher than outdoor unit *
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
H H
7-1. Model: AOYG14KBTA2
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢ Indoor unit: 7,000 Btu/h
Cooling
Pipe length
m 2.5 5 10 15 20
Height difference H (m)
Indoor unit is higher than outdoor
unit *1
15 — — — 0.936 0.908
10 — — 0.969 0.943 0.915
5 — 0.991 0.976 0.950 0.921
2.5 0.993 0.993 0.978 0.952 0.923
0 1.000 1.000 0.985 0.959 0.930
Indoor unit is lower than outdoor
unit *2
-2.5 1.000 1.000 0.985 0.959 0.930
-5 — 1.000 0.985 0.959 0.930
-10 — — 0.985 0.959 0.930
-15 — — — 0.959 0.930
Heating
Pipe length
m 2.5 5 10 15 20
Height difference H (m)
Indoor unit is higher than outdoor
unit *1
15 — — — 0.937 0.915
10 — — 0.956 0.937 0.915
5 — 1.000 0.956 0.937 0.915
2.5 0.990 1.000 0.956 0.937 0.915
0 0.990 1.000 0.956 0.937 0.915
Indoor unit is lower than outdoor
unit *2
-2.5 0.986 0.996 0.952 0.933 0.911
-5 — 0.994 0.950 0.931 0.909
-10 — — 0.946 0.928 0.906
-15 — — — 0.923 0.901
- 335 -
