DUCT TYPE ARYG12-54LHTBP
4-3. Models: ARYG36LHTBP, ARYG45LHTBP, and
ARYG54LHTBP

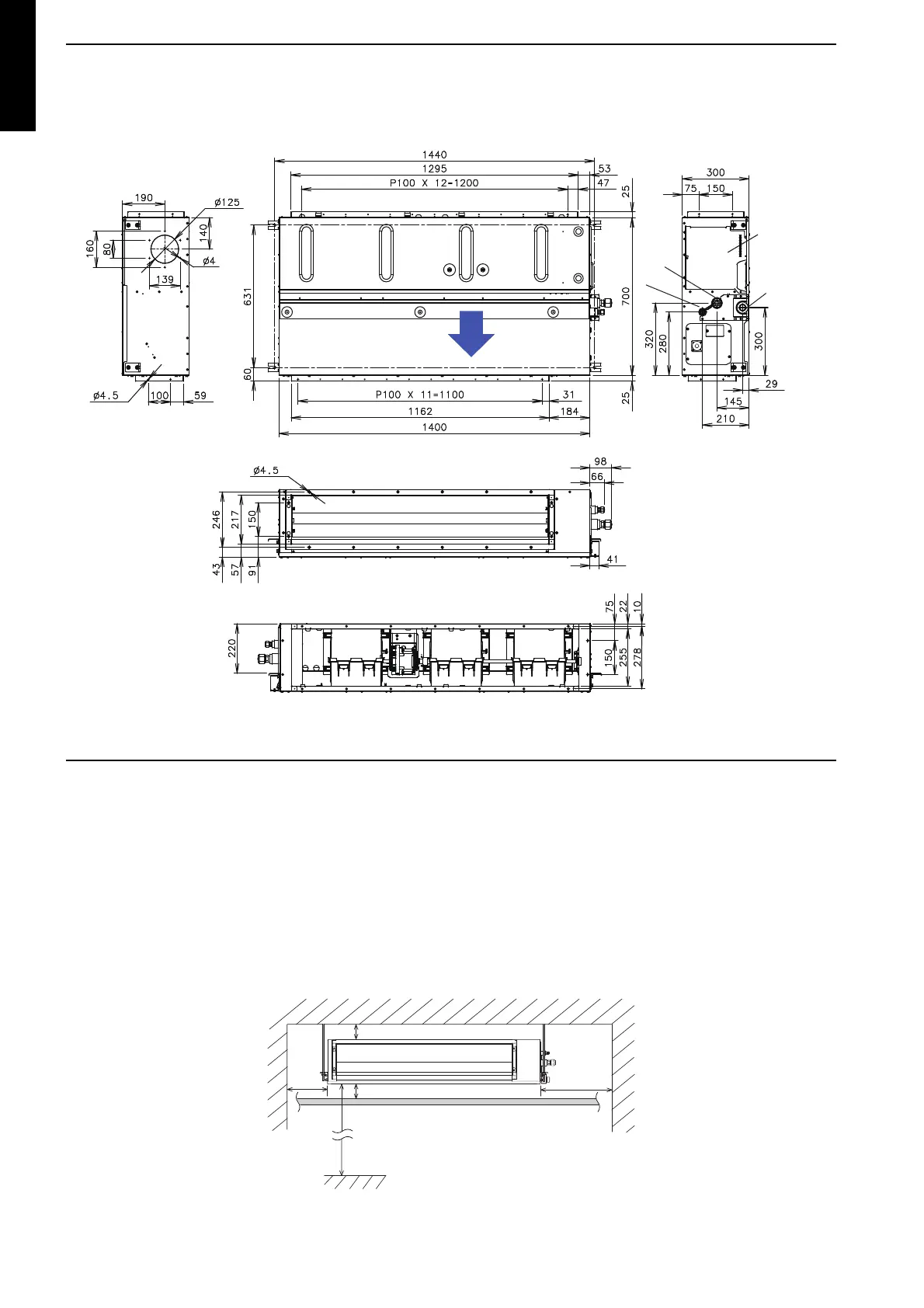

4-4. Installation space requirement
Provide sufficient installation space for product safety.
 Models: ARYG12LHTBP, ARYG14LHTB, ARYG18LHTBP,
ARYG24LHTBP, ARYG30LHTBP, ARYG36LHTBP,
ARYG45LHTBP, and ARYG54LHTBP
Unit: mm
Gas pipe
Drain port
Control box
Liquid pipe
Air
Side view (L)
Side view (R)
Top view
Front view
Rear view
Floor
300 or more
150 or
more
20 or more
2500 or more
(When no ceiling)
20 or more
Unit: mm
