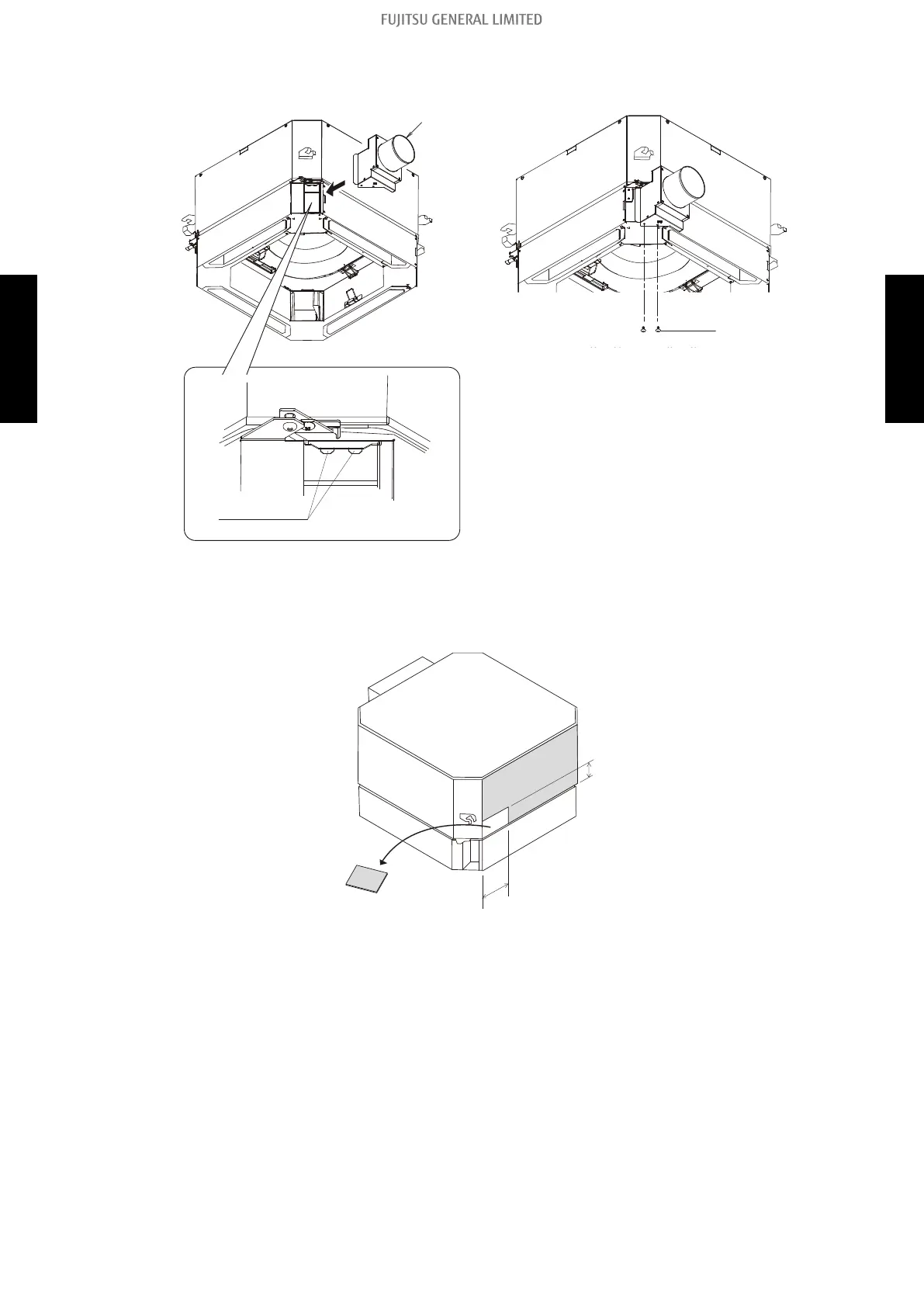

2. Install the chamber.
Fit the four-sided holes of the chamber together with the hook fittings of the Fresh air intake kit
(in two places), and secure the attached chamber in place with screws provided.
Screw × 2
Hook fittings
Ø100 mm
• When using the Insulation kit for high humidity (UTZ-KXGC), first cut off and remove the heat
insulation as shown in the figure.
• Install the Insulation kit for high humidity according to the installation instruction sheet provid-
ed.
