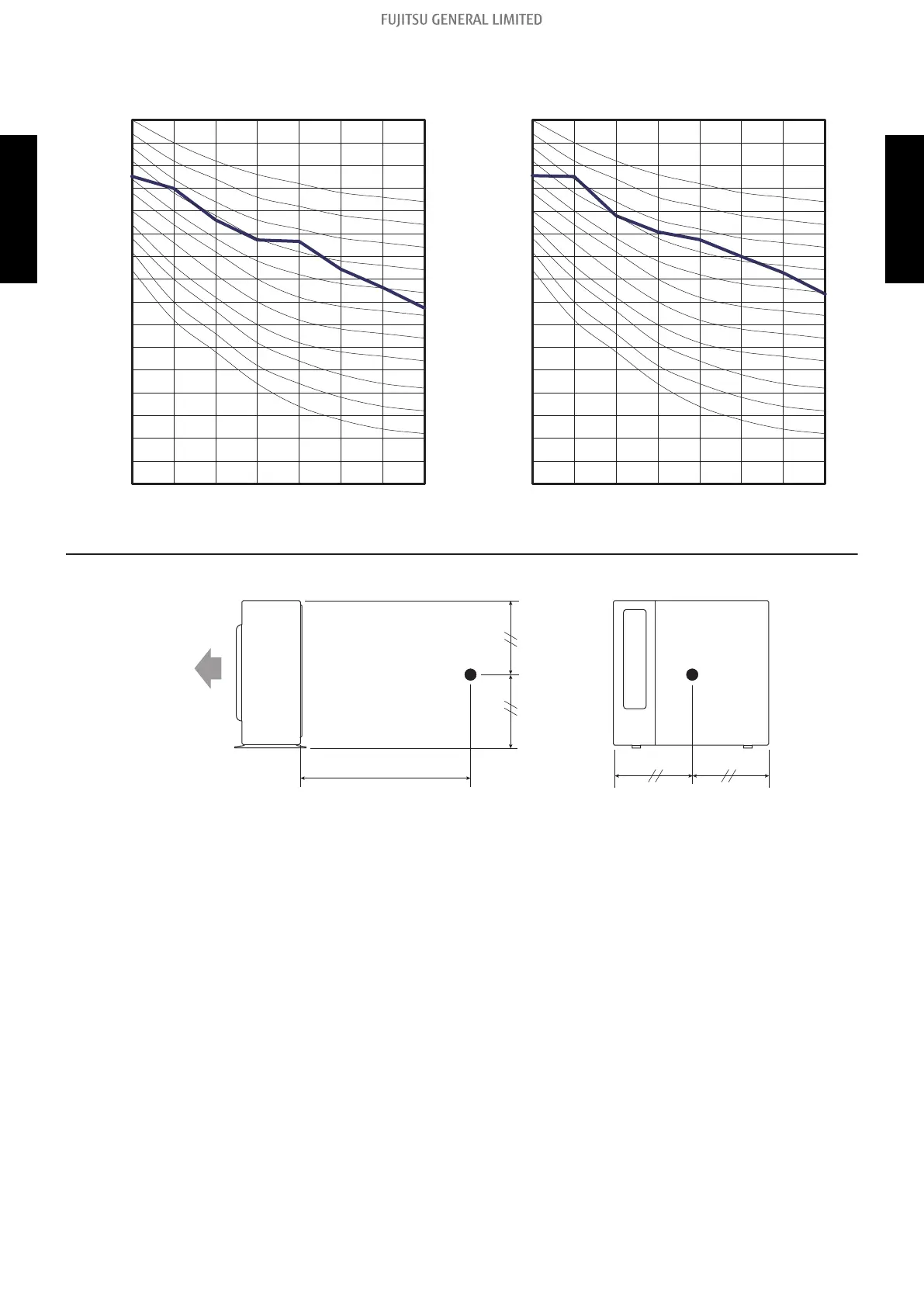

Fujitsu AOYG45KBTB - 10-2.Sound Level Check Point

¢
Model: AOYG54KBTB
 Cooling
0
1
0
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
0
1
0
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
10-2. Sound level check point
1 m
MicrophoneMicrophone
Rear
Airflow
Rear view
Side view
NOTE: Detailed shape of the actual outdoor unit might be slightly different from the one illustrated
above.
- 78 -
10-1. Noise level curve 10. Operation noise (sound pressure)
OUTDOOR UNIT AOYG36-54KBTB OUTDOOR UNIT AOYG36-54KBTB
