Fujitsu AOYG45KBTB User Manual

¢
Model: ARXG24KMLA (Static pressure mode 3)
Static pressure (Pa)
55 58 85 90 115 122 142 150
Fan speed
HIGH
m3/h — — — — — — 1,100 880
l/s — — — — — — 306 244
CFM — — — — — — 647 518
MED
m3/h — — — — 1,000 810 — —
l/s — — — — 278 225 — —
CFM — — — — 589 477 — —
LOW
m3/h — — 840 680 — — — —
l/s — — 233 189 — — — —
CFM — — 494 400 — — — —
QUIET
m3/h 660 525 — — — — — —
l/s 183 146 — — — — — —
CFM 388 309 — — — — — —
Airflow (m
3
/h)
130
70
50
Static pressure (Pa)
500 600 800 900 1,000 1,100 1,300

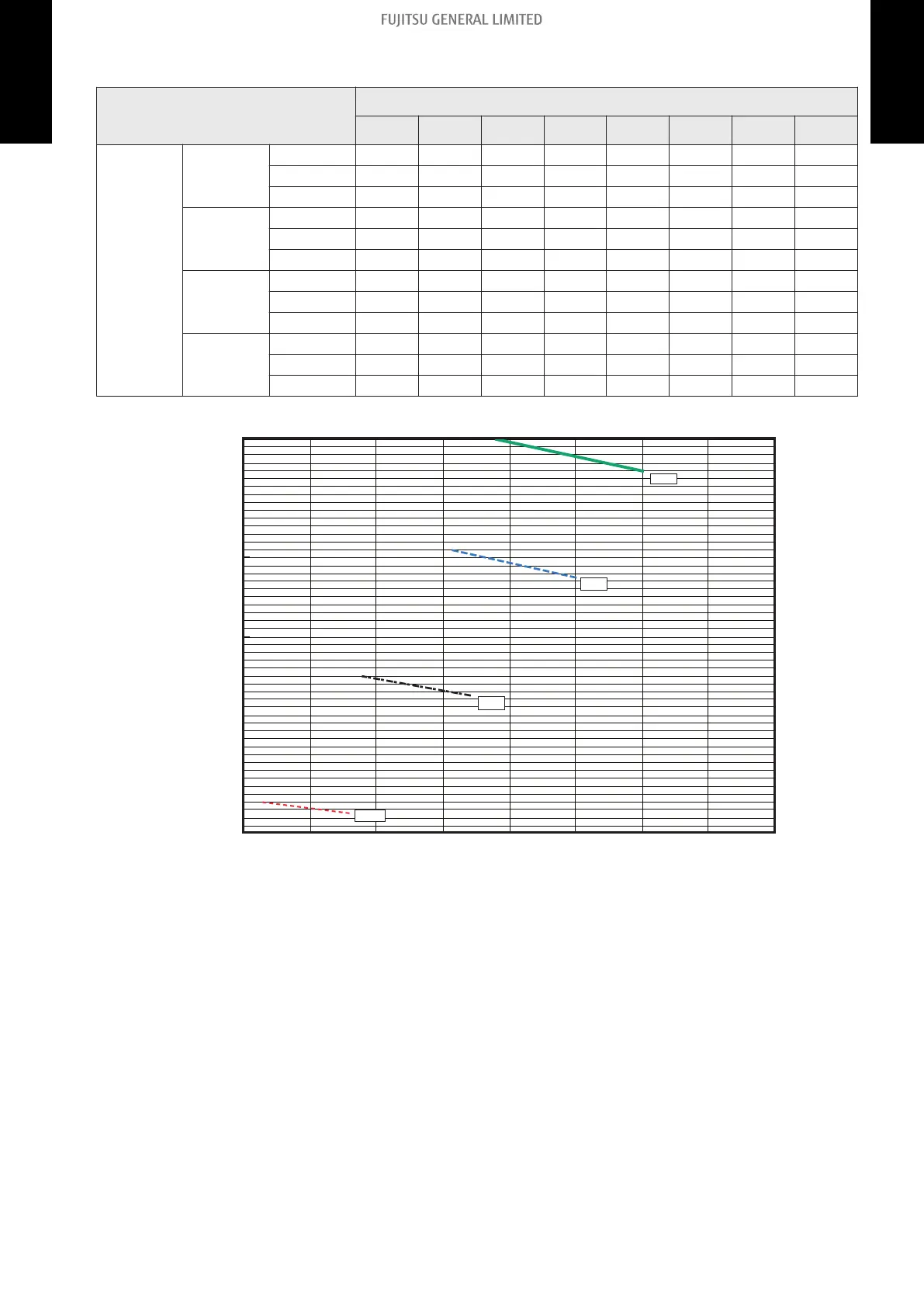

Q-h Characteristic curve
700
80
60
120
1,200
Hi
Med
Low
Quiet
90
140
150
110
100
- 34 -
6-2. Duct type 6. Fan performance
INDOOR UNITS SIMULTANEOUS MULTI INDOOR UNITS SIMULTANEOUS MULTI
