INDOOR UNIT
152008.04.15
57
59
60
62
64
63
54
56
55
61
53
51
52
58

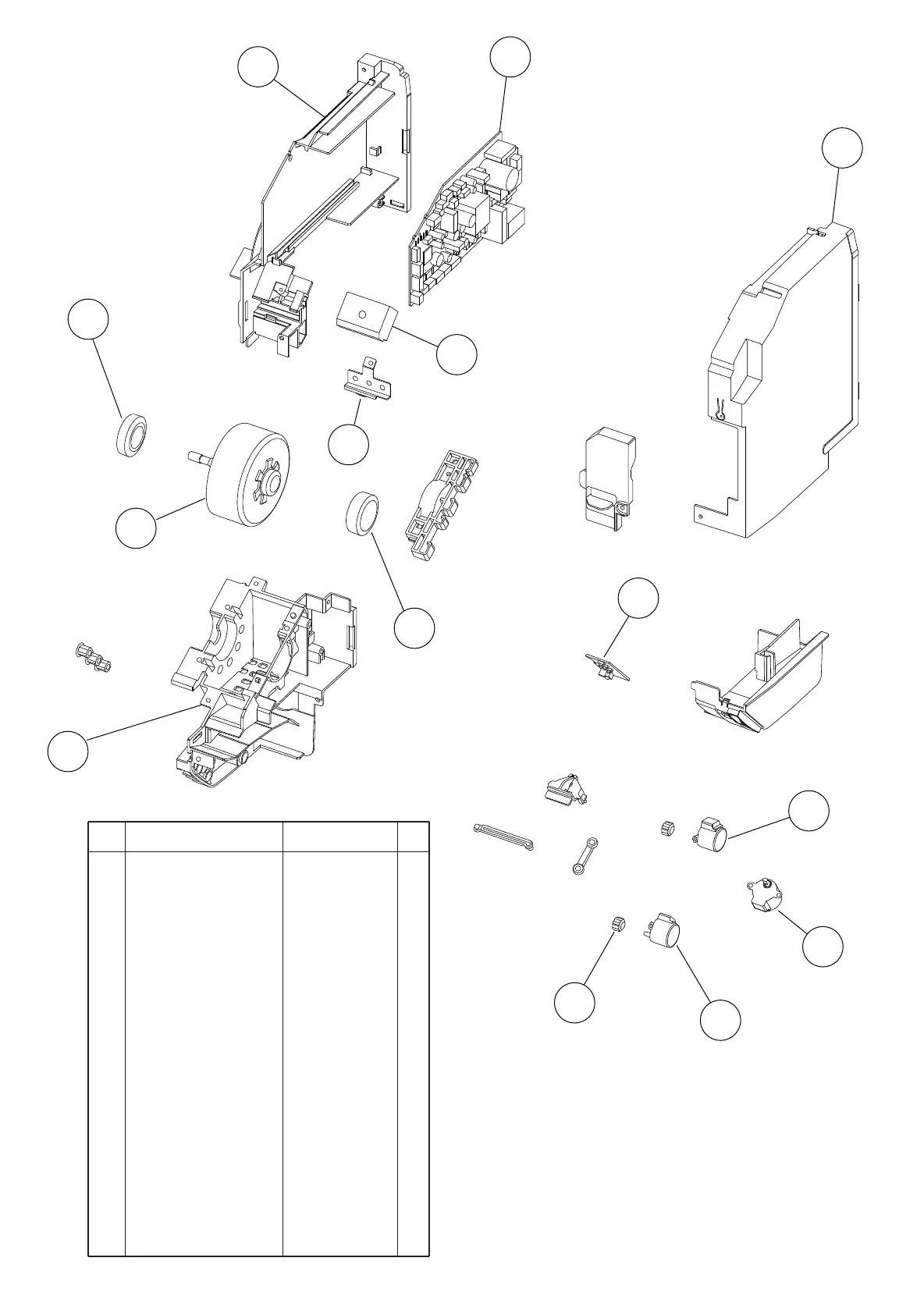

51 Controller PCB Assy 9707090451
52 Control Box 9314996016
53 Control Cover 9314997013
54 Motor Case 9314998010
55 Terminal Earth 9315028013
56 DC Brushless Motor 9602163021
57 Motor, Step 9900384029
58 Motor, Step 9900384036
59 Motor, Step 9900139063
60 Gear A 9309994003
61 Terminal 9900447014
-- Pipe Thermistor 9900389017
Room thermistor is tied to a Controller PCB assy.
63 Motor Cushion N 9312979011
64 Motor Cushion NR 9313168018
62 Indicator PCB Assy 9707210019
