Fujitsu AR*9LUAB

- (01 - 17) -
MULTI TYPE 2ROOM TYPE MULTI TYPE 2ROOM TYPE
4-2. CASSETTE MODEL
(Unit : mm)
MODELS : AU 12L, AU 14L, AU 18L
20 35
66
235
650
245
580
650
580
440
(Hanging bolt position) 606
(Hanging bolt position)
400
(Grille measurement)
650
440
131
245
54
111
47
66
46
60
86
Drain pipe
600
(Ceiling opening measurement)

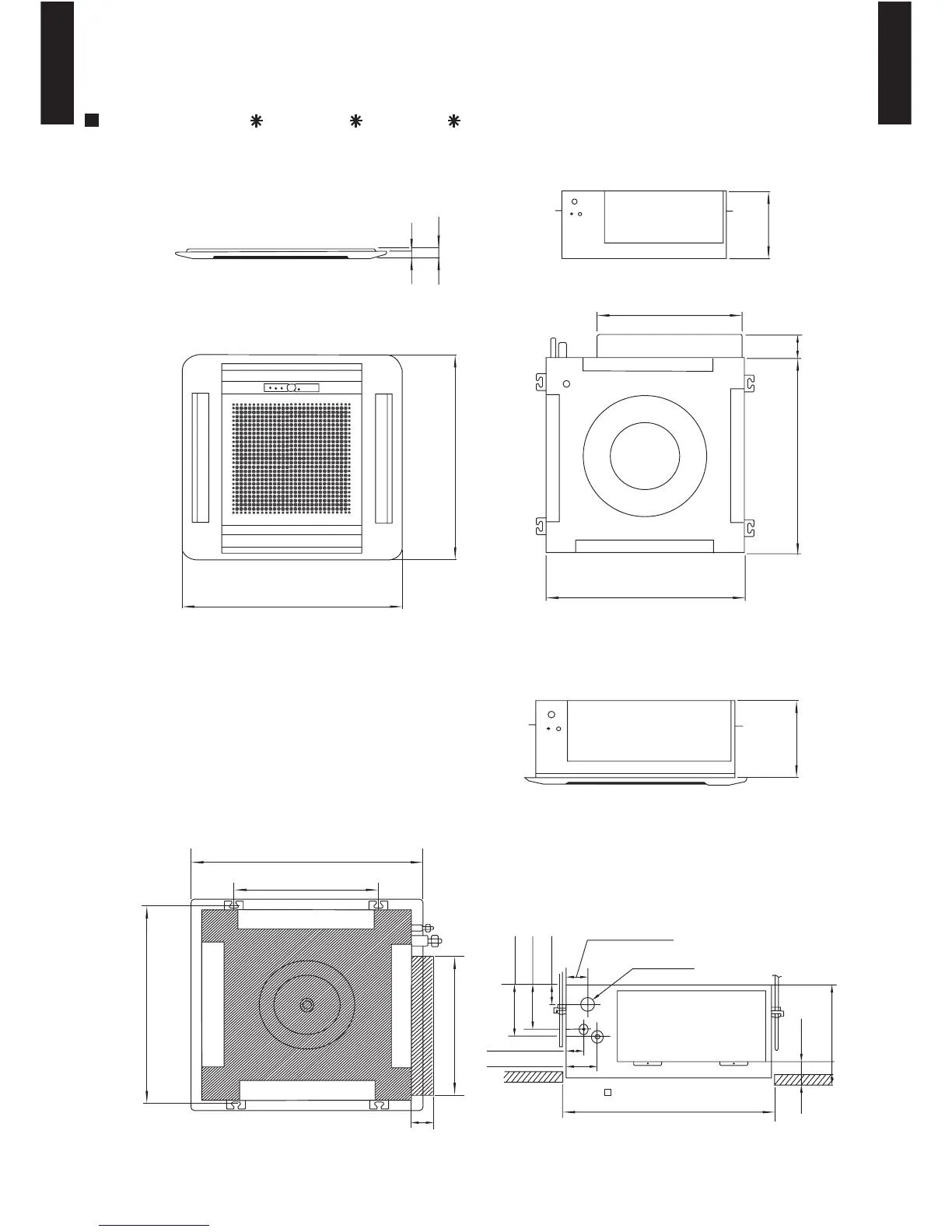

Side view
Top view
Bottom view
Bottom view (Panel)
