- (01 - 04) -
MULTI TYPE
2ROOM TYPE
MULTI TYPE
2ROOM TYPE

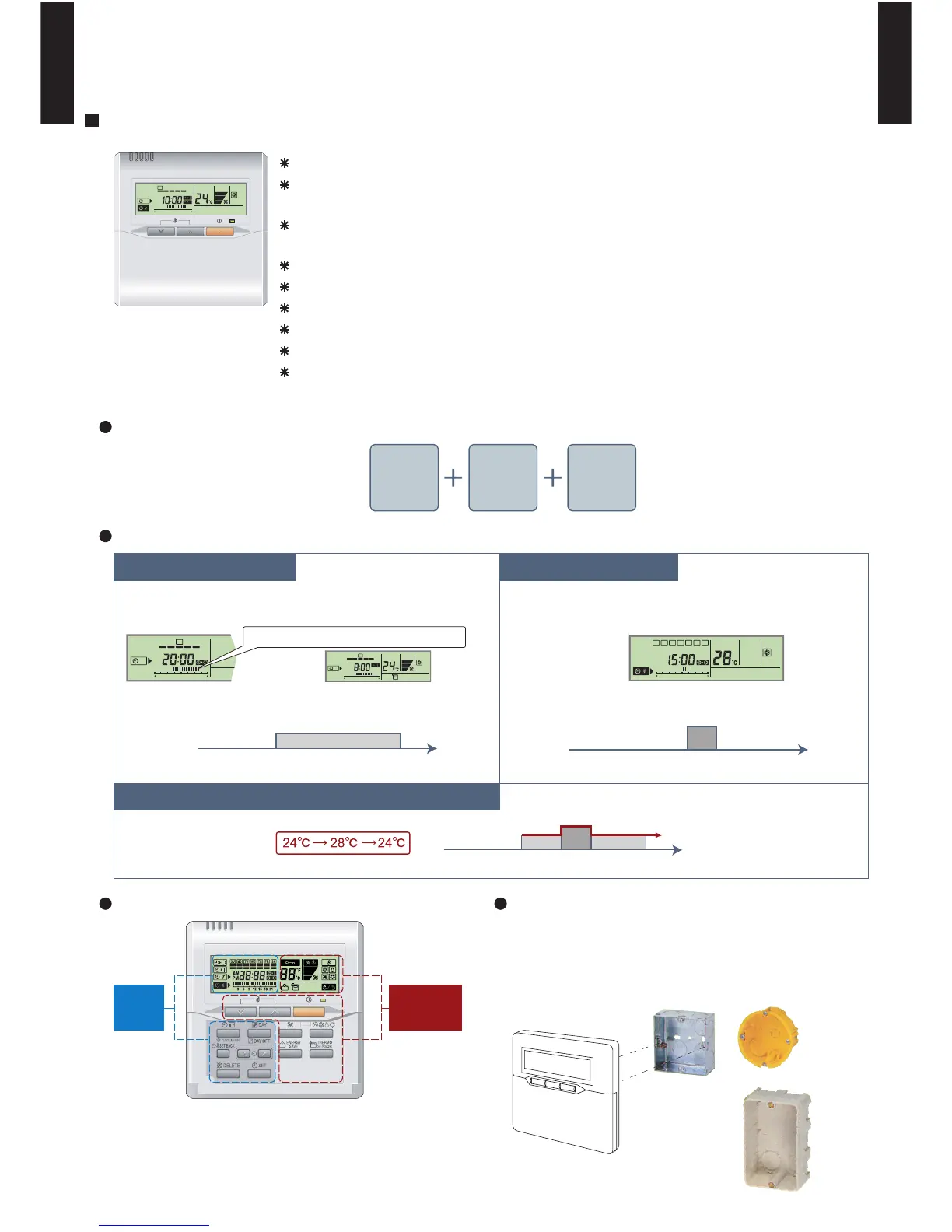

2. REMOTE CONTROLLER
2-1.
WIRED REMOTE CONTROLLER (FOR DUCT TYPE MODEL)
High performance and compact size
Built-in timers
Easy-to-understand operation Simple installation
FEATURES
Equipped with weekly timer as standard function.
(2 times Start / Stop per day for a week)
Various timer setup (ON / OFF / WEEKLY) are possible.
When setting up a timer, operation mode and a temperature
setup can be changed.
When a failure occurs,the error code is displayed. (Maximum of 16)
Error indication.(A maximum of 16 error histories are memorizable.)
Up to 16 indoor units can be simultaneously controlled.
Anti freeze and energy saving operation are possible.
Easy installation with a slim shape with no bulge in the back.
The room temperature can be controlled by being detected the temperature
accurately with built-in thermo sensor.
SU
MO
TU
WE
TH FR SA
7
3
12
6 9
15 18 21
European
switch box
JIS box
[
Variable timer control
]
Timer
area
Operation
area
0 3 6 9 12 15 18 21 Time
24°C
0 3 6 9 12 15 18 21 Time
28°C
SU
MO
TU
WE
TH FR SA
7
3
12
6 9
15 18 21
Easy-to-understand time bar display
Setup screen example
(Set to Wednesday: 8:00 to 20:00.)
Screen
after setup
SU
MO
TU
WE
TH FR SA
7
3
12
6 9
15 18 21
Setup screen example
(Set from Sunday to Saturday: 12:00 to 15:00, 28 °C.)
SU
MO
TU
WE
TH FR SA
3
12
6 9
15 18 21
The operation/display sections are zoned accord-
ing to time and operation, enabling variable pro-
gramming to match application.
Setback timerWeekly timer
At "Weekly timer" + "Set back timer" setup
Components are compatible with standard
switch boxes. Flat back construction allows
equipment to be installed wherever it is
needed.
Possible to set ON/OFF time to operate twice each day
of the week.
Possible to set temperature for two time spans and
for each day of the week.
24°C
0 3 6 9 12 15 18 21 Time
28°C
Wired
remote
controller
Weekly
timer
Setback
timer
Three functions are combined in
To Next Page
