• If multiple timers have been set, up/down arrows are
displayed in the message balloon. To check the target
timer function, press the [Cursor button (Up/Down)].
Off timer: Remaining 1.0 hour
• With pressing the [Cursor button (Left/Right)], you can
check the other icon functions when several icons are
displayed on the “Monitor” screen.
• When you press the [Enter button] again, the message
balloon is closed.
• If there is no additional button operation for 3 seconds,
the icon check function is nished.
(3) Operating condition display
Shows the operating mode, set temperature, and fan
speed that are currently working or set.
• Mode display: Operating mode is displayed.
• Set temp. display: Set temperature is displayed.
• Fan display: Fan speed is displayed.
(4) Operation guidance display
Shows the current operable items and the button to be pressed.
(5) Screen switch guidance display
Any combination of [Menu button] mark (
) with name
of switchable screen by pressing the [Menu button] or
[Screen switch button (Left/Right)] mark (
or )
with name of switchable screen by pressing the [Screen
switch button (Left/Right)] is displayed.

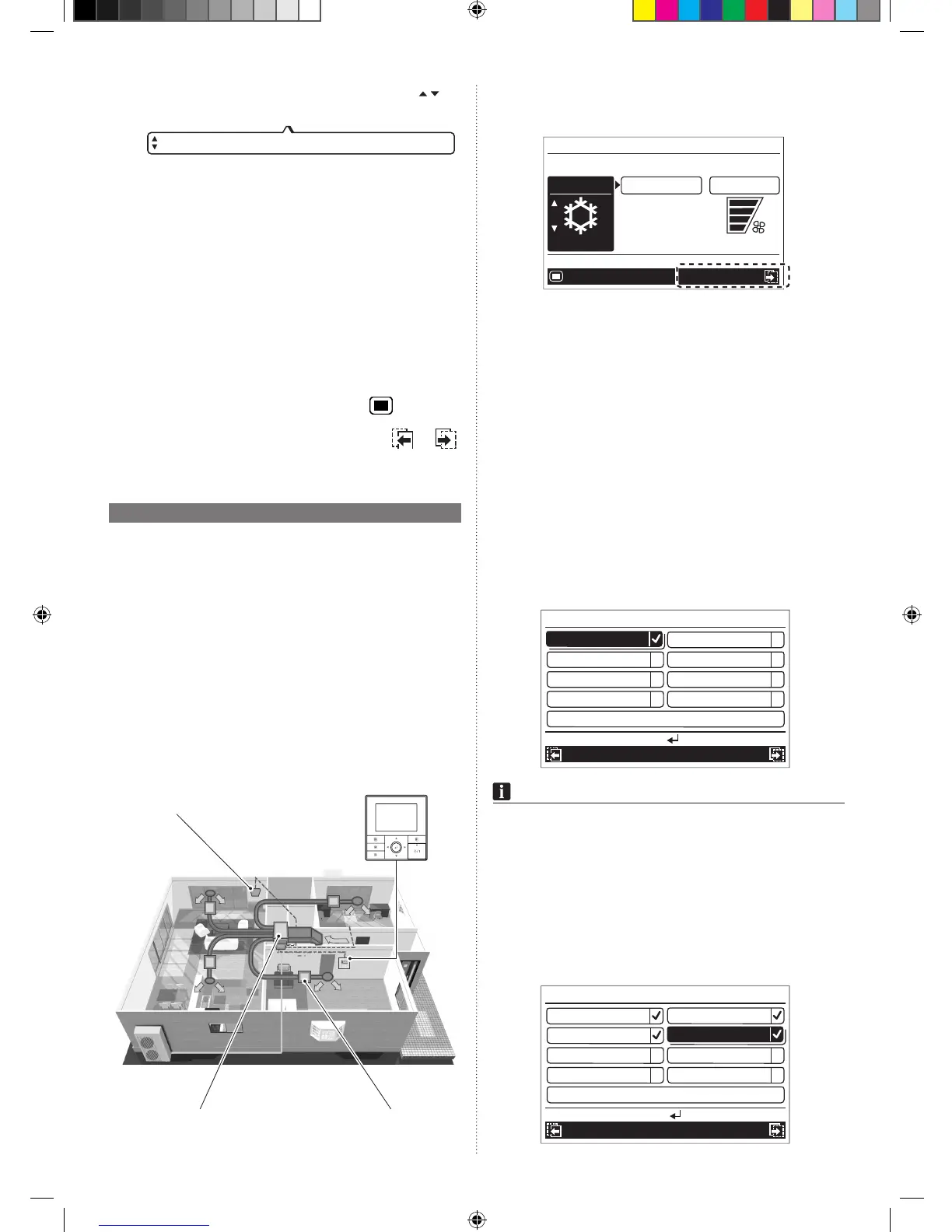

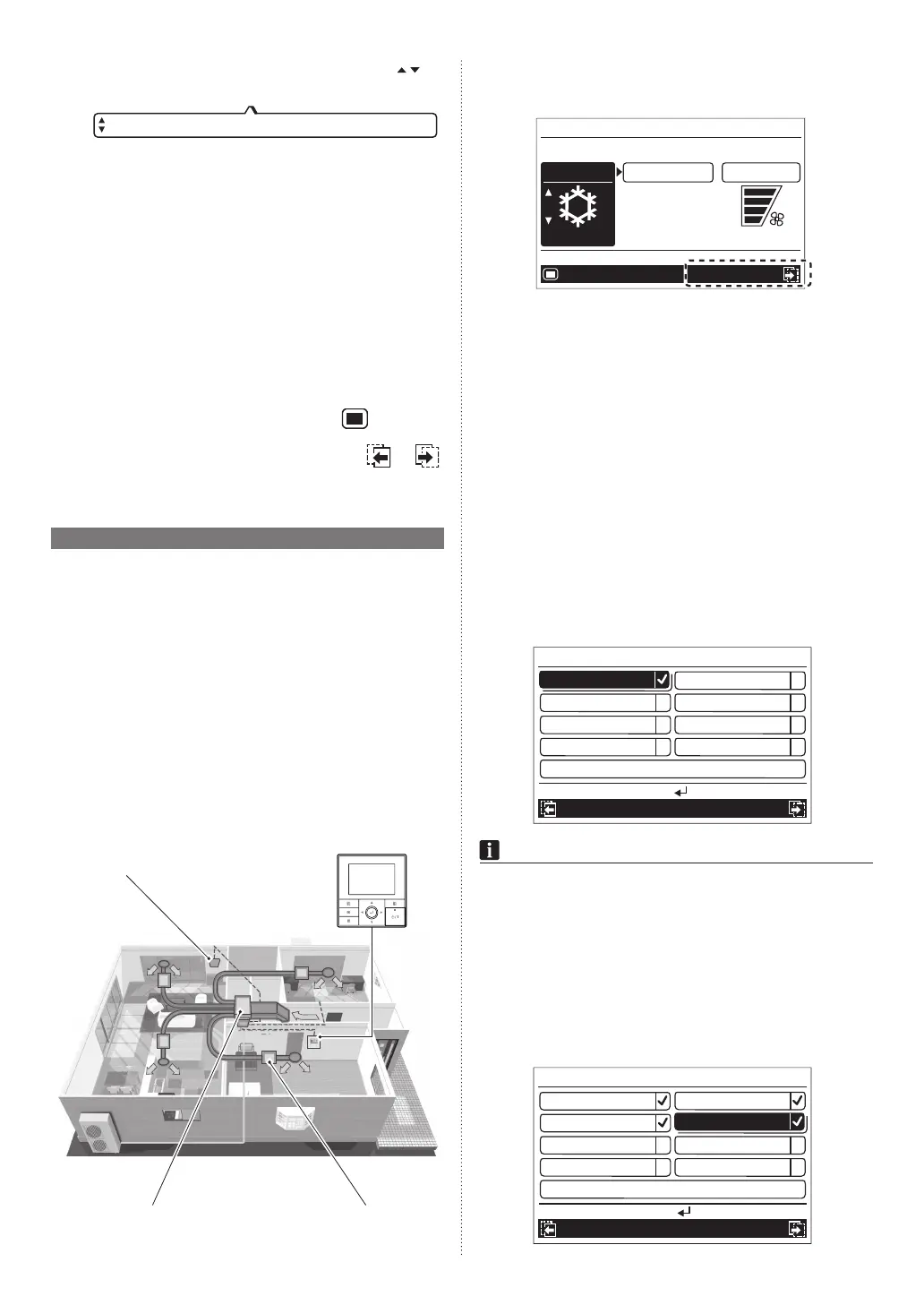

1-5. About zone control *
“Zone control” enables an e󰀩cient air-conditioning by select-
ing only specic zone from some divided zones in the indoor
space.
Application or non-application of air conditioning is controlled
by opening or closing of pre-installed damper(s). And an area
that is air-conditioned with one damper is defined as one
zone.
Up to 8 zones can be set by installing maximum of 8 dampers
in one air-conditioning system.
Also, up to 5 room-temperature sensors can be installed in
one air-conditioning system. With specifying most suitable
sensor among those sensors, it enables more comfortable
room-temperature control.
Construction example
Room-temperature
sensor
Damper
Wired remote controller
Duct-type air conditioner and
zone-control interface unit
If your air-conditioning system is zone-controlled, related set-
ting screens are prepared, and the switchable setting screen
name is displayed in the “Monitor” screen as follows:
Mode
Menu
Cool
Monitor
Set temp.
Fan
High
°
C
26
Mo 10:00
Zone
(
single
)
There are 2 types of zone-control settings; “Zone (single)”
controls each individual zone, and “Zone (group)” controls
some selected zones all at once.
You can also register desired name for each zone or room-
temperature sensor.
For the settings, refer to “5-9. Zone user setting”.
z
1-5-1. Zone (single) setting
Enables application or non-application of the air conditioning
for each zone, and selection of the room-temperature sensor.
1
In “Monitor” screen, press [Screen switch button (Right)].
“Zone (single)” screen opens.
Zones and room-temperature sensor currently connected
are displayed.
As an setting example, Zone 1 to 8 are supposed to be
connected in following instructions.
Zone
(
single
)
Zone 1
Zone 3
Zone 5
Zone 7
Zone 4
Zone 2
Zone 6
Zone 8
Sensor Indoor unit
Zone
(
group
)
Mo 10:00
On:
Monitor
NOTES
• If any names have been registered for zones and sensors
in [Zone user setting], the registered names are displayed
on this screen.
• Only connected zones and sensor are displayed.
2
Select zones applying or non-applying the air conditioning
as follows:
Select the zone with the [Cursor button], and press the
[Enter button].
Zones marked with a check are air-conditioned.
Zone
(
single
)
Zone 4
Zone 3
Zone 5
Zone 7
Zone 1
Zone 2
Zone 6
Zone 8
Sensor Indoor unit
Zone
(
group
)
Mo 10:00
Monitor
Off:
En-5
