Fujitsu ARU12RLF Service Manual

INDOOR UNIT
COMPACT CASSETTE
AUU9RLF
AUU12RLF
AUU18RLF
2010.06.17 10
Drain hose I.D. 3/4 in. , O.D. 1-1/16 in.

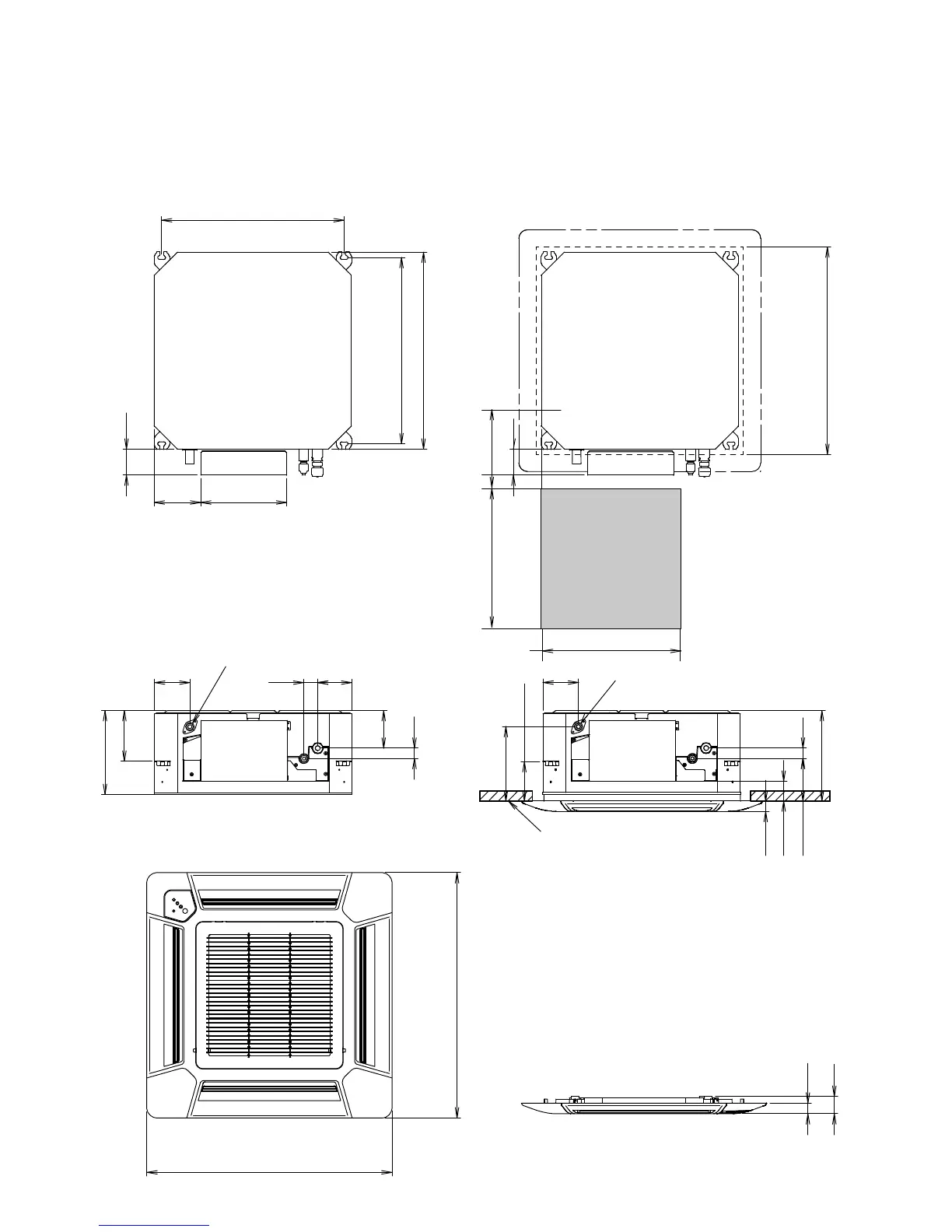

Unit : inch (mm)
20-7/8 (530): Hanging bolt position
4-1/32 (102)
5-5/16
(135)
9-27/32 (250)
27-9/16 (700)
27-9/16 (700)
2-15/16 (75)
1-3/16 (30)
1-3/16 (30)
10-5/16 (262)
21-1/4 (540): Hanging bolt position
: Ceiling openings
• Decoration panel mounting state
Top view
5-29/32 to 7-7/8 (150 to 200)Min. 17-23/32 (450)
Min. 17-23/32 (450)
Maintenance space
Side view
8-15/32 (215)
4-27/32 (123)
2-9/32 (58)
4-1/2 (114)
5-3/4 (146)
4-1/4 (108)
4-1/32 (102)
9-21/32 (245)
1-3/16 (30)
1-9/16 (40)
3-29/32 (99)
Drain port
Ceiling
Drain port
Be sure to leave
maintenance space
for future service
at the designated
position.
Bottom view
1-3/16 (30) 1-15/16 (49)
Side view
