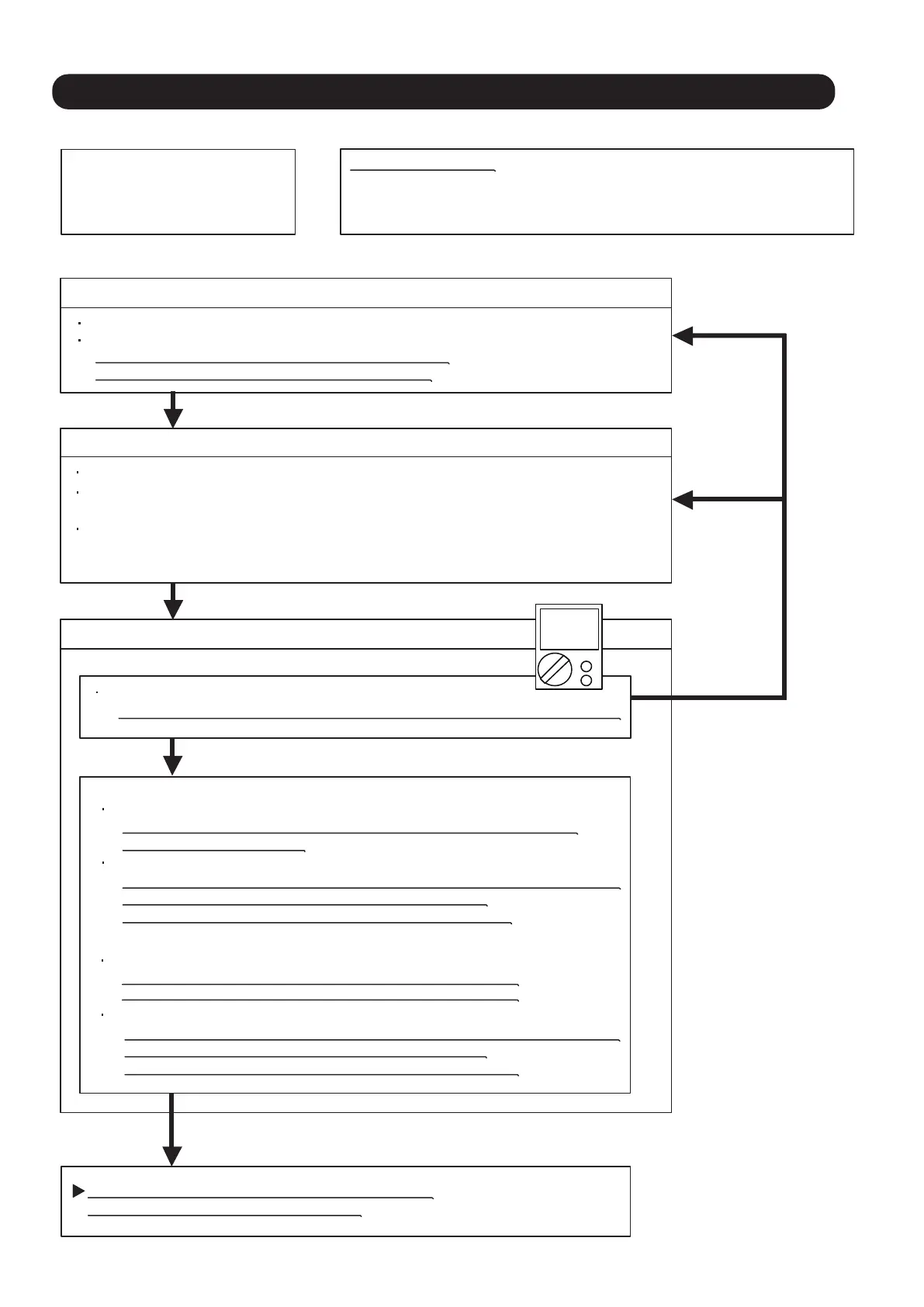

Trouble shooting 34
Forecast of Cause:
OK
OK
OK
YES
Indoor Unit - No Power
1. Power Supply failure 2. External cause
3. Electrical Components defective
Check Point 1 : Check Installation Condition
Isn’t the breaker down?
Check loose or removed connection cable.
>>If abnormal condition is found, correct it by referring
to Installation Manual or Data & Technical Manual.
Check Point 2 : Check external cause at Indoor and Outdoor (Voltage drop or Noise)
Instant drop ----- Check if there is a large load electric apparatus in the same circuit.
Momentary power failure ----- Check if there is a defective contact or leak current in
the power supply circuit.
Noise ----- Check if there is any equipment causing harmonic wave near electric line.
(Neon bulb or electric equipment that may cause harmonic wave)
Check the complete insulation of grounding.
02-35
2-3 TROUBLESHOOTING WITH NO ERROR CODE
Check Point 3 : Check Electrical Components
NO
Check the voltage of power supply.
>> Check if AC198 - 264V appears at Indoor Unit Terminal 1 - 2 (Power Supply).
Check Varistor in Power supply PCB.
>> If Varistor is defective, there is a possibility of an abnormal power supply.
Check the correct power supply and replace Varistor.
Upon checking the normal power supply, replace Varistor.
If the symptom does not change by above Check 3,
replace Power supply PCB (Indoor unit).
Check Fuse in Power supply PCB.
>> If Fuse is open, check if the wiring between Terminal and
Power supply PCB (Indoor unit) is loose, and replace Fuse.
AC
Check Fuse in Controller PCB
>>If Fuse is open, check if the wiring between Terminal and Main PCB
is loose, and replace Fuse.
Check Varistor in Controller PCB.
>>If Varistor is defective, there is a possibility of an abnormal power supply.
Check the correct power supply and replace Varistor.
Upon checking the normal power supply, replace Varistor.
For AS type
For AR /AU type
To Next Page
