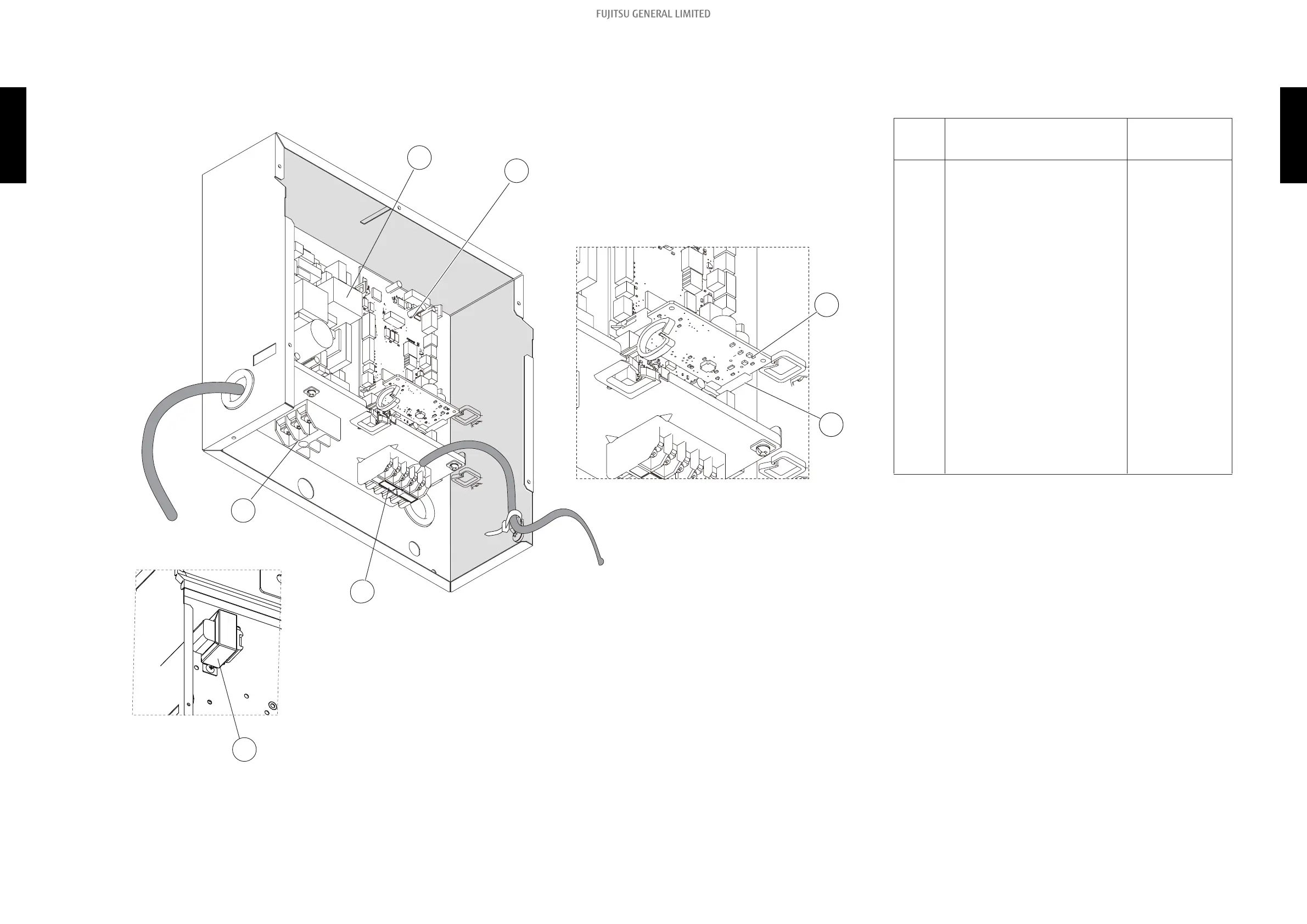

15
14
11
11 Main PCB (22) 9710624124
11 Main PCB (24) 9710624223
15 Terminal 3P 9306489045
16 Terminal 5P 9900896003
13 Communication PCB 9710019005
12 Holder 0600063023
14 Power supply PCB 9710661013
17 Reactor assy 9707457049
Ref.
Description
Part number
16
13
12
15
3-3. Models: ARXG22KMLA and ARXG24KMLA - (02-15) - 3. Indoor unit parts list
