Fujitsu AS*24R - 5 Diagrams; Refrigerant System Diagram

– 69 –
5. DIAGRAM

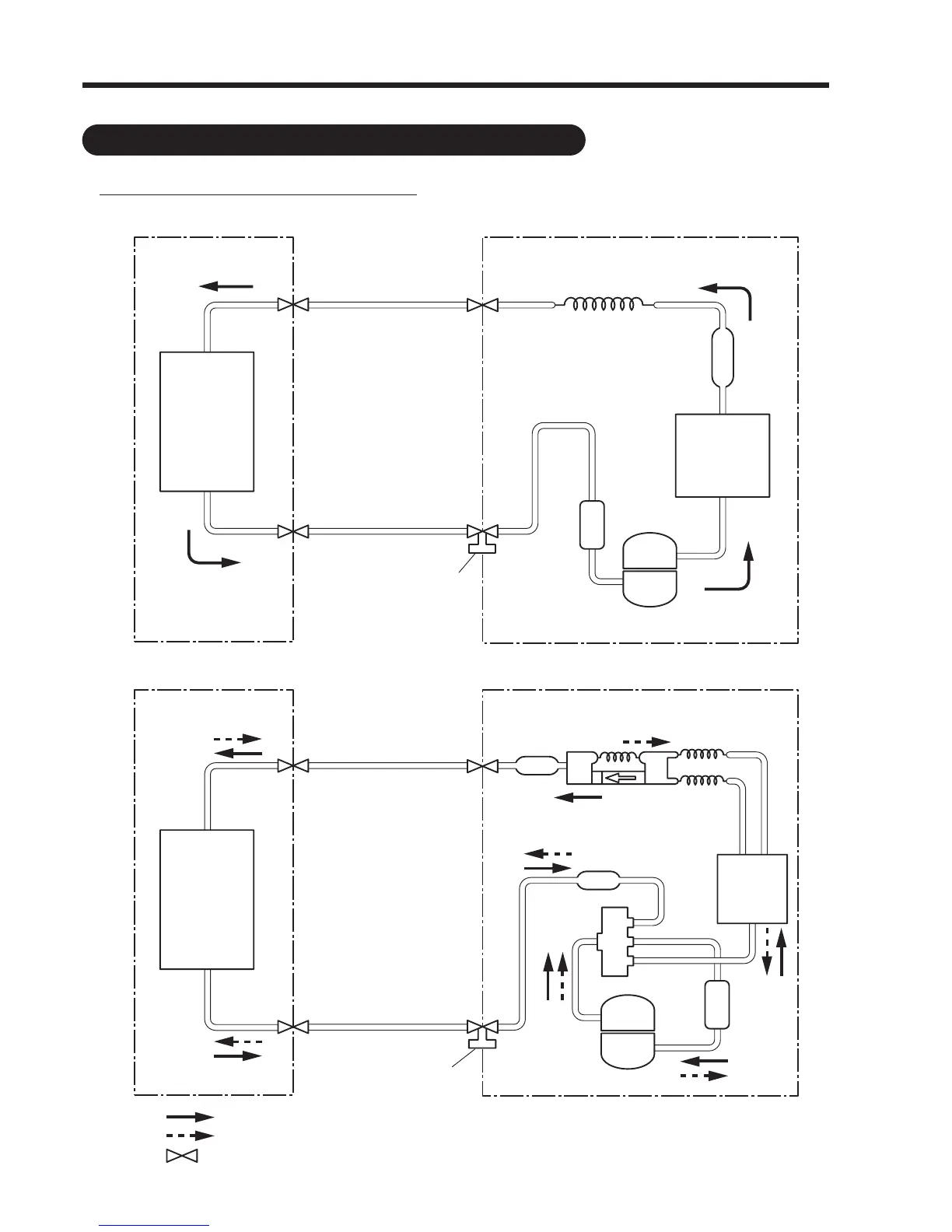

5.1 REFRIGERANT SYSTEM DIAGRAM
5.1.1 COMPACT SII SERIES
Refrigerant pipe
ø 9.53mm(3/8")
Refrigerant pipe
ø 6.35mm(1/4")
Capillary tube
Charging valve
3-Way
valve
2-Way valve
Compressor
Strainer
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
Evaporator
Refrigerant pipe
ø 9.53mm(3/8")
Refrigerant pipe
ø 6.35mm(1/4")
Charging valve
Cooling
Heating
: Flare coupling
3-Way
valve
4-Way
valve
2-Way
valve
Strainer
Muffler
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Models : AS ✽ 7A / AO ✽ 7A
Models : AS ✽ 7R / AO ✽ 7R
