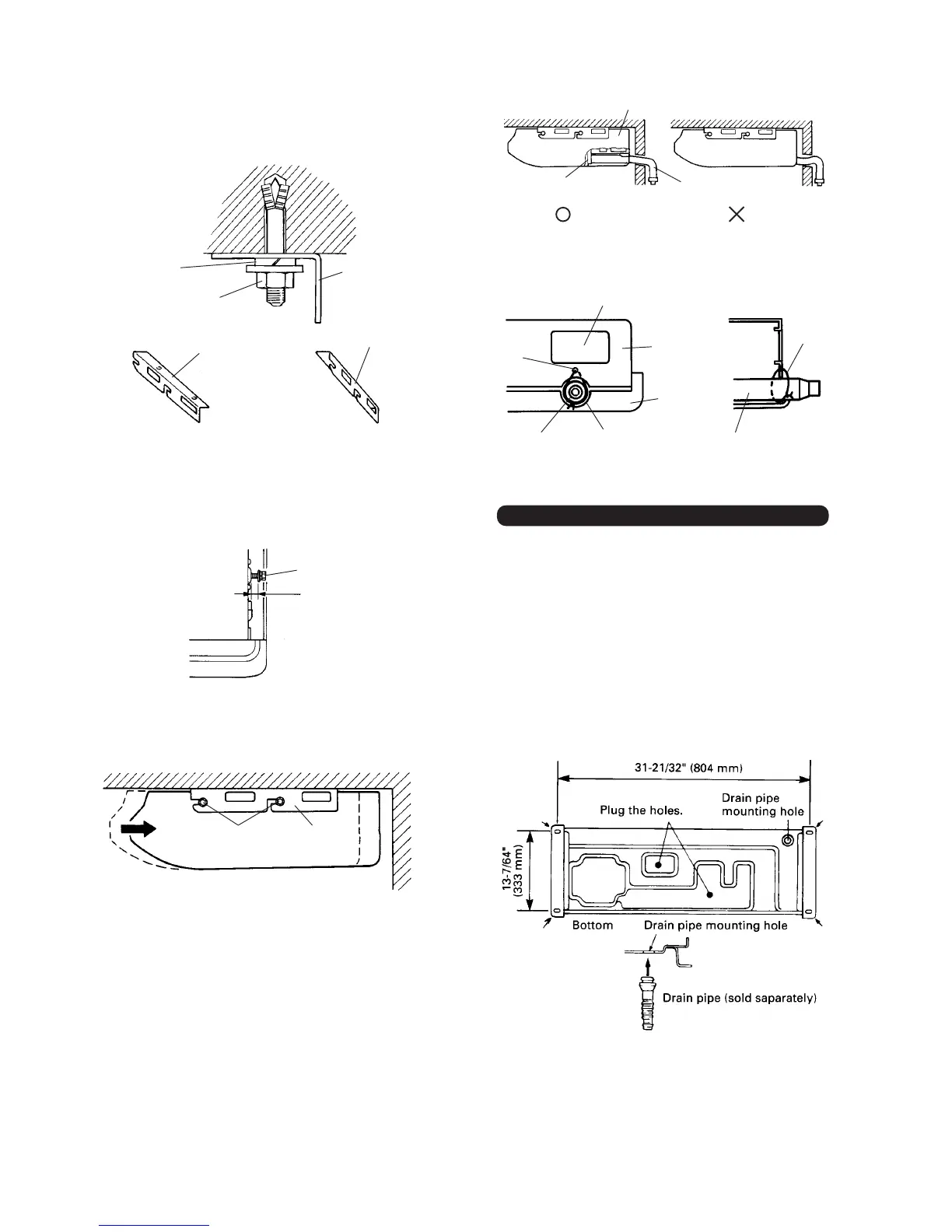

3. INSTALLING BRACKETS
Install the brackets with nuts, washers and spring
washers (Fig. 17).
When drain hose is arranged backward.
Secure the drain hose with the VT wire (Fig.21).
Fig.17
Spring washer
Special nut
Bracket
Bracket (Left)
Bracket (Right)
Fig. 20
Remove the hole cover.
Drain hoseArrange the drain hose
lower than this portion.
OK
NO
Fig. 21
Piping hole
Base (Bottom)
VT wire
hole
Intake
grille
VT wire
4. INSTALLING INDOOR UNIT
Reset the hex bolts as shown in Fig. 18.
5. INSTALL THE DRAIN HOSE
Select whether the drain hose will be connected to the
left or right side (Fig. 5).
Insert the drain hose into the drain pan, then secure
the drain hose with a nylon fastener (Fig. 8).
Wrap the insulation (drain hose) around the drain
hose connection (Fig. 9).
Be sure to arrange the drain hose so that it is leveled
lower than the drain hose connecting port of the
indoor unit (Fig. 20).
Apply the indoor unit to the brackets (Fig. 19).
Now, securely tighten the hex bolts in both sides.
Fig.18
Indoor unit
Hex bolt
5/16" to 1/2"
(8 to 13mm)
Fig.19
Bolt
Bracket
Indoor unit
Cut the grille
Drain hose
Pass the drain hose
through here.
3. OUTDOOR UNIT INSTALLATION
• When the outdoor unit will be exposed to strong
wind, fasten it with bolts at the places indicated by
the arrows. (Fig. 22)
• Since the drain water flows out of the outdoor unit
during heating operation, install the drain pipe sold
separately and connect it to an commercial 16 mm
hose. (Heat & Cool model only)
• When installing the drain pipe, plug all the holes (•
holes at two places) other than the drain pipe
mounting hole in the bottom of the outdoor unit
with putty so there is no water leakage. (Fig. 22)
(Heat & Cool model only)
Fig. 22
