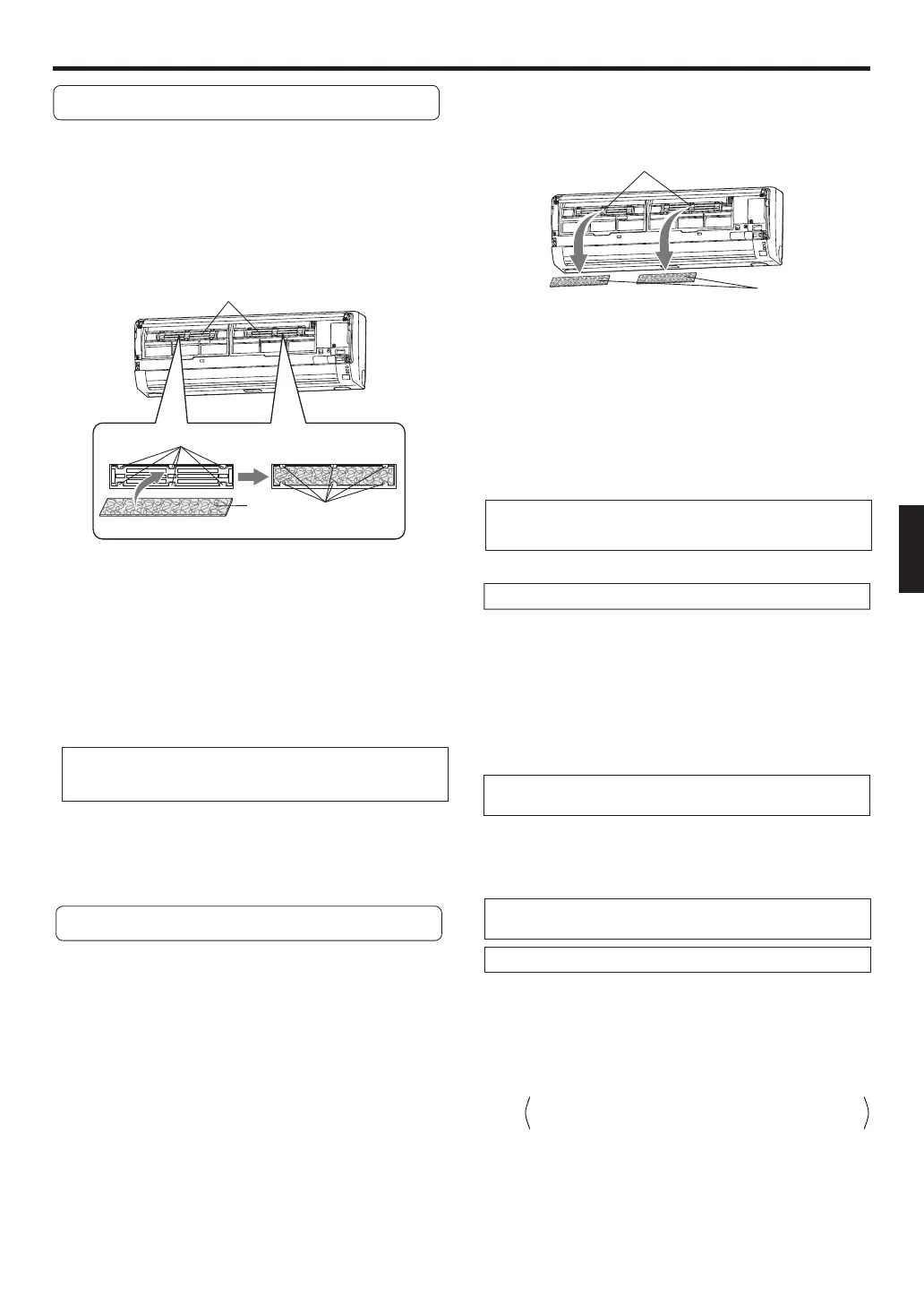

Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
fi lters.
2. Attach the air cleaning fi lter to the frame
of the front panel.
● Attach the fi lter on the inside of the tabs (6 places) so as
not to stick out.
Air cleaning fi lter frame
Tabs (6 places)
Tabs
(6 places)
Air fi lter
(In the above fi gure, the intake grille is omitted for the
explanation)
3. Install the two Air fi lters and close the
Intake Grille.
● Don't operate the air conditioner with being opened the
intake grille.
● When air cleaning fi lters are used, the effect will increased by
setting the fan speed to “High”.
2. Remove the air cleaning fi lters attached to
the frames of the front panel.
Air fi lter
Air cleaning fi lter frame
3. Replace them by two new Air cleaning
fi lters.
1 Remove the old air cleaning fi lters in reverse order of their
installation.
2 Install in the same way as for installation of the air cleaning
fi lter set.
4. Install the two Air fi lters and close the
Intake Grille.
● Don't operate the air conditioner with being opened the
intake grille.
About the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER (one sheet)
● The Air Cleaning Filters are disposable fi lters. (They can not
be washed and reused.)
● For storage of the Air Cleaning Filters, use the fi lters as soon
as possible after opening the package.
(The air cleaning effect decreases when the fi lters are left in
the opened package)
● Generally, the fi lters should be exchanged about every three
months.
Please buy designed air cleaning fi lters (UTR-FA16) (Sold
separately) to exchange the used dirty air cleaning fi lter.
[Negative air ions deodorizing fi lter (one sheet) — light blue]
● The fi lter should be exchanged about every three years so
as to maintain the deodorizing effect.
Please buy designed deodorizing fi lter (UTR-FA16-2) (Sold
separately) when exchanging the fi lter.
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the fi lter
in the follow way once three months.
1 Remove the deodorizing fi lter.
2 Clean with water and dry in the air.
1) Flush the fi lter with high-pressure hot water until the
surface of the fi lter is covered with water. Please fl ush
with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it will
damage the deodorizing effect.
2) Rinse with water fl ow.
3) Dry in shade.
3 Reinstall the deodorizing fi lter.
CLEANING AND CARE
Replacing dirty Air cleaning fi lters
Replace fi lters with the following components (purchased sepa-
rately).
●
POLYPHENOL CATECHIN AIR CLEANING FILTER : UTR-FA16
● Negative air ions deodorizing fi lter: UTR-FA16-2
1. Open the Intake Grille and remove the Air fi l-
ters.
