En-11

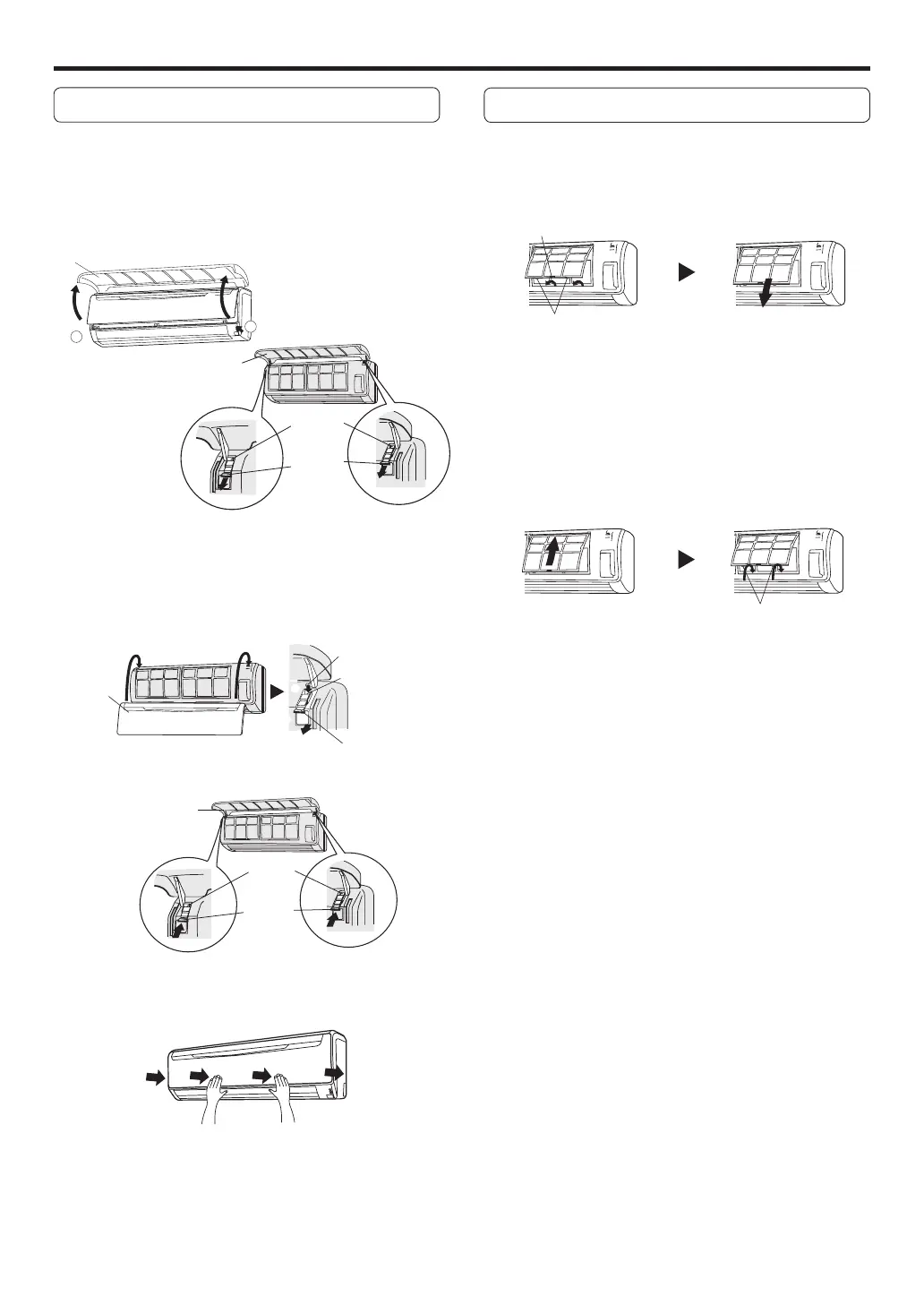

Cleaning the Intake Grille
1. Remove the Intake Grille.
1 Place your fi ngers at both lower ends of the grille panel,
and lift forward; if the grille seems to catch partway through
its movement, continue lifting upward to remove.
2 Pull past the intermediate catch and open the Intake Grille
wide so that it become horizontal.
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the unit with warm
water, then dry with a clean, soft cloth.
3. Replace the Intake Grille.
1 Pull the knobs all the way.
1
2
Intake
Grille
Bearing
Mounting shaft
Knob
2 Hold the grille horizontal and set the left and right mounting
shafts into the bearings at the top of the panel.
Mounting shaft
Knob
Intake Grille
3 Press the place where the arrow on the diagram indicates
and close the Intake Grille.
CLEANING AND CARE
Cleaning the Air Filter
1. Open the Intake Grille, and remove the air
fi lter.
Lift up the air fi lter’s handle, disconnect the two lower tabs,
and pull out.
2. Remove dust with a vacuum cleaner or by
washing.
After washing, allow to dry thoroughly in a shaded place.
3. Replace the Air Filter and close the Intake
Grille.
1 Align the sides of the air fi lter with the panel, and push in
fully, making sure the two lower tabs are returned properly
to their holes in the panel.
2 Close the Intake Grille.
(For purposes of example, the illustration shows the unit without
Intake Grille installed.)
● Dust can be cleaned from the air fi lter either with a vacuum
cleaner, or by washing the fi lter in a solution of mild detergent
and warm water. If you wash the fi lter, be sure to allow it to
dry thoroughly in a shady place before reinstalling.
● If dirt is allowed to accumulate on the air fi lter, air fl ow will
be reduced, lowering operating effi ciency and increasing
noise.
● During periods of normal use, the Air Filters should be cleaned
every two weeks.
Intake Grille
Air fi lter handle
Hooks (two places)
Hooks (two places)
Intake Grille
1
2
2
1
Mounting shaft
Knob
9315345332-03_OM.indb 119315345332-03_OM.indb 11 2/25/2013 10:09:50 AM2/25/2013 10:09:50 AM
