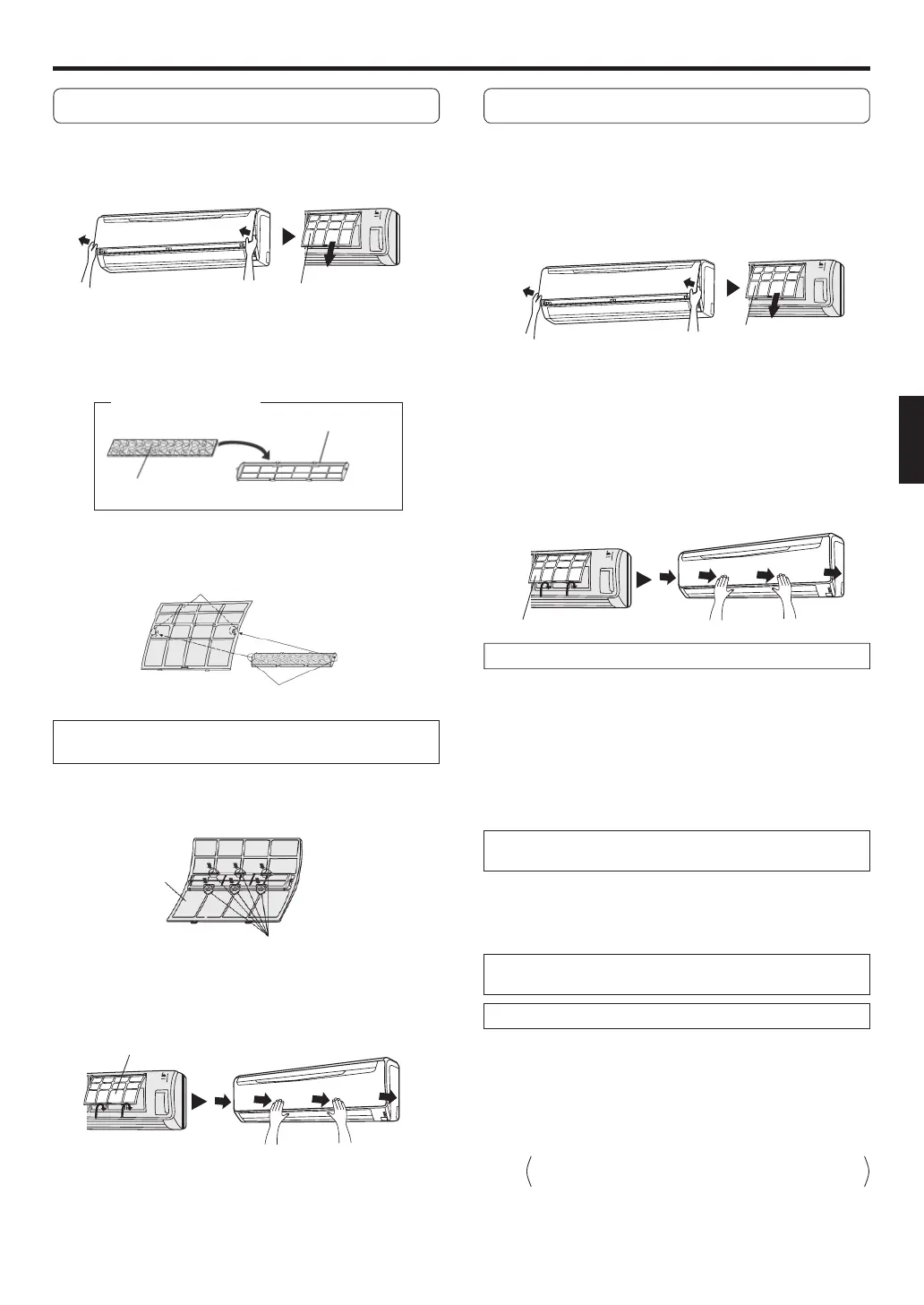

Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
fi lters.
2. Install the Air cleaning fi lter set (set of 2).
1 Set the air cleaning filter into the air cleaning filter
frame.
2 Engage the latch at both ends of the fi lter with the two
hooks at the rear of the air cleaning fi lter frame.
Take care that the air cleaning fi lter does not project beyond
the frame.
3 Engage the four fi xing locations at the top and bottom of the
air cleaning fi lter frame with the hooks of the air fi lter.
3. Install the two Air fi lters and close the
Intake Grille.
● When air cleaning fi lters are used, the effect will increased by
setting the fan speed to “High”.
Replacing dirty Air cleaning fi lters
Replace fi lters with the following components (purchased separately).
● POLYPHENOL CATECHIN AIR CLEANING FILTER : UTR-
FA13-1
● Negative air ions deodorizing fi lter: UTR-FA13-2
1. Open the Intake Grille and remove the Air
fi lters.
2. Replace them by two new Air cleaning
fi lters.
1 Remove the old air cleaning fi lters in reverse order of their
installation.
2 Install in the same way as for installation of the air cleaning
fi lter set.
3. Install the two Air fi lters and close the
Intake Grille.
In regard to the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER (one sheet)
● The Air Cleaning Filters are disposable fi lters. (They can not
be washed and reused.)
● For storage of the Air Cleaning Filters, use the fi lters as soon
as possible after the package has been opened.
(The air cleaning effect decreases when the fi lters are left in
the opened package)
● Generally, the fi lters should be exchanged about every three
months.
Please buy delicated air cleaning fi lters (UTR-FA13-1) (Sold
separately) to exchange the used dirty air cleaning fi lters.
[Negative air ions deodorizing fi lter (one sheet) — light blue]
● The fi lters should be exchanged about every three years so
as to maintain the deodorizing effect.
● Filter frame is not a one-off product.
Please buy delicated deodorizing fi lter (UTR-FA13-2) (Sold
separately) when exchanging the fi lters.
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the fi lter
in the follow way once three months.
1 Remove the deodorizing fi lter.
2 Clean with water and dry in the air.
1) Flush the fi lters with high-pressure hot water until the
surface of the fi lters are covered with water. Please
fl ush with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it will
damage the deodorizing effect.
2) Rinse with water fl ow.
3) Dry in shade.
3 Reinstall the deodorizing fi lter.
Air cleaning fi lter set
Air cleaning fi lter frame
Air cleaning fi lter
Hook (2 places at the rear)
Latch (2 places)
Rear of the fi lter
Fixing location, hook (6 places)
CLEANING AND CARE
Air Filter
(Right & Left)
Air Filter
(Right & Left)
Air Filter(Right & Left)
Air Filter
(Right & Left)
