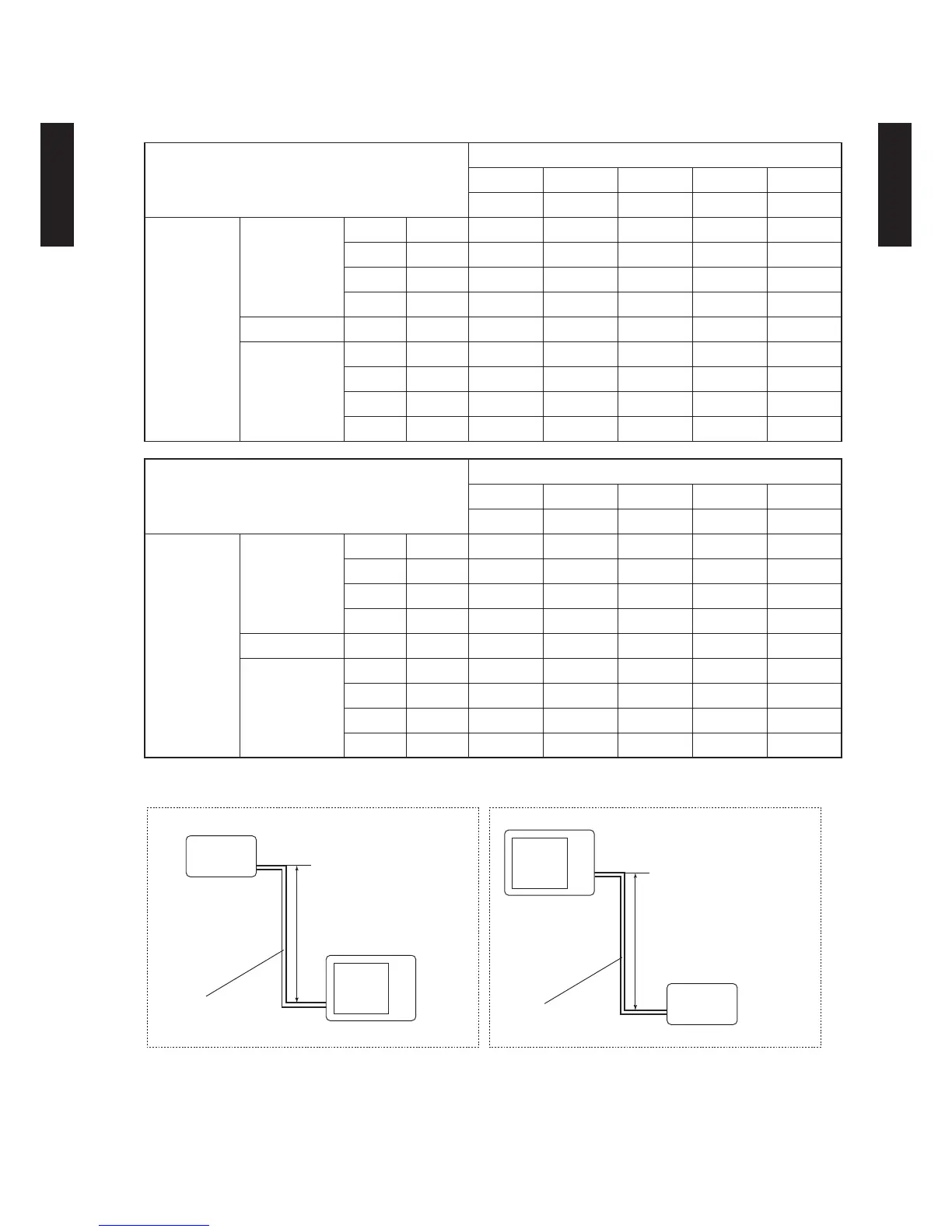

OUTDOOR UNIT AOU9-15RLS3H OUTDOOR UNIT AOU9-15RLS3H
CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
MODEL

: AOU9RLS3H, AOU12RLS3H
Height difference H

1 Indoor unit is higher than outdoor unit.

2 Indoor unit is lower than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
Height
difference H
Û
1
Indoor unit is
higher than
outdoor unit.
15m 50ft. - - - 0.933 0.925
10m 33ft. - - 0.981 0.933 0.925
7.5m 25ft. - 1.000 0.981 0.933 0.925
5m 17ft. 1.017 1.000 0.981 0.933 0.925
0m 0ft. 1.017 1.000 0.981 0.933 0.925
Û
2
Indoor unit is
lower than
outdoor unit
-5m -17ft. 1.012 0.995 0.976 0.928 0.920
-7. 5m -25ft. - 0.993 0.974 0.926 0.918
-10m -33ft. - - 0.971 0.923 0.916
-15m -50ft. - - - 0.914 0.906
COOLING
Pipe length (m)
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
Height
difference H
Û
1
Indoor unit is
higher than
outdoor unit.
15m 50ft. - - - 0.877 0.874
10m 33ft. - - 0.956 0.891 0.888
7.5m 25ft. - 0.988 0.960 0.895 0.892
5m 17ft. 1.017 0.992 0.964 0.899 0.895
0m 0ft. 1.025 1.000 0.971 0.906 0.902
Û
2
Indoor unit is
lower than
outdoor unit
-5m -17ft. 1.025 1.000 0.971 0.906 0.902
-7. 5m -25ft. - 1.000 0.971 0.906 0.902
-10m -33ft. - - 0.971 0.906 0.902
-15m -50ft. - - - 0.906 0.902
H H
