The airflow can be switched in 5 steps such as Auto, Quiet, Lo, Me, Hi,
while the indoor fan only runs.
When Fan mode is set at (Auto), it operates on (Me) Fan Speed.< All models >
2. FAN OPERATION
3. COOLING OPERATION (Auto : Cooling)
Switch the airflow [Auto], and the indoor fan will run according to a room temperature,
as shown in Fig. 2 .
On the other hand, if switched in [Hi]〜[Quiet], the indoor fan will run at a constant airflow of [Cooling]
operation modes Quiet, Lo, Me, Hi.

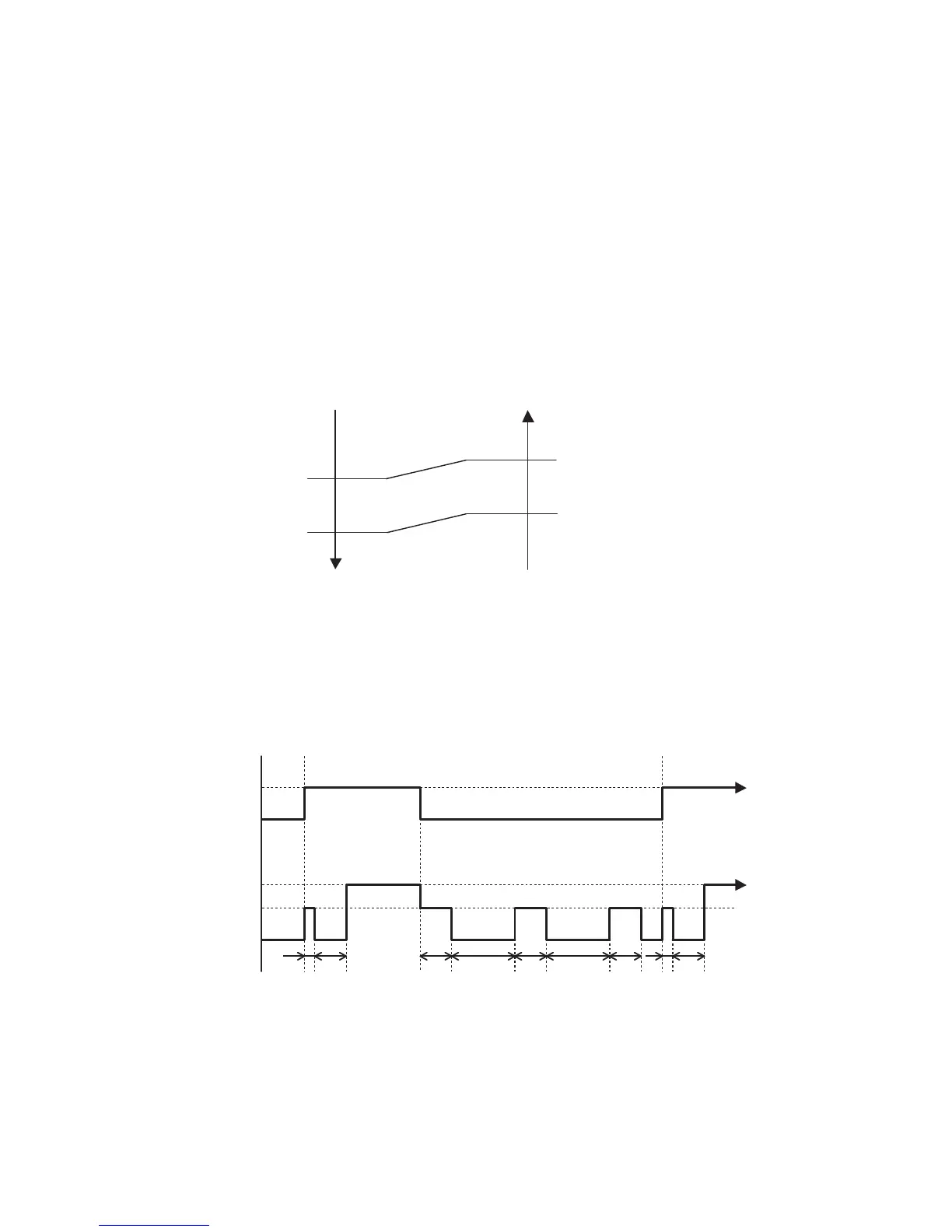

( Fig. 2 : Airflow change - over )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > +4°F
=
+2
°F > TR-Ts
+4
°F > TR-Ts > +2°F
=
TR-Ts > +5
°F
=
+3
°F > TR-Ts
+5
°F > TR-Ts > +3°F
=
Hi
Me
Lo
=
=
=
=
4. DRY OPERATION (Auto : Dry)
During the dry operation, the fan speed setting can not be changed, it operates automatically as shown in Fig. 3 .
Room temperature variation which the room temperature sensor of the indoor unit body has detected.
( Fig. 3 : Indoor fan control )
10 30 60 180 60 180 60 10 30 (sec)
Fan OFF
OFF
< Compressor >
ON
Setting air flow
S-Lo
< Indoor fan air flow mode >
< All models >
< All models >
(+2°C)
(+2°C)
(+1°C)
(+1°C)
(+2.5°C)
(+2.5°C)
(+1.5°C)
(+1.5°C)
01-08
