REPLACEMENT PARTS
03-21

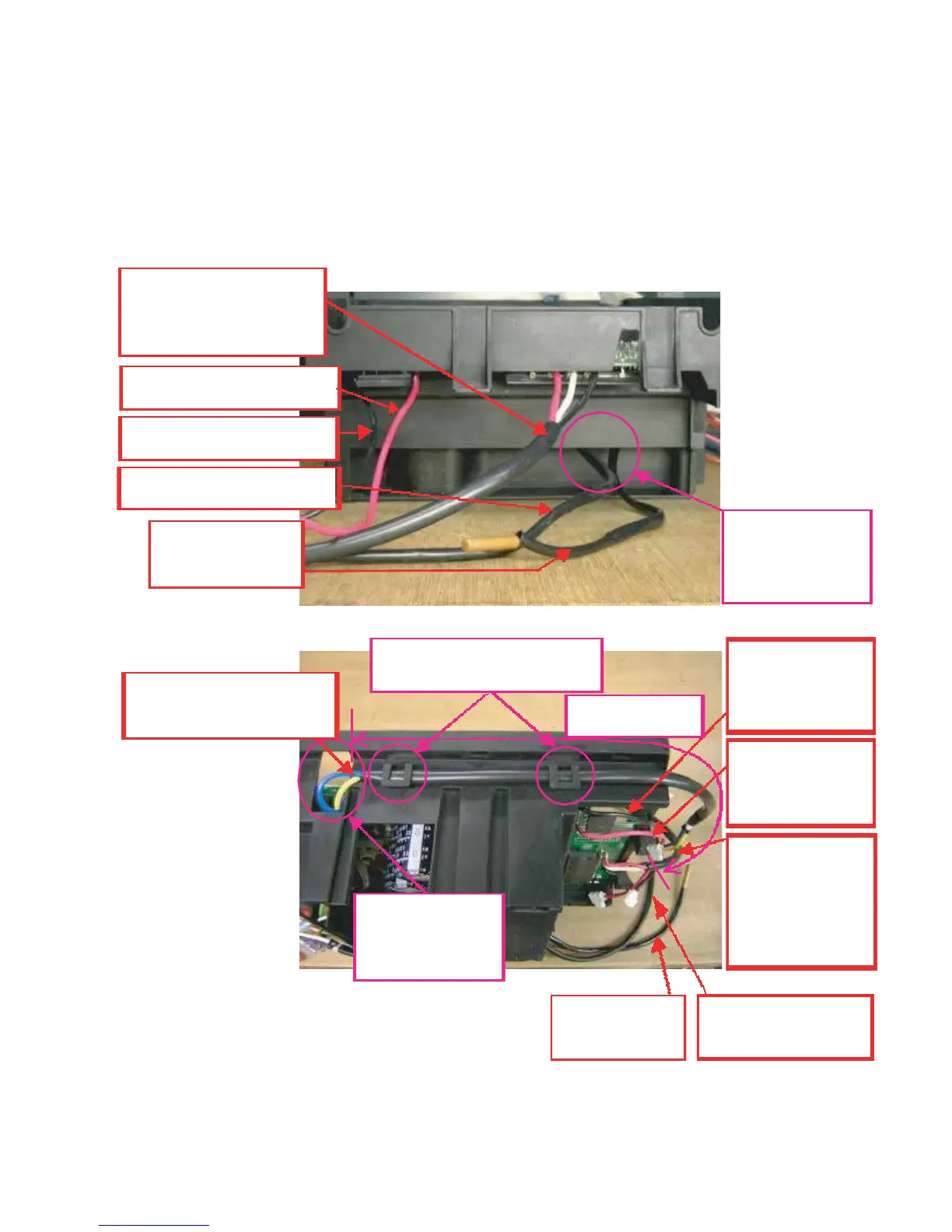

Pull out the wires
from this hole.
Fig.6
W303 BLACK,
W304 WHITE,
W305 RED (MAIN PCB)
WIRE WITH TERMINAL
Fig.7
Fix the wires to these hooks.
Pull out the wires
from this hole.
CN407(MAIN PCB)
WIRE WITH
CONNECTOR
W303 BLACK,
W304 WHITE,
W305 RED
(MAIN PCB)
WIRE WITH
CONNECTOR
W17 BLACK
(MAIN PCB)
WIRE WITH
TERMINAL
HEATSINK
THERMISTOR
CN407(MAIN PCB)
WIRE WITH CONNECTOR
HEATSINK
THERMISTOR
W16 RED (MAIN PCB)
WIRE WITH TERMINAL
W17 BLACK (MAIN PCB)
WIRE WITH TERMINAL
W16 RED
(MAIN PCB)
WIRE WITH
TERMINAL
500mm or more
REGULATIONS
MODEL : AOU24RML
As shown in Fig.6, pull out the wires.
As shown in the Fig.7, pull out the wires and fix them.
W12 YELLOW,W13 BLUE
(MAIN PCB)
WIRE WITH TERMINAL
