REPLACEMENT PARTS
03-22

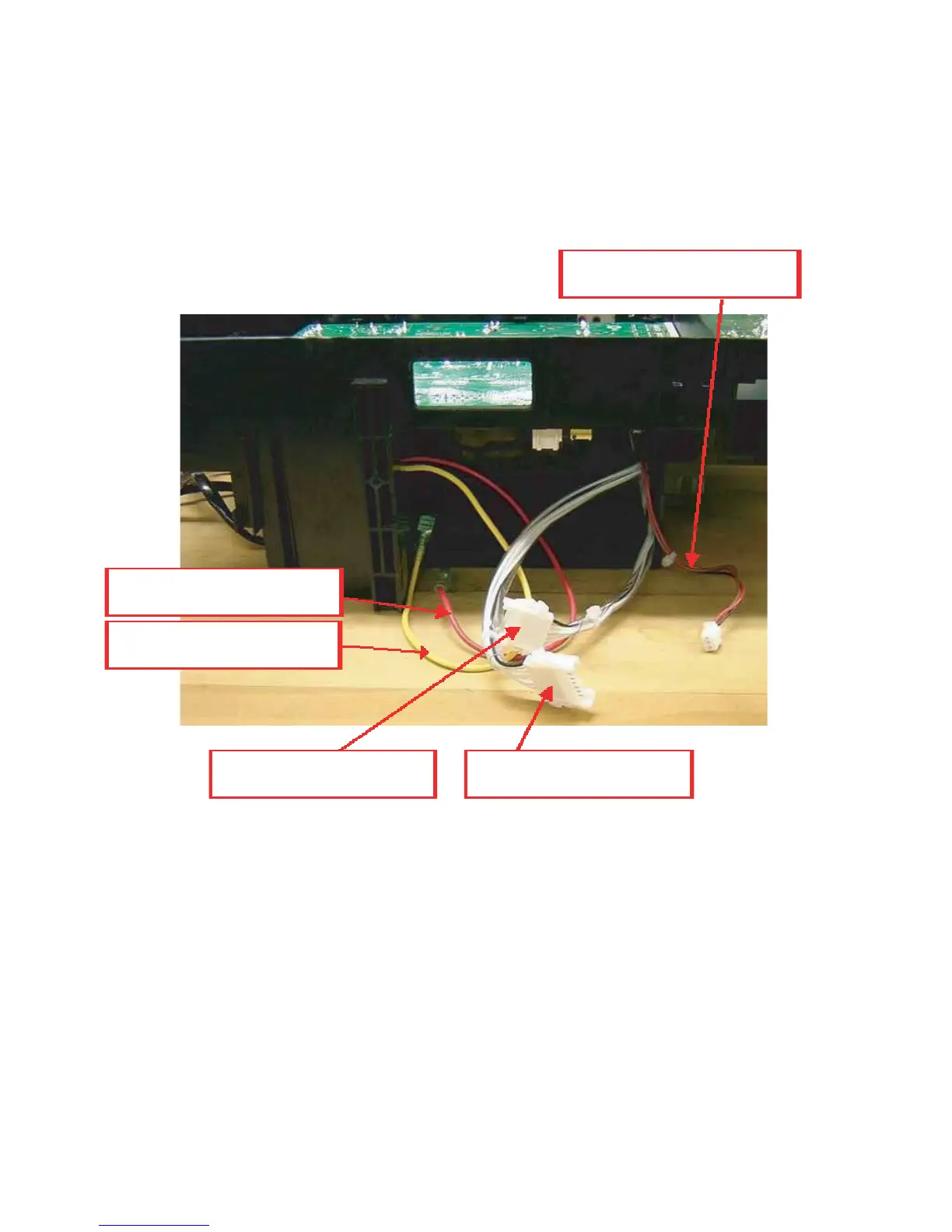

Fig.8
CN1 (MAIN PCB)
WIRE WITH CONNECTOR
W200 RED (MAIN PCB)
WIRE WITH TERMINAL
W201 YELLOW(MAIN PCB)
WIRE WITH TERMINAL
CN39 (MAIN PCB)
WIRE WITH CONNECTOR
CN50 (MAIN PCB)
WIRE WITH CONNECTOR
REGULATIONS
MODEL : AOU24RML
As shown in Fig.8, pull out the wires.
101
103
Table of Contents
Table of Contents
2
Description of each Control Operation
3
Capacity Control
4
Auto Changeover Operation
4
Indoor Fan Control
6
Outdoor Fan Control
10
Louver Control
11
Wall Mounted (AS) Type
11
Compressor Control
13
Timer Operation Control
14
Wireless Remote Controller
14
Electronic Expansion Valve Control
18
Test Operation Control
18
Prevent to Restart for 3 Minutes ( 3 Minutes St )
18
Four-Way Valve Extension Select
18
Auto Restart
18
MANUAL AUTO OPERATION (Indoor Unit Body Operation)
19
Forced Cooling Operation
19
Compressor Preheating
19
FRESH AIR CONTROL (for AR Type)
20
EXTERNAL ELECTRICAL CONTROL (for AR Type)
20
DRAIN PUMP OPERATION (for AU, *AR Type)
20
COIL DRY and CLEAN OPEARTION CONTROL (for as Type)
21
Air Clean Operation
21
ENERGY SAVE FUNCTION (for AR Type)
22
Defrost Operation Control
22
Various Protections
24
Trouble Shooting
26
Error Display
27
Indoor Unit Display
27
Outdoor Unit Display
29
Wired Remote Controller Display
30
Trouble Shooting with Error Code
34
Trouble Shooting with no Error Code
66
Service Parts Information
71
Replacement Parts
76
