REPLACEMENT PARTS
03-16
PROCESS
REGULATION
USED
PARTS

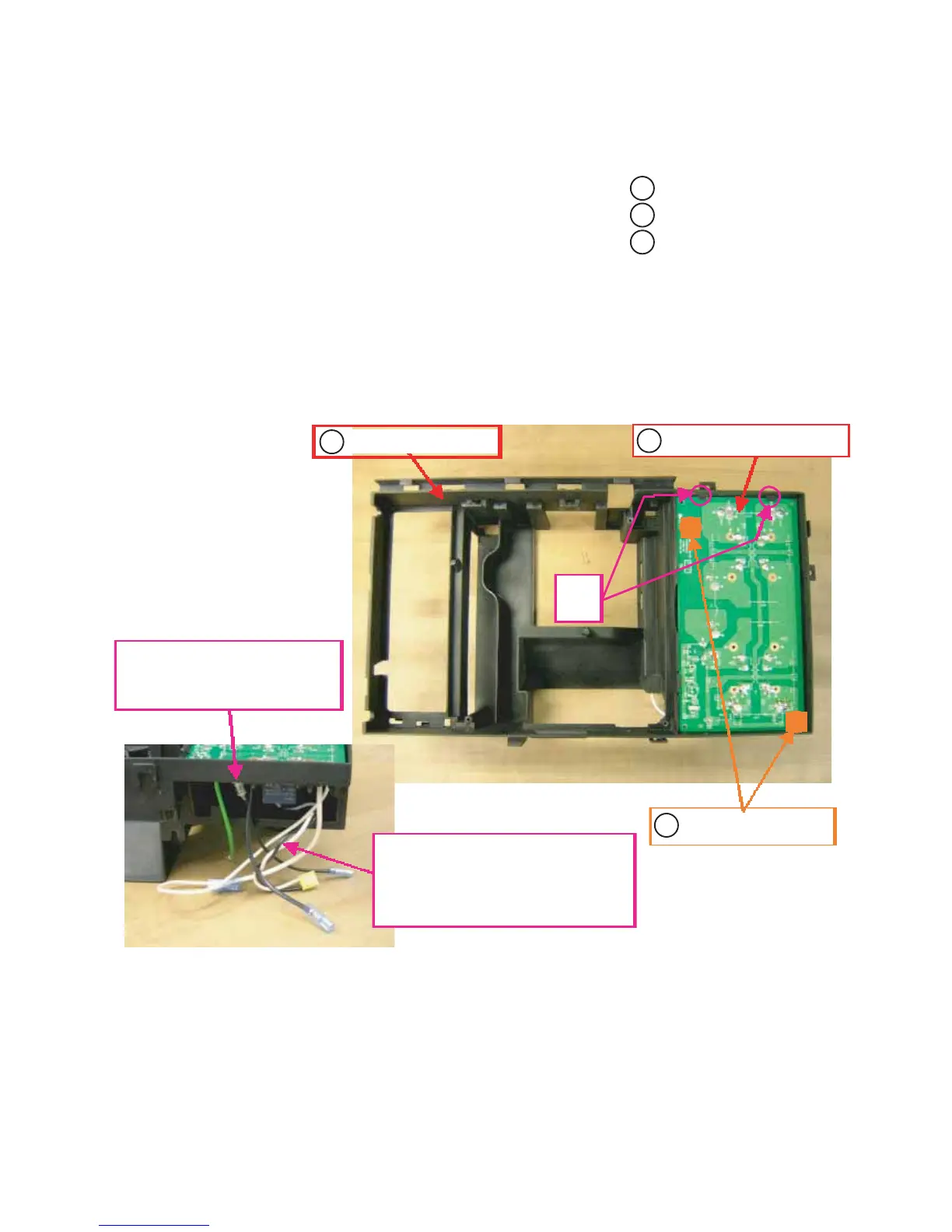

Pull out the wires of PWB ASSY
this way.
FILTER PCB
SCREW, TAPPING
Hook
Fig.1
Fig.2
INVERTER BOX A
Don't sandwich ARRESTER
between PWB and
INVERTER BOX A.
INVERTER BOX A
FILTER PCB
SCREW,TAPPING
Assemble PWB ASSY
(FILTER PCB)
As shown in Fig.1, assemble PWB ASSY to INVERTER BOX A.
As shown in Fig.2, pull out the wires of PWB ASSY.
Don't sandwich ARRESTER (SA100) between PWB and INVERTER BOX A.
1
1
2
2
3
3
MODEL : AOU24RML
