Fujitsu ASU24RLF Service Manual

2015.03.02
9

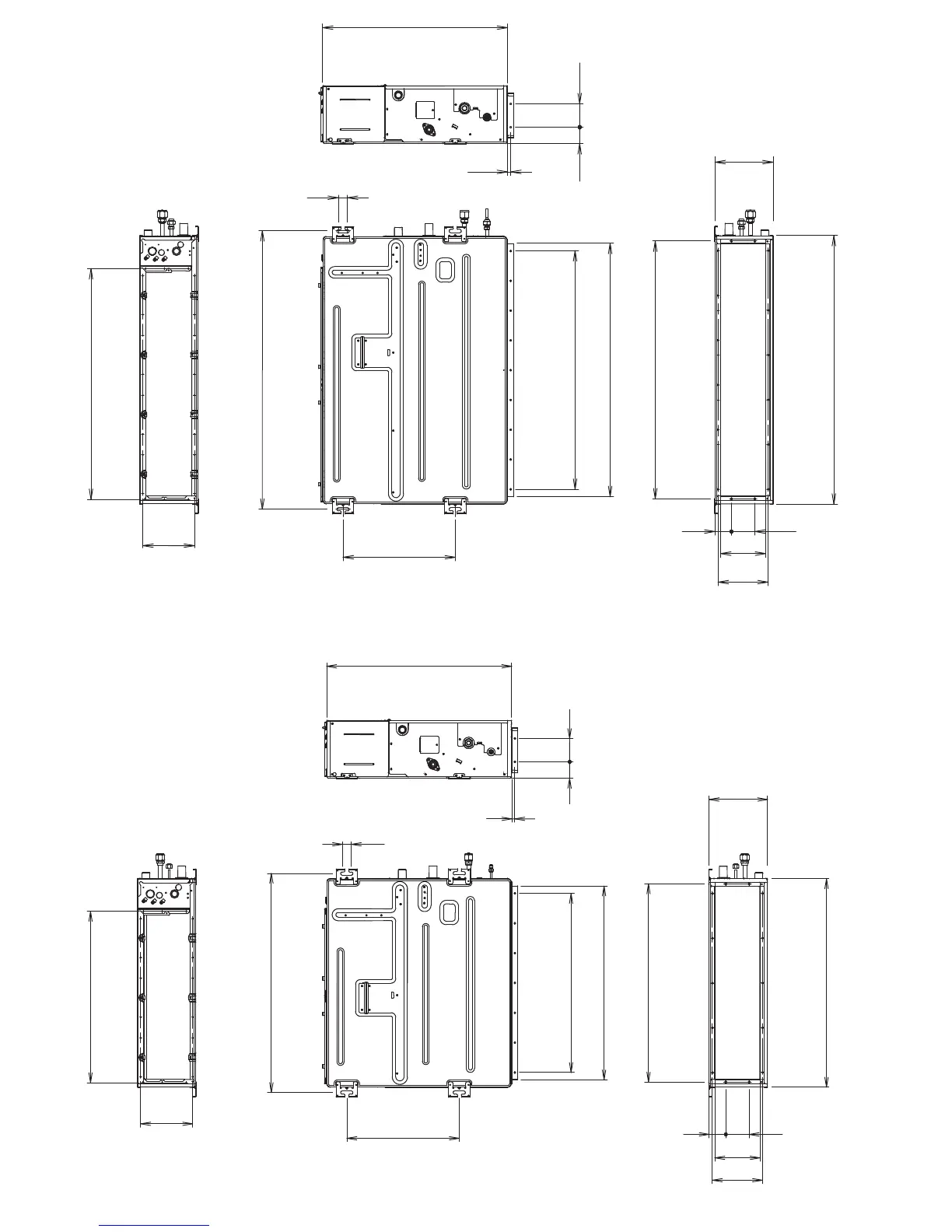

INDOOR UNIT SLIM DUCT ARU7RLF ARU9RLF ARU12RLF (Serial number : R)
22-19/32 inch 574 mm
6-27/32 inch
174 mm
100 mm 600 mm
3-15/16 x 6 = 23-5/8 inch
25-19/32 inch 650 mm
28-29/32 inch 734 mm
1-3/16 inch
30 mm
14-27/32 inch
377 mm
3-1/16 inch 78 mm
2-5/32 inch
55 mm
13/32 inch
10 mm
24-13/32 inch 620 mm
26-5/32 inch 664 mm
27-9/16 inch 700 mm
7-25/32 inch
198 mm
6-5/8 inch
168 mm
5-15/16 inch 151 mm
3-1/16 inch
78 mm
2-5/32 inch
55 mm
INDOOR UNIT SLIM DUCT ARU18RLF (Serial number : R)
30-15/32 inch 774 mm
6-27/32 inch
174 mm
33-15/32 inch 850 mm 36-25/32 inch 934 mm
100 mm 800 mm
3-15/16 x 8 = 31-1/2 inch
1-3/16 inch
30 mm
14-27/32 inch
377 mm
3-1/16 inch 78 mm
2-5/32 inch
55 mm
13/32 inch
10 mm
24-13/32 inch 620 mm
34-1/32 inch 864 mm 35-7/16 inch 900 mm
7-25/32 inch
198 mm
6-5/8 inch
168 mm
5-15/16 inch 151 mm
3-1/16 inch
78 mm
2-5/32 inch
55 mm
