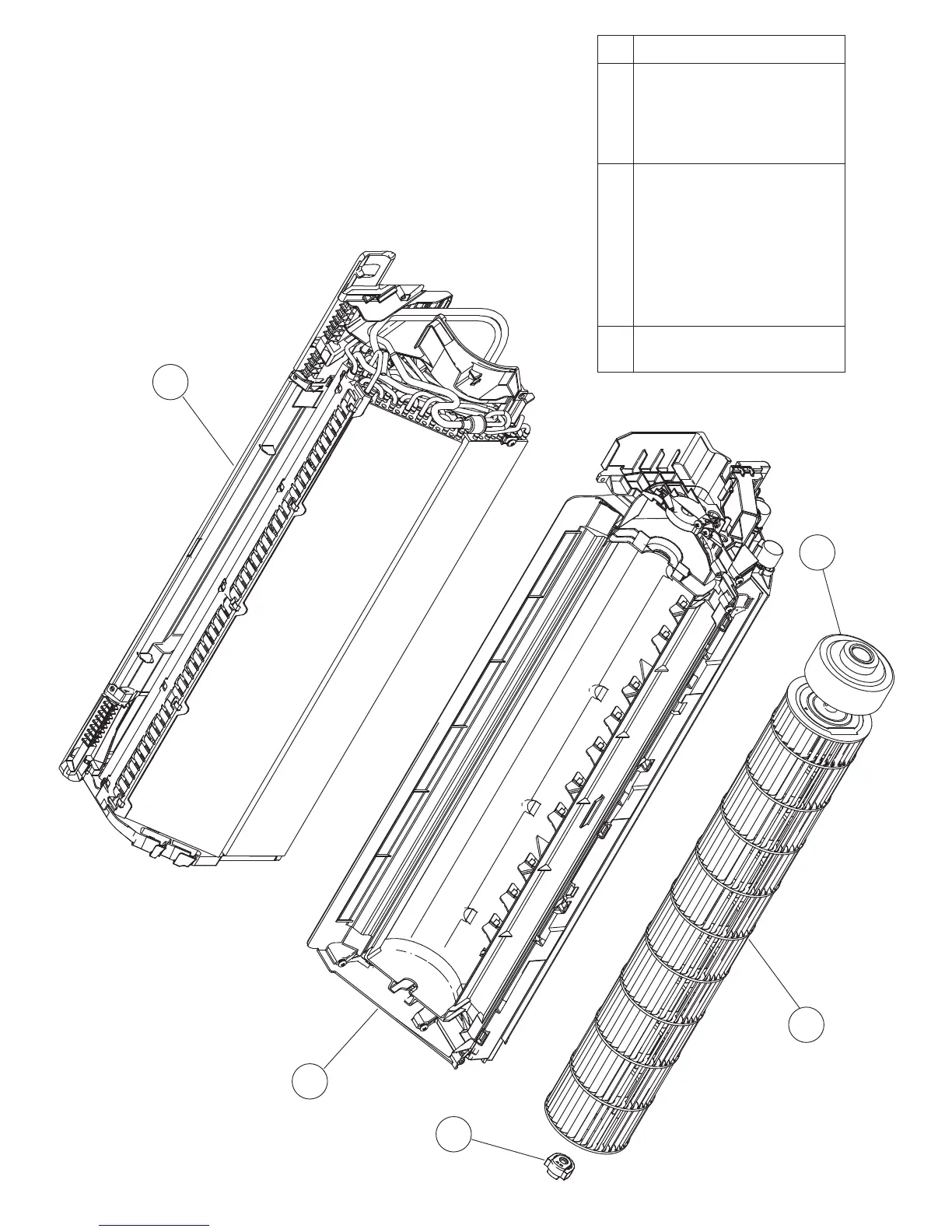

INDOOR UNIT
COMPACT WALL MOUNTED
ASU7RLF1
ASU9RLF1
ASU12RLF1
Evaporator
Fan
Fan Motor 9603269012
Crossflow Fan Assy 9316830004
Bearing C Assy 9306628017
25
22
Evaporator Total Assy 933298909021
Casing Assy 9333009056
23
24
Ref. Description Part number
322015.01.23
25
24
23
21
22
