Fujitsu ASU24RLF - Wiring Diagrams; Compact Cassette Type

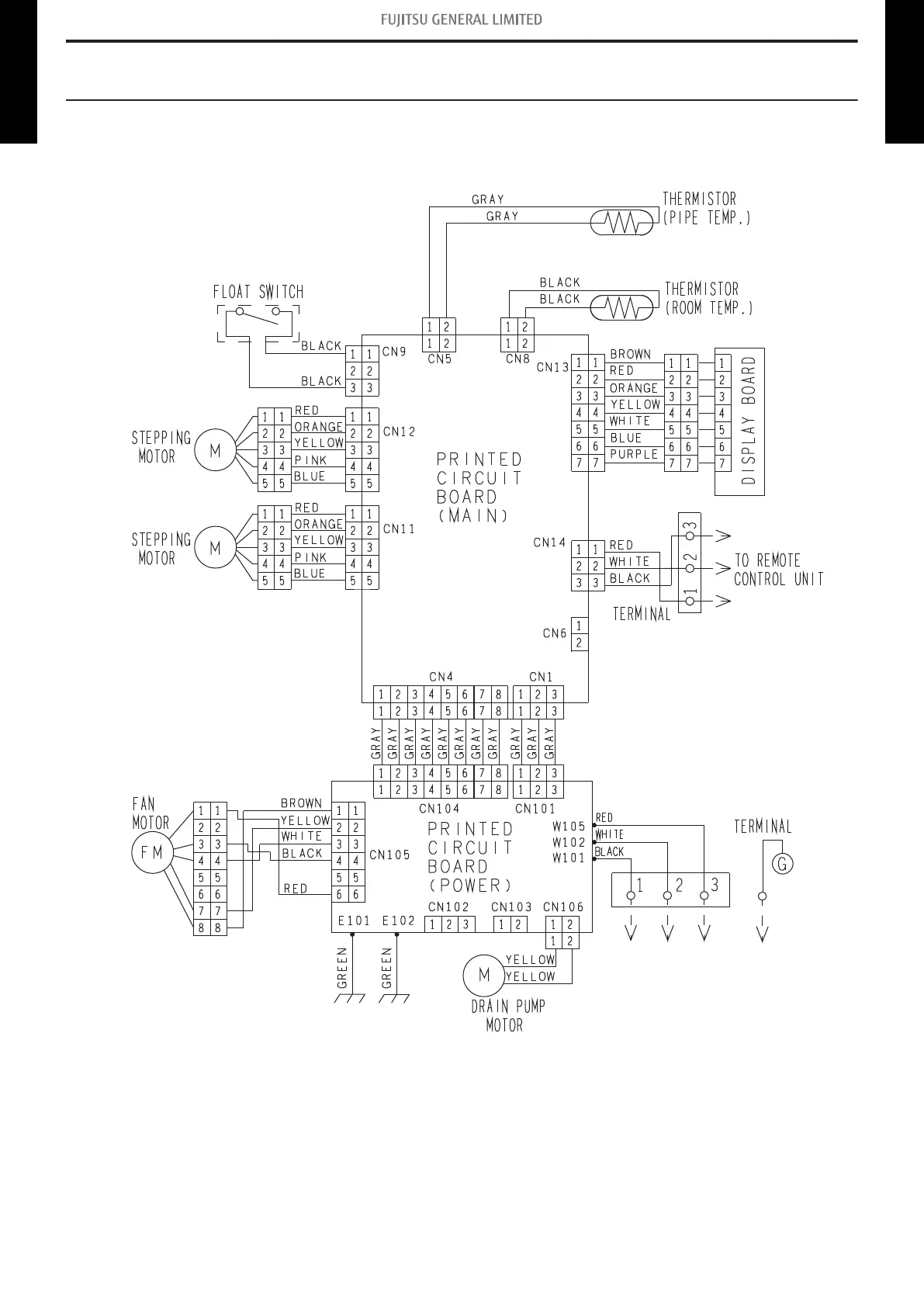

4. Wiring diagrams
4-1. Compact cassette type
¢
Models: AUU7RLF, AUU9RLF, AUU12RLF, and AUU18RLF
- 30 -
4-1. Compact cassette type 4. Wiring diagrams
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
