4-3. Wall mounted type

Models: ASU7RLF1, ASU9RLF1, ASU12RLF1, and ASU15RLF1

- 32 -

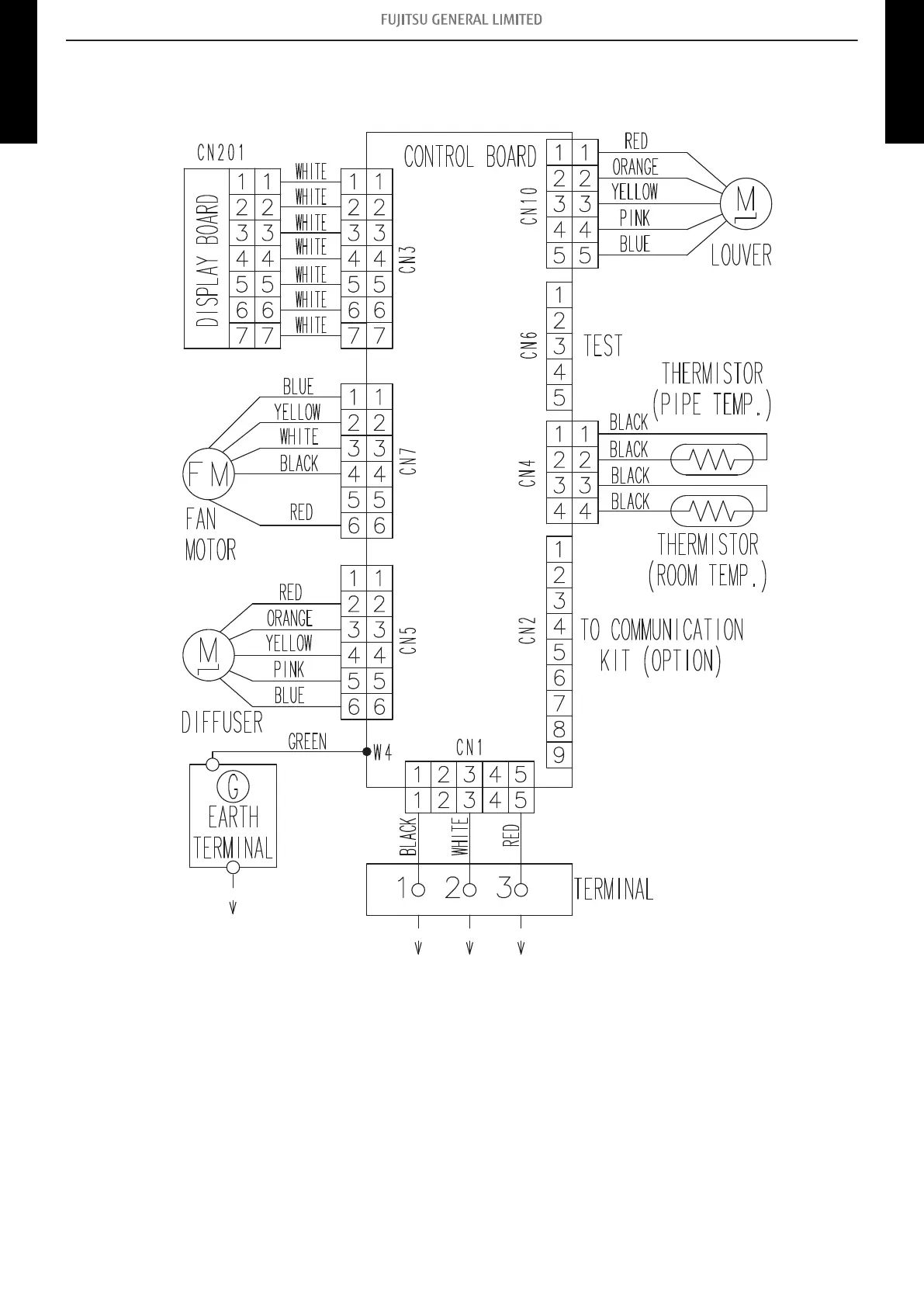

4-3. Wall mounted type 4. Wiring diagrams

MULTI TYPE

2, 3, 4 ROOMS TYPE

MULTI TYPE

2, 3, 4 ROOMS TYPE
