Fujitsu ASU24RLXQ User Manual

2008.02.08 15

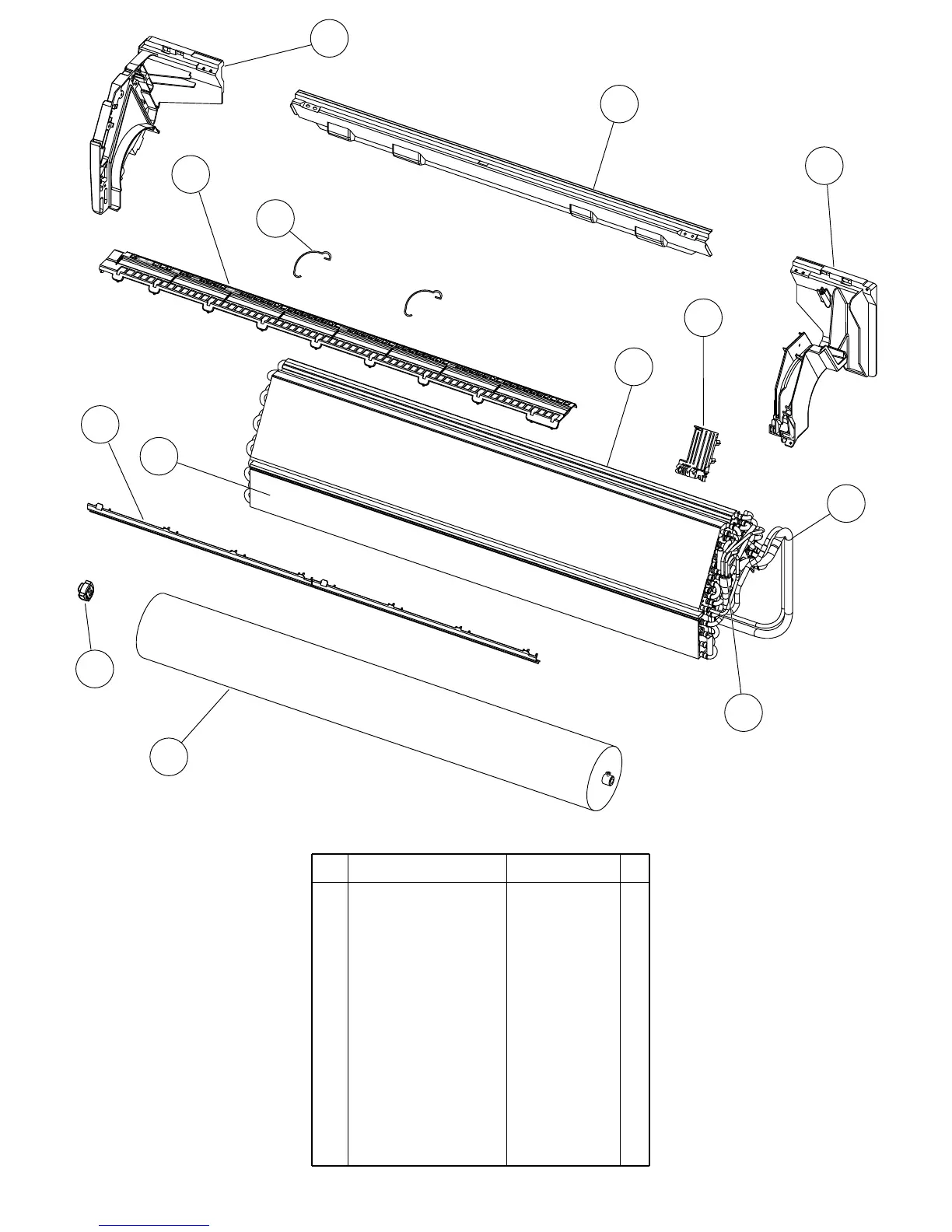

INDOOR UNIT
21
15
19
20
18
13
14
11
12
23
17
16
22
21 Crossflow Fan Assy 9315024015
22 Bearing C Assy 9306628017
23 Air Cleaner Holder 9315876010
11 Evaporator Assy 9315347015
12 Evaporator Assy B 9315349019
13 Connection Pipe Assy 9315355010
14 Distributor Assy 9316794009
15 Water Seal 9315251015
16 Evaporater Holder R 9314994012
17 Evaporater Holder L 9314995019
18 Rear Bracket 9315022011
19 Filter Guide 9315013019
20 Filter Guard 9315411013
Ref. Descriprion Part number

Fujitsu ASU24RLXQ Specifications

General

Brand	Fujitsu
Model	ASU24RLXQ
Category	Air Conditioner
Language	English
