2008.02.08 14

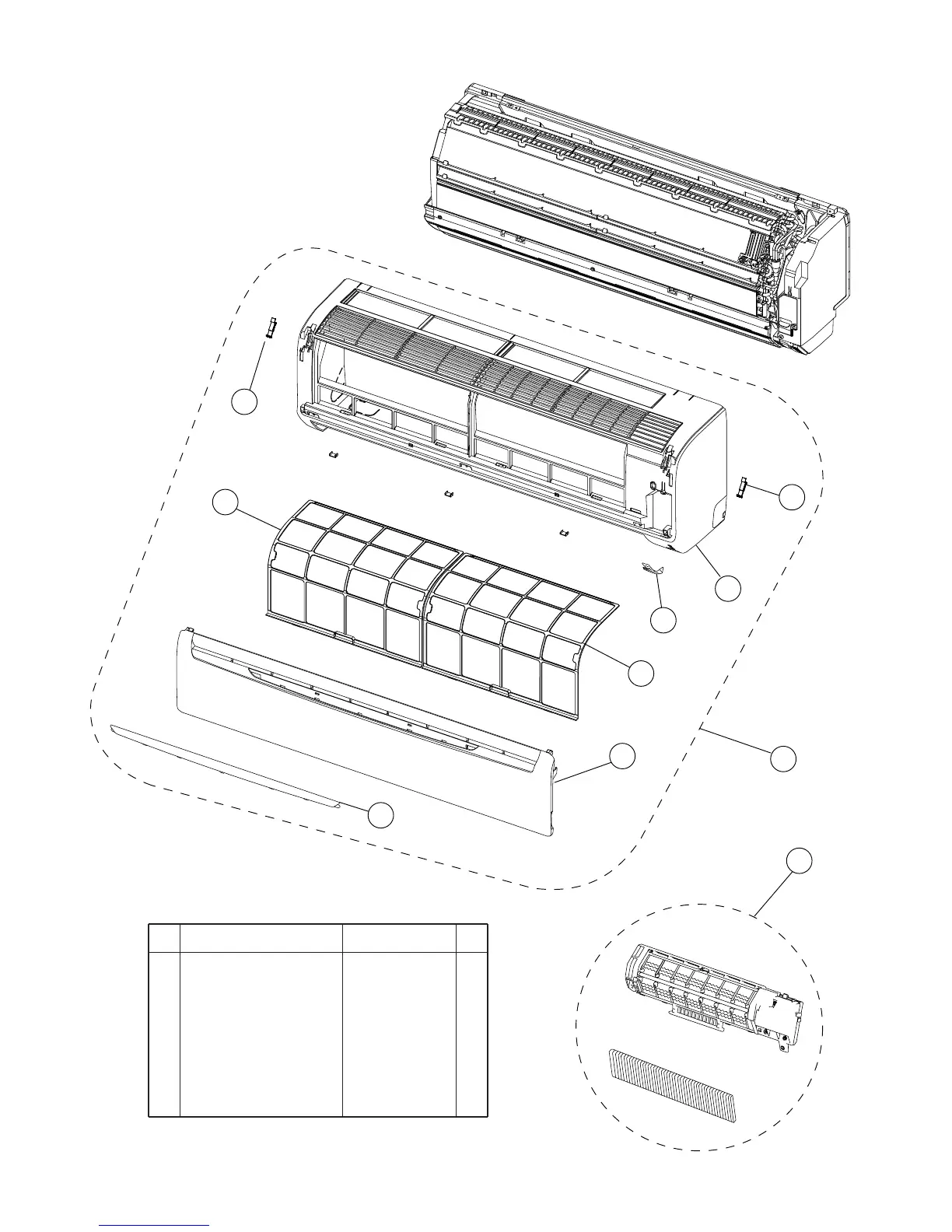

PARTS
INDOOR UNIT
4
3
1
3
4
6
2
5
7
5
2 Front Panel 9314991042
3 Intake Grille Assy 9315336088
4 Air Filter 9315014016
5 Clamper Grille 9306755010
6 Receiver Window 9315010018
7 Air Cleaner Assy 9313148034
1 Front Panel Total Assy 9315335111
Ref. Descriprion Part number
