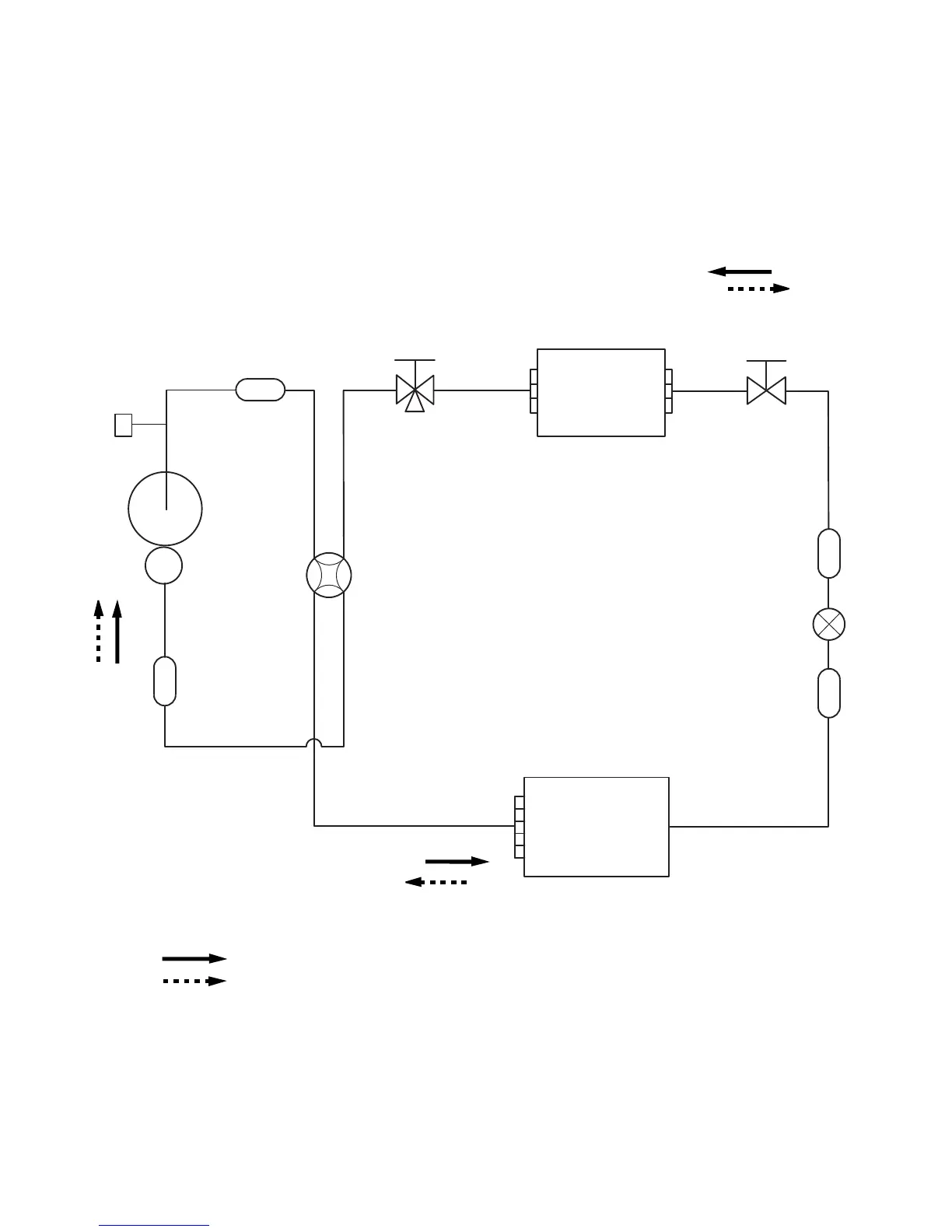

REFRIGERANT SYSTEM DIAGRAM
2-Way valve
Strainer
Strainer
3-Way valve
High
pressure
Switch
Muffler
4-Way valve
Expansion valve
Heat exchanger
(Indoor unit)
Heat exchanger
(Outdoor unit)
Sub
-accumulator
Compressor
Cooling
Refrigerant direction
Heating
Refrigerant pipe diameter
Liquid : 3/8" (9.52 mm)
Gas : 5/8" (15.88 mm)
42008.02.06
