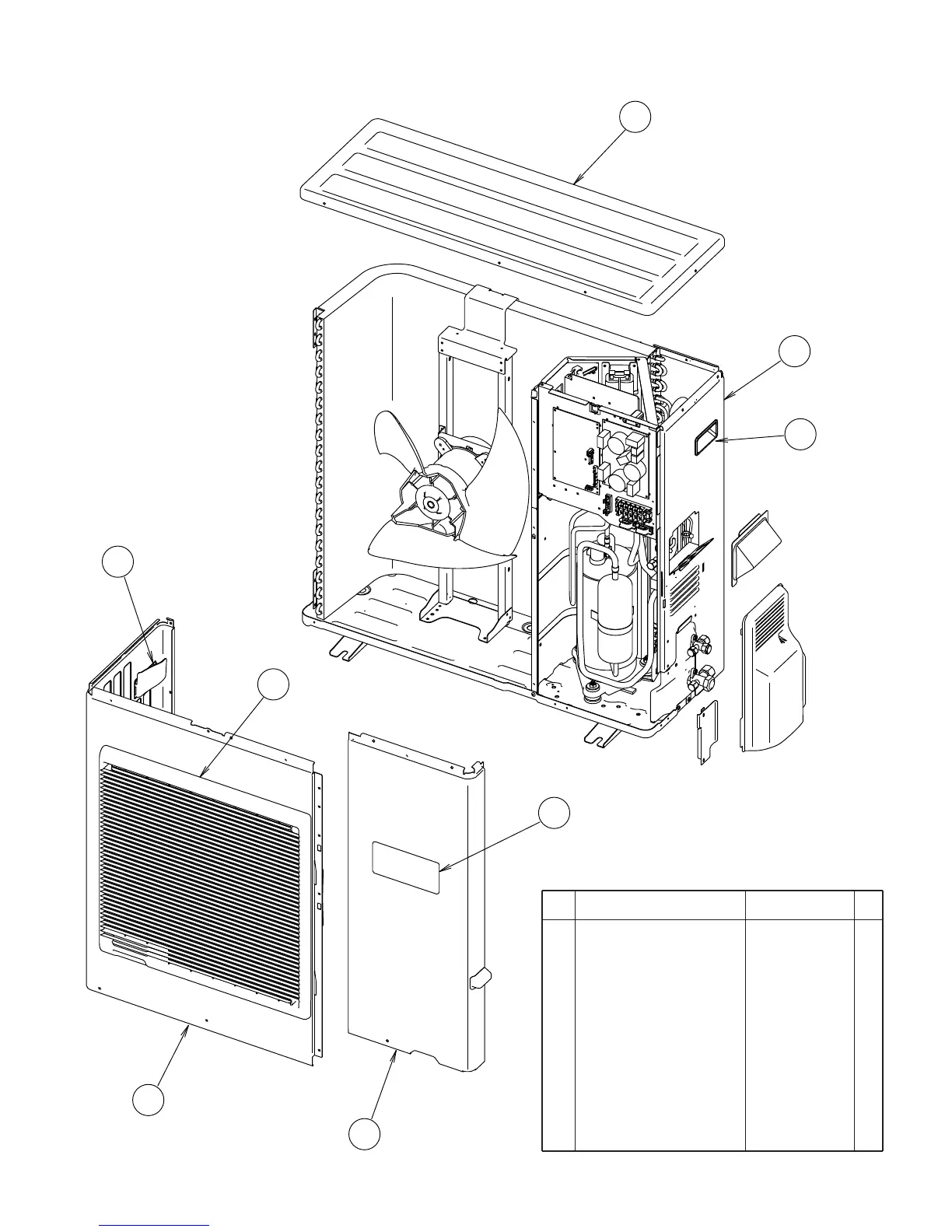

OUTDOOR UNIT
PARTS
2008.02.08
18
5
6
8
7
2
4
3
1
1 Top Panel Sub Assy 9374417032
2 Front Panel 9374094066
3 Fan Guard 9374330010
4 Grip Side 9374173013
6 Grip 9374172016
-- Panel Top Assy 9389406106
-- Protective Net 9375381011
7
Service Panel Sub Assy
9374415052
5 Right Panel 9374095148
8 Emblem Rear 9351355005
