Fujitsu ASU9RLF

-
(
02 - 12
)
-
OUTDOOR UNIT AOU9-15RL OUTDOOR UNIT AOU9-15RL
MODEL

:AOU12RLFW

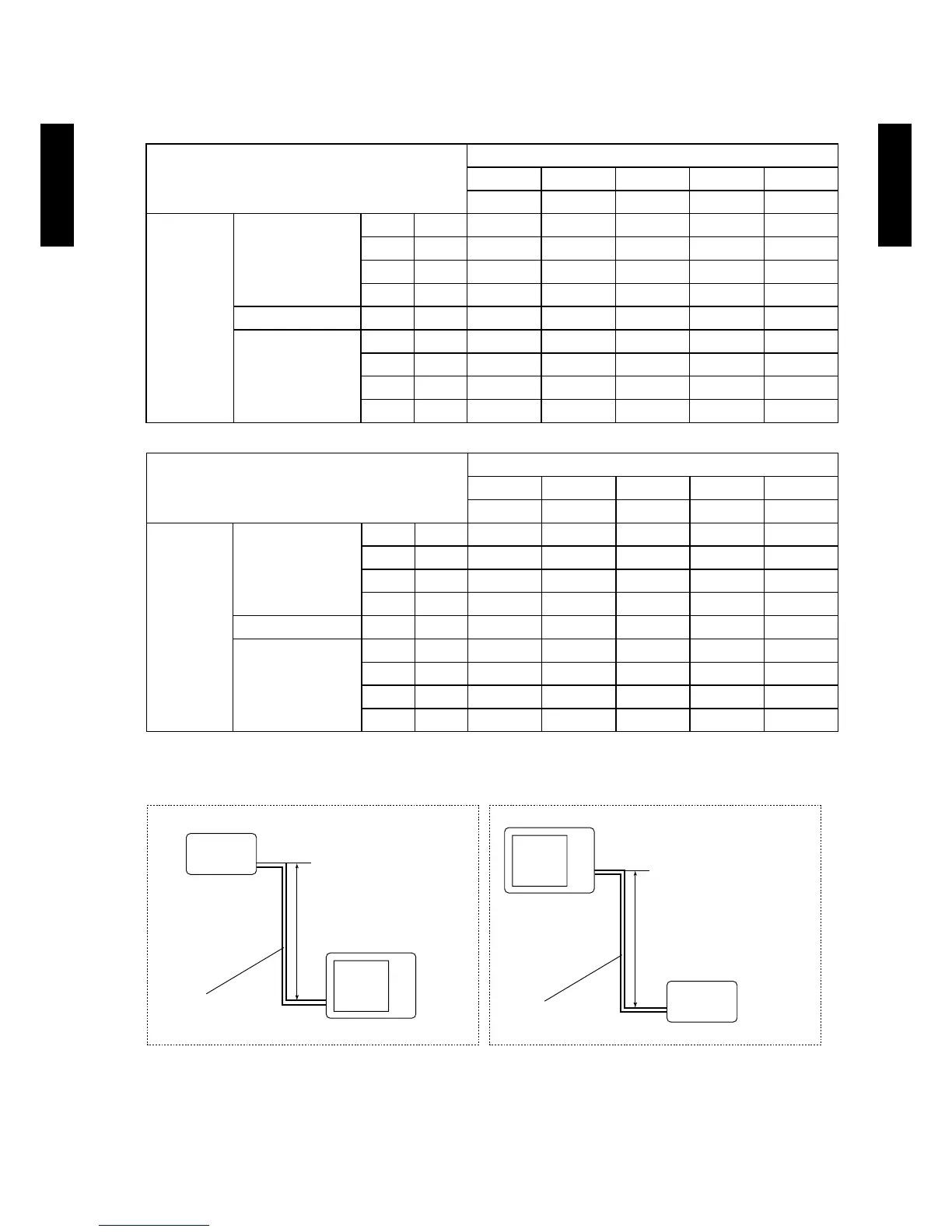

Height difference H
¿
1 Indoor unit is upper than outdoor unit.
¿
2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
COOLING
Pipe length
5m 7.5m 10m 15m 20m
16ft. 25ft. 33ft. 49ft. 66ft.
Height
difference H
¼
1
Indoor unit is upper
than outdoor unit.
15m 49ft. - - - 0.858 0.868
10m 33ft. - - 0.929 0.872 0.882
7.5m 25ft. - 0.960 0.933 0.876 0.885
5m 16ft. 0.992 0.964 0.937 0.879 0.889
0m 0ft. 1.000 0.972 0.944 0.887 0.896
¼
2
Indoor unit is under
than outdoor unit
-5m -16ft. 1.000 0.972 0.944 0.887 0.896
-7.5m -25ft. - 0.972 0.944 0.887 0.896
-10m -33ft. - - 0.944 0.887 0.896
-15m -49ft. - - - 0.887 0.896
HEATING
Pipe length
5m 7.5m 10m 15m 20m
16ft. 25ft. 33ft. 49ft. 66ft.
Height
difference H
¼
1
Indoor unit is upper
than outdoor unit.
15m 49ft. - - - 0.896 0.879
10m 33ft. - - 0.968 0.890 0.879
7.5m 25ft. - 0.994 0.968 0.896 0.879
5m 16ft. 1.000 0.994 0.968 0.896 0.879
0m 0ft. 1.000 0.994 0.968 0.896 0.879
¼
2
Indoor unit is under
than outdoor unit
-5m -16ft. 0.995 0.989 0.963 0.891 0.875
-7.5m -25ft. - 0.987 0.961 0.889 0.873
-10m -33ft. - - 0.959 0.887 0.871
-15m -49ft. - - - 0.878 0.862
HH
