Fujitsu ASU9RLF

-
(
02 - 13
)
-
OUTDOOR UNIT AOU9-15RL OUTDOOR UNIT AOU9-15RL
MODEL

: AOU15RLS

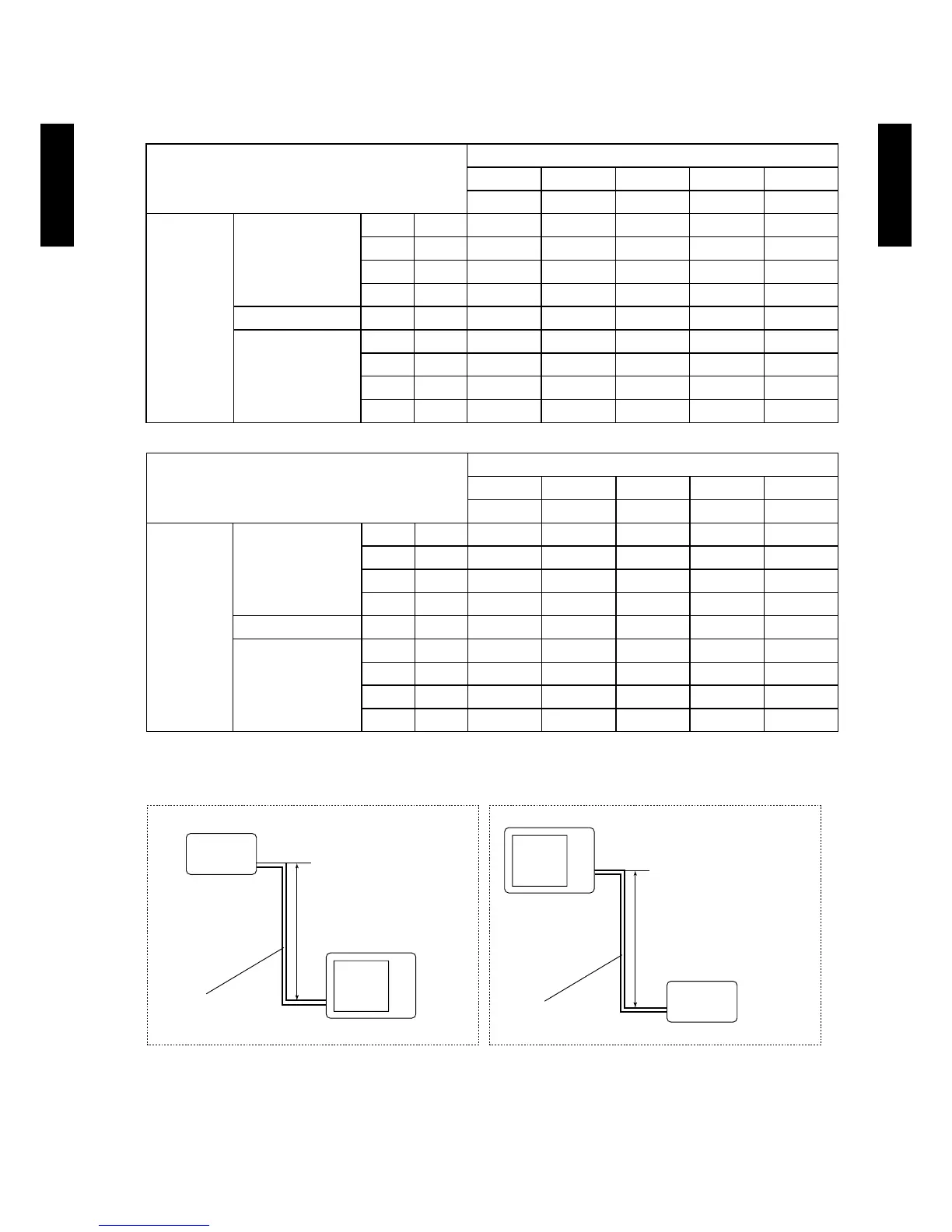

Height difference H
¿
1 Indoor unit is upper than outdoor unit.
¿
2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
COOLING
Pipe length
5m 7.5m 10m 15m 20m
16ft. 25ft. 33ft. 49ft. 66ft.
Height
difference H
¼
1
Indoor unit is upper
than outdoor unit.
15m 49ft. - - - 0.893 0.909
10m 33ft. - - 0.955 0.908 0.924
7.5m 25ft. - 0.975 0.959 0.912 0.928
5m 16ft. 0.992 0.979 0.963 0.916 0.931
0m 0ft. 1.000 0.987 0.970 0.923 0.939
¼
2
Indoor unit is under
than outdoor unit
-5m -16ft. 1.000 0.987 0.970 0.923 0.939
-7.5m -25ft. - 0.987 0.970 0.923 0.939
-10m -33ft. - - 0.970 0.923 0.939
-15m -49ft. - - - 0.923 0.939
HEATING
Pipe length
5m 7.5m 10m 15m 20m
16ft. 25ft. 33ft. 49ft. 66ft.
Height
difference H
¼
1
Indoor unit is upper
than outdoor unit.
15m 49ft. - - - 0.956 0.938
10m 33ft. - - 1.004 0.956 0.938
7.5m 25ft. - 1.013 1.004 0.956 0.938
5m 16ft. 1.000 1.013 1.004 0.956 0.938
0m 0ft. 1.000 1.013 1.004 0.956 0.938
¼
2
Indoor unit is under
than outdoor unit
-5m -16ft. 0.995 1.008 0.999 0.951 0.933
-7.5m -25ft. - 1.005 0.997 0.948 0.931
-10m -33ft. - - 0.994 0.946 0.929
-15m -49ft. - - - 0.937 0.919
HH
