Fujitsu ASU9RLS Service Manual

25/32 (20)
11-23/32 (298)
31-3/32 (790)
21-1/4 (540)
24-13/32 (620)
2-5/8 (67)
2009.03.24 2

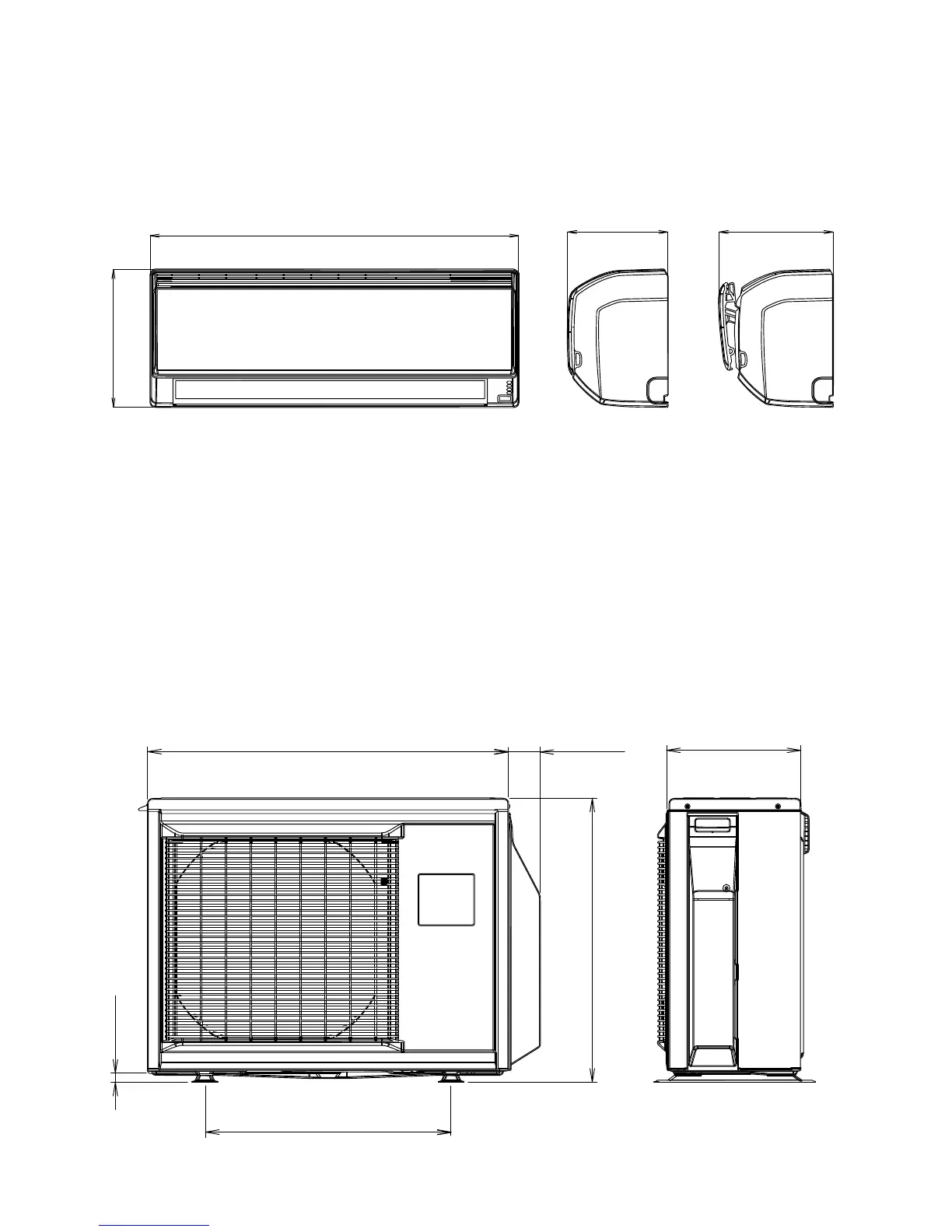

DIMENSIONS
Refrigerant pipe length
Liquid : 16-1/16 inch (408 mm)
Gas : 13-19/32 inch (345 mm)
Drain hose length : 23-5/8 inch (600 mm)
Drain pipe diameter
Inside : 5/8 inch (15.8 mm)
Outside : 1-9/64 (29 mm)
INDOOR UNIT
unit : inch (mm)
OUTDOOR UNIT
11-5/8 (295)
9-5/8 (244)
31-3/32 (790)
8-15/32
(215)

Fujitsu ASU9RLS Specifications

General

Brand	Fujitsu
Model	ASU9RLS
Category	Air Conditioner
Language	English
