Fujitsu ASU9RLS Service Manual

PARTS
1
1
2
9
12
3
15
14
10
13
11
5
6
7
8
4

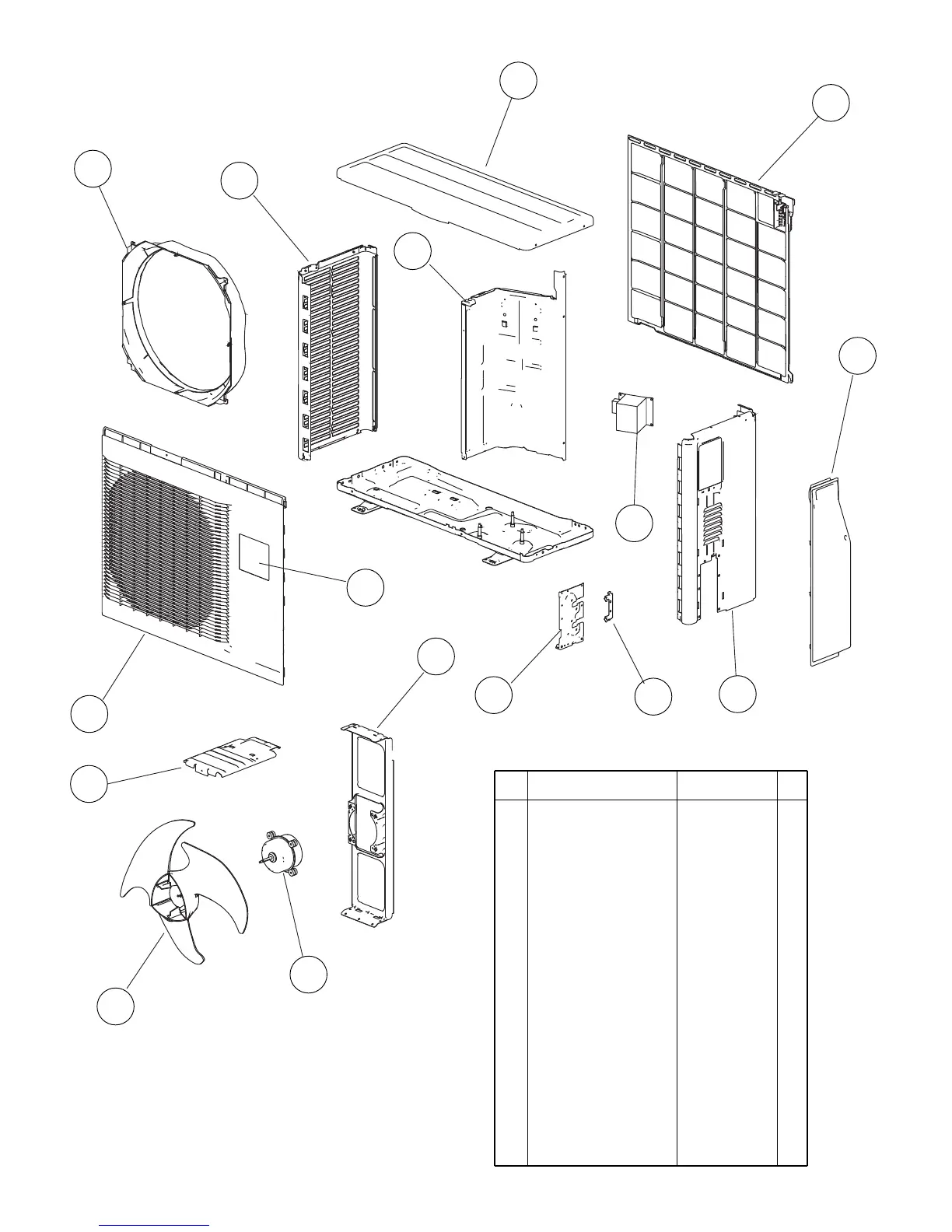

OUTDOOR UNIT
2009.02.18 15
4 Top Panel Assy 9313988081
1 Front Panel Assy 9316046016
5 Protective Net 9331640008
3
6
Cabinet Left Assy 9316042018
2 Emblem 9317903011
Switch Cover 9317692014
8 Valve Bracket 9331649001
7 Cabinet Right Assy 9316044036
9 Valve Bracket Cover 9331683005
11 Motor Bracket 9315894014
10 Propeller Fan 9313808013
12 REM Plate Assy 9331278010
14 Reactor Assy 9900343019
15 Separator Assy 9331722018
-- Drain Pipe 9303029022
13 Fan Motor 9602724017
Ref. Description Part number

Fujitsu ASU9RLS Specifications
